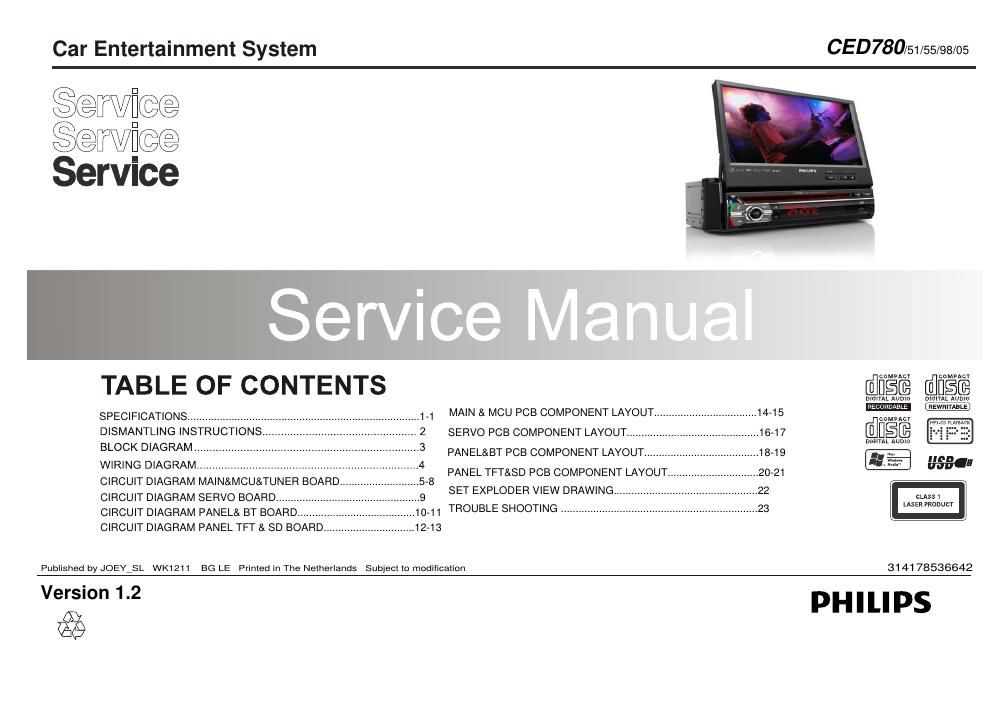

Philips ced 780 service manual

Page 2

SPECIFICATIONS

General

Powersupply I2VDC(IIV- I6V),
negative ground

Fuse I 5 A

Suitable speaker 4 - 8 Q

impedance

Maximum power 50 W x 4 channels

output

Continuous power 24 W x 4 channels

output (4 0 I0% TH.D.)

Pre-Amp output 4.0 V ( CD play mode;

voltage I kHz, 0 dB, I 0 k0
load)

Subwoofer output
voltage

4.0 V (CD play mode,
6/ Hz, OdB, I0 k0

load)
Aux-in level 2 500 mV
Dimensions (Wx H I78 x 50 x 2 I0 mm
x D)
Weight (main unit) 3.I kg
Disc player
System DVD / CD audio I
MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75 dB

Total harmonic
distortion

Less than I%

Channel separation >55dB
Video signal format NTSC only
Video output I +/- 0.2V

Radio

Frequency range - FM

87.5 - I08.0 MHz

(50kHz per step)
Frequency range - 522 - I620 KHz
AM(M W) (9kHz per step)
Usable sensitivity - FM 5 uV
Usable sensitivity - AM 25 uV

(MW)

LCD

Screen size 7.0 inches

Display resolution 800 x 480 dots

Contrast ratio 500

Brightness 450 cdlm2

Bluetooth

Communication Bluetooth Standard version

system 2.0

Output Bluetooth Standard Power
Class 2

Maximum Line of sight approx. 8m

communication

range

Frequency band 2.4 GHz band (2.4000 GHz
- 2.4835 GHz)

Compatible HandseFree Profile (HFP)

Bluetooth Handset Profile (HSP)

profiles Advanced Audio
Distribution Profile (AZDP)
Audio Video Remote
Control Profile (AVRCP)

Supported

codecs
Receive SBC (Sub Band Codec)
Transmit SBC (Sub Band Codec)

Playability information

Compatible USB devices:

- USB flash memory (USB 2.0 or USBM)
- USB flash players (USB 20 or USBM)

- Memory cards (SD / MMC/ SDHC)

Supported USB formats:

' USB or memory file format: FATl 6, FAT32

- MP3 bit rate (data rate) 32-320 Kbps and
variable bit rate

- WMA v9 or earlier

- Directory nesting up to a maximum of 8
levels

- Number of albums/folders: maximum 99

- Number oftracks/titles: maXimum 999

' |D3 tag v2.0 or later

- File name in Unicode UTF8 (maXimum
length: I28 bytes)

Supported MP3 disc format:

- ISO9ééO,loliet

- Maximum title number 512 (depending on
file name length)

- Maximum album number: 255

- Supported sampling frequencies: 32 kHz,
44. IkHz, 48 kHz

- Supported Biterates: 327320 Kbps and
variable bit rate

Supported video formats:
The following video formats(containers) are supported on current product:

MPEG1 (.avi, .mpg, *.dat)
MPEG4 (simple profile) (*.avi)
DIVX4 (*.avi)
DIVX5 (.avi)
XVID (.avi)
NOTE:
To ensure smooth playback, the image size should not be higher than 640X480,
frame rate should not be higher than 20 fps and data rate should not be
higher than 500kbps in the encoded video.

0000.

Unsupported video formats:

The following video formats(containers) cannot be supported on current product:
M-JPEG (*.avi, .mov)

MPEG4 (*.mov, .wmv, *.mp4. 392, *.asf, *.3gp)
H.263 (.avi, .m0v, .flv. *.39p)

H.264 (.mp4, .mov)

WMV3 (*.wmv, *.avi)

WMV2 (*.wmv)

RealVideo4 (*.rmvb, *.rm)

RealVideoS (.rm)

RealVideoZ (.ram)

MS Video (.avi)

NOTE:
For format(c0ntainer) not listed above, it is not guaranteed to work.
Please avoid from using with the product.
