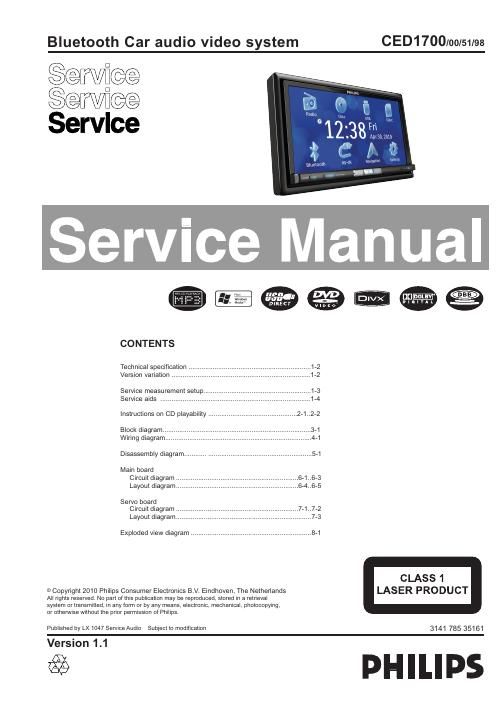

Page 1

Bluetooth Car audio video system CED1700/00/51/98

Service
Service
SerVIce

CONTENTS
Technical specification .12
Version variation ...... .1-2

Service measurement setup .......................................................... 1-3
Service aids ................................................................................. 1-4
Instructions on CD playability ................................................ 2-1..2-2

Block diagram.
Wiring diagram

Disassembly diagram

Main board
Circuit diagram
Layout diagram

Servo board
Circuit diagram
Layout diagram

Exploded view diagram ................................................................. 8-1

CLASS 1

©Copyright 2010 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or othenNise without the prior permission of Philips.

Published by LX 1047 Service Audio Subject to modification 3141 785 35161

Version 1.1

@ PHILIPS

Page 2

TECHNICAL SPECIFICATION

Picture/Display

- Display screen type: LCD TFT

- Diagonal screen size: 7"

- Resolution: 800(W) x 480(H) x 3(RGB)
- Aspect ratio: Widescreen

' Brightness: 160 cd/m1

- Contrast ratio (typical): 400

' Eflectlve viewing area: 157.2 X 313me
- Pixel pitch: 0.1965(W) x 0.1715(H)

- Key illumination: Blue

Video Playback

' Playback Media: DVD. DVD-R/-RW, DVD+R/
+RW, DVD+RW. Video CD. SVCD, Picture CD

- Disc Playback Modes: A-B Repeat, Chapter repeat,
Disc Menu. Fast Backward. Fast Forward, OSD.
PBC, Repeat Resume Playback from Stop, Search
(award/reverse, Slow Backward, Slow Forward,
Still Picture. Zoom

- video disc playback system: NTSC. PAL

Audio Playback

' Playback Media: CD. CD-R. CD-RW, MP3-CD.
WMA, WMA-CD

- Compression rormat: Dolby Digital, MP3, wMA,
WMA9

' Disc Playback Modes: Fast Forward/Backward.
Introscan. Next/Previous Album Search. Next/
Previous Track Search

- ID} Tag support: Song title, artist album

' MP3 bit rates: 31-310kbps and variable bit rate

' USB Direct / SD Modes: Play/Pause. Fast
Backward/Fast Forward, Previous/Next. Repeat.
Shuffle

TunerlReception/Transmission

' Tuner Bands: AM. FM Stereo

- Auto digital tuning

- Tuner Enhancements: Auto search and store
- No. oi preset stations: 18(FM), 12(AM)

VERSION VARIATION

Sound

- Equalizer: 3-bands

- Equalizer settings: Classic, Jazz. Pop, Rock, Flat,
Optimal, Techno, User defined

' Sound Enhancement: Dynamic Bass Boost

- Output power (MAX): MOSFET sow Channels

- Output power (RMS): 24WX4 channels (4 ohms,
10% T.H.D.)

Connectivity

' USB: USB 1.0 Host

' Memory card: SD. SDHC

- Video Output - Analog: Composite video out

- Preamp output: 2 pairs RCA(L/R)

- Sub-woofer preamp output: x1 (With gain control)

- AV input: Composite (CVBS) x1

' Bluetooth profiles: AZDP. AVRCP, Handsfree

- Bluetooth version: 2.0

- Navigation ready: Yes (Navigation box sold
separately)

- Parking camera input: Yes (Switched on
automatically in car reverse)

Security/Anti-thiel
' Display blackout: 10/20 sec selectable

Accessories

- Remote control: Slim remote with battery

' User Manual: Brazilian Portuguese. Spanish.
Simplified Chinese, Traditional Chinese

- Quick start guide: English. Traditional Chinese.
Simplified Chinese, Brazilian Portuguese. Spanish

Power
- Power supply: 12v DC

Dimensions

' Product dimensions (W x H X D):
178 X 100 X 185.4 mm

' Chassis: 2 Din

Type Nersions: CED1700
Board in used: Sen/ice policy I05 I00 [51 I58 I61 98
SERVO BOARD C/M C C/M
MAIN BOARD C/M C C/M
Type Nersions: CED1700
Features eature diffrence /05 I12 /51 ISB /6l /98
RDS
VOLTAGE SELECTOR
ECO STANDBY - DARK

TIPS : C -- Component Lever Repair.
M -- Module Lever Repair
«I -- Used
