Extracted text from philips ce 150 service manual (Ocr-read)

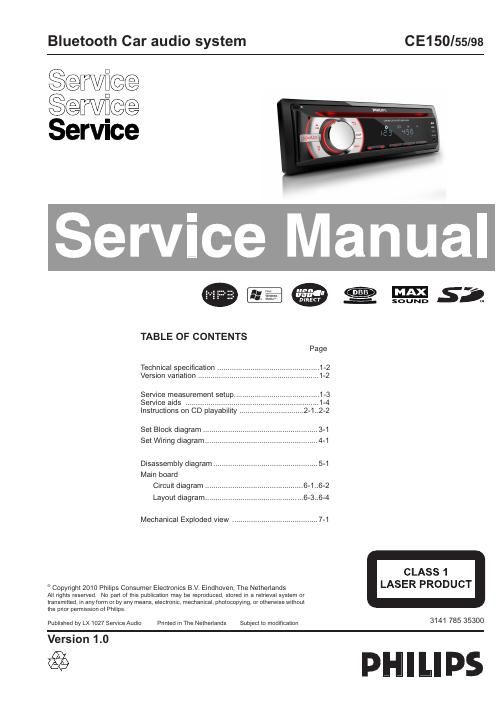

Page 1
TECHNICAL SPECIFICATION Dis play -Type: Hig h contrast B/W LCD ( 8 chara cters) -Key illuminati on:Red Aud ioPlayback -Playback Media : USB f lash dri ve, SD Card -Compressionformat:MP 3,WMA -ID3 Tagsupport:Song title, artist,albu m -MP 3bitrates:32-320kbpsandvariablebitrate -USB Dire ct/ SD Modes : Play /Pause, Fast Bac kw ard/Fast Forward,Previous/Nex t,Repea t, Shuffle Tune r/Recepti on/Transm ission -TunerBa nds: AM, FMStereo -Au todigi taltunin g -TunerEnhanceme nts: Auto search andsto re -No.ofpresetstations:18(FM),12(AM) Sou nd -Equali zer: 2-bands -Equali zer sett ings: Clas sic,Jazz, Pop,Rock, Flat, Op timal, Techno, U ser defined -Sound Enhancement:DynamicBa ss Bo ost,MAX Soun d -Outputpower(MAX):50Wx4channels -Outputpower(RMS ):22Wx4 channels(4ohms, 10%T.H.D. ) Conn ectivity -USB: USB 2.0 H ost -Memor y card: SD, SDHC -MP3 -Link:ForportableMP3 musicplayback -Microphone:Built-inmicrophone -Prea mpoutput:2pair sRCA( L/R) Security/Anti-th ief -Front panel: De tachable -Displa y blackout: 10/20 sec sele ctable Ac cessorie s -Remote contr ol:Slim remotewit hbatt ery -UserManua l:English,Spanish -Quick s tart guide: English, La tamSpanish Power-Powersupply:12VDC Dimensi ons -Product dime nsions (WxHxD): 188x58x201mm -Chas sis: 1 Din - 1 - 2 Type /Versions : Feature s Board inused : CE150 Service policy TUNER BOARD MAIN BOARD *TIPS : C -- Component Lever Repai r. M -- Module Lever Repair√ -- Used /55 /12 /55 89/ 16/ 85/ Feature di ffrence RDS & DAB VO LTAGE SELEC TOR ECO S TANDB Y - DARK Type /Versions : CE150 /55 /12 /55 89/ 16/ 85/ VERSION VARIATION 39/ 39/ M/C M/C
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
