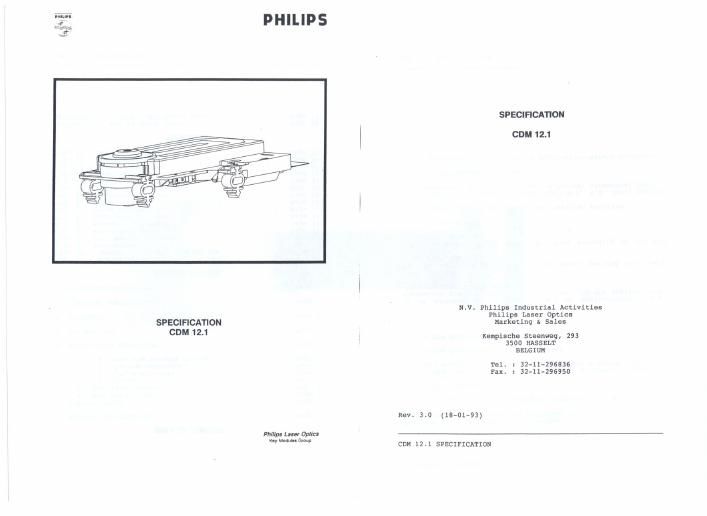

Philips cdm 12 1 service manual
This is the 24 pages manual for philips cdm 12 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips cdm 12 1 service manual (Ocr-read)
Page 1
TABLEOFCONTENTS 1. GENERAL INFORMATION 2. SPECIFICATION A. Test conditions B. Specified values 1. General 2. Opto-electrical 3. Electro-mechanical 4. Absolute maximumratings 3. APPLICATION CONDITIONS 4. RELIABILITY 5. STANDARDS 6. HANDLING INSTRUCTIONS 7. VERSIONS/CODENUMBERS LISTOFFIGURES Fig. la:Measuring circuitdiagram (part1) Fig. 1b:Measuring circuitdiagram (part2) Fig. 2:Recommended clamper Fig. 3:Recommended suspension Fig. 4:Electrical data Fig. 5:Mechanical drawing Fig. 6:Lightpath Fig. 7:Focus S-curve Fig. 8:Radial curve Fig. 9:Temperature factor Fig. 10:Focus characteristics Fig. 11:Radial characteristics Fig. 12:Turntable Fig. 13:CDM 12.1 +wires Fig. 14:Ornamental plate Fig. 15:Mechanical datafoil APPENDICES Page 1 Page 2 Page 2 Page 2 Page 2 Page 3 Page 5 Page 6 Page 7 Page 7 Page 8 Page 9 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 1. GENERAL INFORMATION The CDM 12.1 isamodular CD-mechanism, usinga2-stage, 3 spot system. Itcontains thefollowing modules - a lightpen withholographic lightpath - the actuator - the disc motor :a DC-motor withaturntable prepared for magnetical clamping,equippedwithaspring cone - the frame withthesledge drive - the foil with thelasersupply It is suitable forawide variety ofapplications :e.g. standalone players(miniandfull size), CD-RCR applications, and even home CD-ROM systems. To cope with thisbroad application range,theCDM 12.1 needs to be flexible : - suitable for12and 8cm. discs according tothe RED BOOK standard - limited size - applicable inhorizontal andvertical position - optional accessories areavailable, e.g.tray loading mechanism, suspension, clampingdevice,ornamental plate - wide temperature range - prepared foravariety ofapprobation/safety standards APPENDIX 1 APPENDIX 2PPN 13Motor Data RF310T 11400Motor Data Page 26 Page 27 CDM 12.1 SPECIFICATION CDM 12.1 SPECIFICATION Page1
Page 2
2.SPECIFICATION A. Test conditions IParilEter I~I -. I /lax. G;] Arrilient te""erature 20 25 30 °C Relative humidity 45 75 % A Ir pressure 86 106 kPa Setting anglehorizontal -5 0 5 0 Setting anglevertical -5 0 5 0 IParameter I CodenuntJer I Notes I Cla""lng device I 310414710030 I See fig. 2 Testdisc I 7104 09924981 I S8C444 B.Specified values 1. General IParameter I Hin. IHOII. I /lax.I Unit I Hotes I Connect ions Seefig. 4for pinning See fig.15for mechanica 1data Current consu""tion 300 mA Inplay condition horizonta I oifl'ens ions Seefio. 5 Hin. read-out diameter 46.8 47.4 48 nm Hax. read-out diameter 117 117.5 118 nm Weight 90 gr Cla""ing force 1.35 N 2.Opto-electrical I Htn. I _. I /lax. I UnIt I Hotes llghtpath See fig. Focus errordetection Slnole Foucault Radial errordetection 3-beam method Numer Ica Iaperture 0.45 Working distance 1.8 I ~ nm Power Intens ityout of I 0.5ImW objective lens LASER IParaJll!ter I Hin. I NolI. I /lax. I Unit IHotes I Wavelenght 760 780 800 nm at 30°C Supp Iy voltage 4 6 VSee fio. 4:+laser Supp lycurrent 60 90 mA See fig. 4:+laser PHOTODIODES IParameter IHin. IN---- !/lax. I UnIt I Notes I Configurat Ion See fig. 4 CAsum 2/3 of lsum 02+03+04 SATsum 1/3 of Isum 01+05 Dark reverse current 10 nA Termina 1capacitance 3 pF 02,03,04 5 pF 01, 05 Response time(5%·95%) 120 ns 02.03.04 200 ns 01.05 lsum 6.5 7.3 8.1 ~Substrate currentcrosstracks In focus exc 1.strayl ight lstray 15%of lsum Substrate currentwithout disc HF si9na Ia"" 1itude pp 5.6 ~HF part ofCAsum Page 2 CDM12.1 SPECIFICATION CDM12.1 SPECIFICATION Page3
