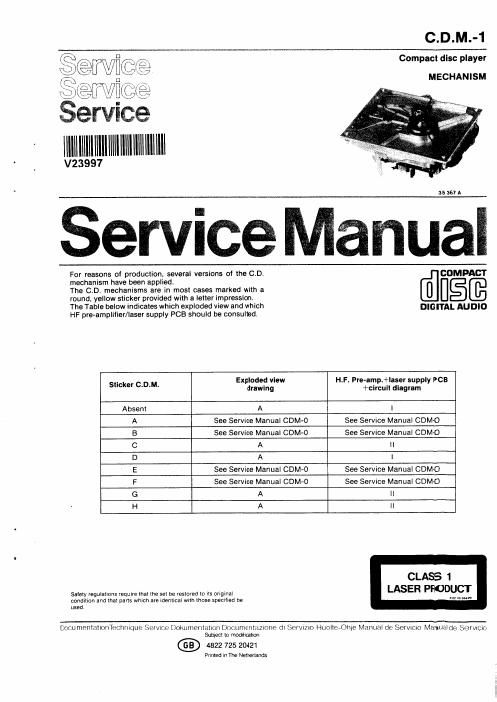

Service Manua

Compacl

disc player

MECHANISM

35 367 A

For reasons of production, several versions of the CD.

mechanism have been applied.

The CD, mechanisms are in most cases marked with a
round, yellow sticker provided with a letter impression.
The Table below indicates which exploded view and which
HF preamplifier/laser supply PCB should be consulted,

COMPACT

DIGITUAL AUDIO

Sticker C.D.M. Exflfgzfigew H.F. Prergzfilladslzrgggply PCB
Absent A l
A See Service Manual CDM-O See Service Manual CDMO
B See Service Manual CDM-O See Service Manual CDMO
C A II
D A I
E See Service Manual CDM-O See Service Manual CDMO
F See Service Manual CDM-O See Service Manual CDMO
G A II
H A II

Salely regulations require that (he set be restored to its original
condition and mat pans which are identical wnh lhose speciiied be

used,

CLASS 1

LASER PRODUCT

mama

DommentationTechnique Servtce Dokumemaiian Documeniazione (ii Sen/mo Huolte-Ome Manual de Servnmo Manualde Sewicio
Subieci to modification

4822 725 20421

Prmled in The Netherlands

Page 2

SERVICING HINTS

in order to prevent loose metal objects from getting in the
CD mechanism it will be necessary to see to a clean repair
station.

The objective can be cleaned with a blow brush.

The CID-mechanism is provided with self-lubricating
bearings and should thus NOT be lubricated.

Ensure that the player is not resting on the shaft of the
turntable motor during repairs and measurements on the
bottom.

Servicing the RAFOC unit (= Radial and Focusing unit
pos. 61).

The RAFOC unit supplied by Service is the same one as in
CDM-O. In the CDM-l the bottom plate of this FIAFOC unit
has been replaced by frame item number 503. if the
RAFOC unit is replaced, carefully an accurately perform
the following operations:

- Take the two flex PCBs out ofthe connectors on the
preamplifier PCB.

- Disassemble the detective RAFOC unit by removing
the 4 bolts M3x18 mm and shaft item number 504,

- Remove shaft item number 504 of the new RAFOC
unit,
Pay attention to the 3 intermediate washers item
number 502 and spring washer item number 505, they
should assume the same positions after assembly.

Loosen the 4 bolts MSXTB mm until the bottom plate
can be removed.

Do not remove bolts M3x18 mm (they hold the new
FIAFOC unit together),

- Mount the new RAFOC unit on frame 503.
Ensure that the 3 intermediate washers 502 and spring
washer 505 are positioned correctly before fixing shaft
item number 504.

- Check that the arm moves freely and the anglesetting
as well (see check and possible adjustment of angle
setting).

_. Forreplacingthelightpinitisnotnecessaryto remove
the RAFOC unit.
The light pin can be removed by turning it anti-
clockwise by means of an open-ended spanner of
12 mm and afterwards pulling it out of the arm.
During mounting, the light pin must be pushed into
the arm as far as possible. and turned clockwise.

Attention:

To prevent adlustments from changing, NO SCREWS
OTHER then those mentioned above should be
loosened.

THE LIGHT PIN IS MUCH MORE SENSITIVE TO STA-
TIC CHARGE THAN A MOS IC. CARELESS TREAT-
MENT DURING SERVICING MAY REDUCE LIFE
EXPECTANCV DRASTICALLY. FOR THIS REASON
CARE SHOULD BE TAKEN THAT DURING SER-
VICING THE POTENTIALS OF THE AIDS AND YOUR-
SELF EQUAL THE POTENTIAL OF THE MECHANISM.

In the player chip components have been applied. For
insertion and removal of chip components see Fig.

GENERAL DISMOUNTING MOUNTING

VACUUM PISTON e g A PAiR 0F TWEEZERS

SOLDERNG 4322 395 men
mow \ _ 3" . A
I _ _ I
e g WELgefi m *

SOLDER TIP F'T-H?

on A SOLDER
SOLDERING rzos-oamm
0 SOLDEWNG pnzssnns
semen WICK lRON \ r
452? 321 40042
SOLDERING TIME SOLDER B
eg A FAlH or rszzsns < 3 5903' a 5 5 m"
t B PRESSURE SOLDERING
HEATING HEATING * \ IRON
\ Ir

SOLDEHING IRON

CHIP
PONENT
SOLDER COM SOLDER
COPPER TRACK

WI N
SOLDER CKK CLEANING EXAMPLES

RIGHT

PRECAUTIONS
SOLDERING -
0

lR N
iGHT
)
ODPER TRACK

SOLDERiNG

SDLDERING
IRON
CHlP
COMPONENT

SEHViCE PACKAGE
