Philips cd 950 cd
This is the 53 pages manual for philips cd 950 cd.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips cd 950 cd (Ocr-read)

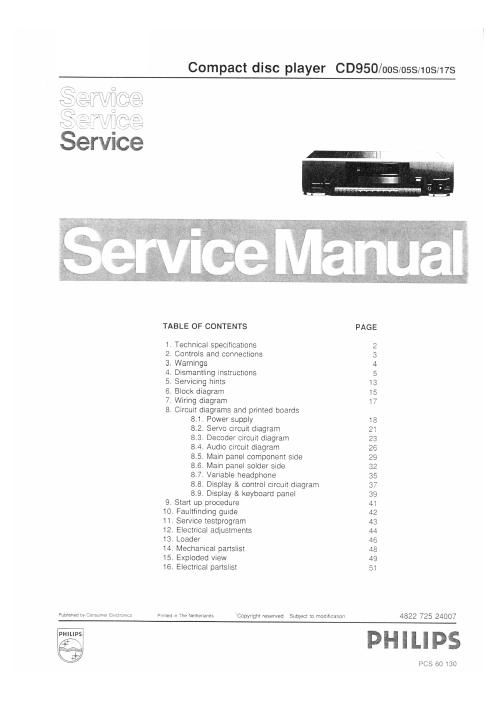

Page 1
Compact disc player CD950/OOS/OSS/1OS/17S
t
.3
30
ii
TABLE OF CONTENTS PAGE
1. Technical specifications 2
2. Controls and connections 3
3. Warnings 4
4. Dismantling instructions 5
5. Servicing hints 13
6. Block diagram 15
7. Wiring diagram 17
8. Circuit diagrams and printed boards
8.1. Power supply 18
8.2. Servo circuit diagram 21
8.3. Decoder Circuit diagram 23
8.4. Audio Circuit diagram 26
8.5. Main panel component side 29
8.6. Main panel solder Side 32
8.7. Variable headphone 35
8.8. Display & control circuit diagram 37
8.9. Display & keyboard panel 39
9. Stan up procedure 41
10, Faultfinding guide 42
11. Service testprogram 43
12. Electrical adjustments 44
13. Loader 46
14. Mechanical partslist 48
15. Exploded View 49
16. Electrical partslist 51
Published by Consumer Eectroriizs printed in 'rhe Netherlands Copyright reserved Subject to modiiicairorr 4822 725 24007
% PHILIPS
PCS 60 130
