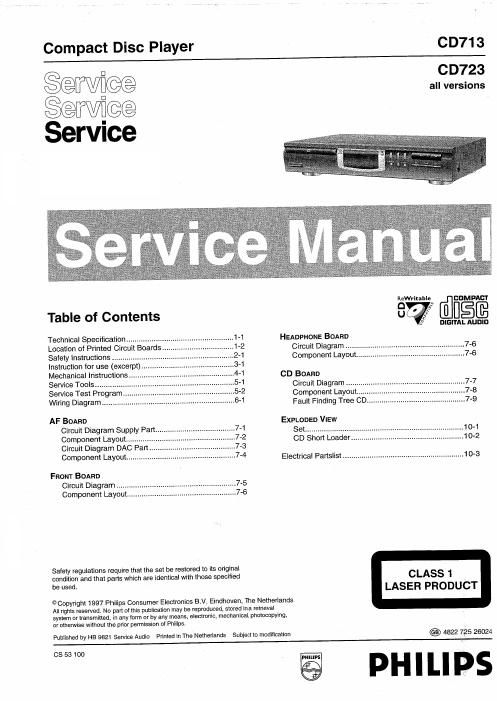

Page 1
Compact Disc Player;
CD71 3
Service
Sam/gee
Servrce
CD723
all versions
Table of Contents
Technical Specification....,.....................
Location of Printed Circuit Boards.
Safety instructions .............
Instruction for use (excerpt)
Mechanical Instructions
Service Tools
Service Test Progra
Wiring Diagram .....
AF BOARD
Circuit Diagram Supply Part. .7-1
Component Layout ......... .72
Circuit Diagram DAC Part.
Component Layout ............
FRONT BOARD
Circuit Diagram ..
Component Layou
........................................ 7-5
..................................... 7-6
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified
be used.
©Copyright 1997 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
ReWritable EDMFABT
o «5
U :5 @
8 DIGITAL AUDIO
HEADPHONE BOARD
Circuit Diagram ........................................
Component Layout
CD BOARD
Circuit Diagram ............
Component Layout...
Fault Finding Tree CD
EXPLODED VIEW
Set.....
CD Short Loader.
............................................ 10-1
Electrical Panelist ..................................................
CLASS 1
LASER PRODUCT
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by HB 9821 Service Audio Printed in The Netheriands Subject to modification
4822 725 26024
CS 53100
PHILIPS
Page 2
TECHNICAL SPECIFICATION
General
Headphone output
Dimensions (WxHxD)
Weight
Accessories
: 435 x 86 X 265mm
: 2,9kg
Instruction for use
Remote control
: 4822 736 16252 for /00
: 4822 736 16253 for /01
: 4822 736 16254 for /14
24822 219 10537
Remark : RC works with CD713 as well but is delivered with CD723 only!
Mains voltage
IOO
/01
I14
Power consumption
: 220-230V(iI 0%) 50H:
: 120/230V(:15°/o) 50/60Hz
2 220-230V(¢10%) 5OHZ
Output level (1kHz, DdB) :25VHMs
Unbalance left-right : 51,2dB
Output impedance : 120:2
Load impedance : 329 - 6009
Output power : 25mW at 329
: 52mW at 1209
: 29mW at 60052
Laser
Output power : <5mW (3mW typ.)
Wavelength : 780nm
Measurement setup
Use Audio Signal disc SBC429 4822 397 30184
O
O
S/N and distortion m
Stand PY : SSW 9.9, Sound Technology 51133:;
operating : approx. 8W
Audio performance 0 0
Number of channels : 2 e,;§;Ii-iEI!i-eil;ngL}EM§50
Output voltage (Line out) : 2VRMS :SdB Wm FFW'
Unbalance left-right : 51 dB
Frequency response : 20Hz-20kHz $0,4dB
Signal to noise ratio :98 dB typ.
Dynamic range : 95dB typ. at 1kHz
THD : 50,0063% at 1kHz
Channel separation : 85dB typ. at 1kHz
RC 5 Commands
System code = 20
Command Code Command Code , Command Code
KEY "0" 0 KEY 9" 9 SHUFFLE 28
KEY "1" , ' 1 PLAY 53 SCAN 43
KEY '-'2' 2 STOP 54 REPEAT , 29
KEV/3 3 PAUSE 48 FADE 120
KEY 4" 4 TIME , 11 VOLUME UP 16
KEY "5" 5 PREVIOUS ' 33 VOLUME DOWN '. 17
, KEY ,"6" 6 REVIEW 50 STAND BY' 12
KEY "7" 7 CUE 52 MUTE 13
KEY 8" 8 PROGRAM 36 NEXT 32
CS 53 101
