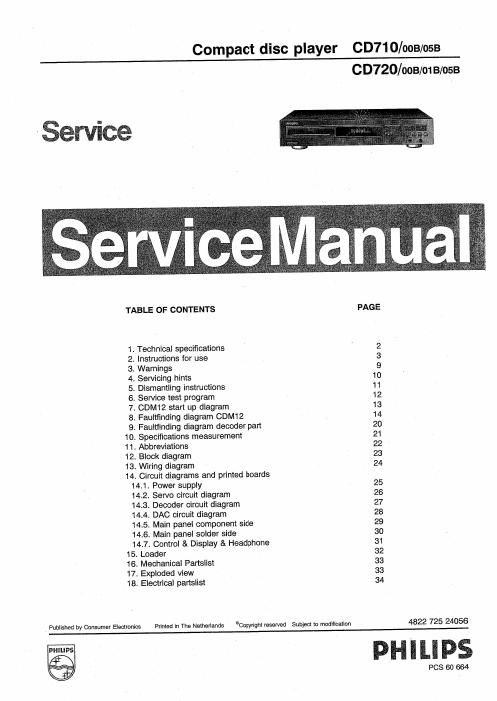

Compact disc player CD710/ooa/osa
CD720/ooa/o1B/osa
~ Service
TABLE OF CONTENTS PAGE
1. Technical specifications ' 2
2. Instructions for use 3
3. Warnings 9
4. Servicing hints 10
5. Dismantling instructions 11
6. Service test program 12
7. CDM12 start up diagram 13
8. Faultfinding diagram CDM12 14
9. Faultfinding diagram decoder part 20
10. Specifications measurement 21
11. Abbreviations 22
12. Block diagram 23
13. Wiring diagram 24
14. Circuit diagrams and printed boards
14.1. Power supply 25
14.2. Servo circuit diagram 26
14.3. Decoder circuit diagram 27
14.4. DAC circuit diagram 28
14.5. Main panel component side 29
14.6. Main panel solder side 30
14.7. Control & Display & Headphone 31
15. Loader 32
16. Mechanical Partslist 33
17. Exploded view 33
18. Electrical partslist 34
Published by Consumer Electronics Printed in The Netherlands aCopyright reserved Subject to modification 4822 725 24056
PCS 60 664
%; PHILIPS
