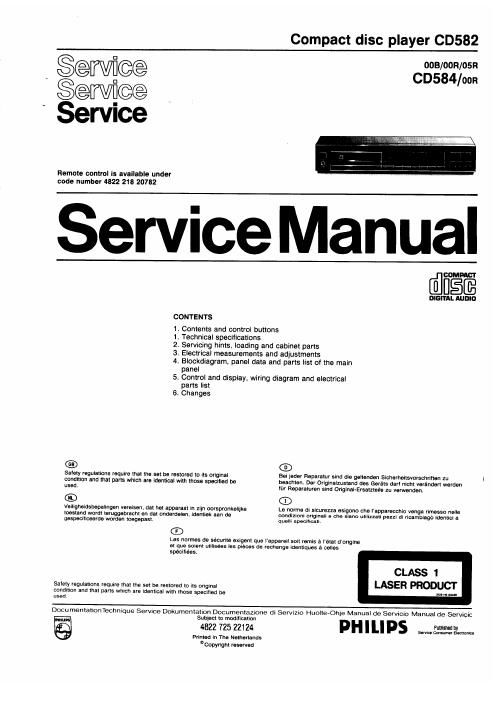

Philips cd 582 service manual

Page 2

CONTROL BUTTONS

1-1

1 ON/OFF KEY key
For switching on and oil.
2 REMOTE CONTROL eye
Receives the signals from the remote control.
3 DISPLAY
Informs you about the functioning of the player.
Displays details from the disc contents list.
4 PLAY/REPLAY key
For staning play (PLAY).

For returning to the beginning of a track (REPLAY).

5 STOP key
For stopping play.
For erasing a program.
6 PHONES socket
For connection of headphones.
7 OPEN/CLOSE key
For opening and closing the disc tray.
8 SHUFFLE key
For playing all tracks on a disc in random order.
9 PROGRAM key
For storing track numbers in a program.
For erasing track numbers from a program.
For checking the program.

1.3 781 B11

10 REPEAT key
For repeating a disc or a pr ram.
11 For fast search to a particular passage during play.
('{>' lorwards.)
12 PAUSE key
For briefly interrupting play.
For holding play at the start of a disc. track or passage.
13 PREV TRACK NEXT keys
for selecting a previous or a later track during play.
For selecting the track number you want play to begin
with.
For selecting track numbers when compiling a program.
(PREV from high to low, 'NEXT' 110m low to high.)

a PC] IN/OUT: for a remote control system.

Use this connection tor:

- Connecting up the equipment when you are
incorporating the player in a HiFi system with its own
remote control system.

- Connecting the remote control receiver EM 2200.
available as an accessory, if the siting of the player
prevents its REMOTE CONTROL'eye from receiving
the signals from the remote control directly.

b OUT L R: for the connecting cable to the amplifier.

CS 19 264
