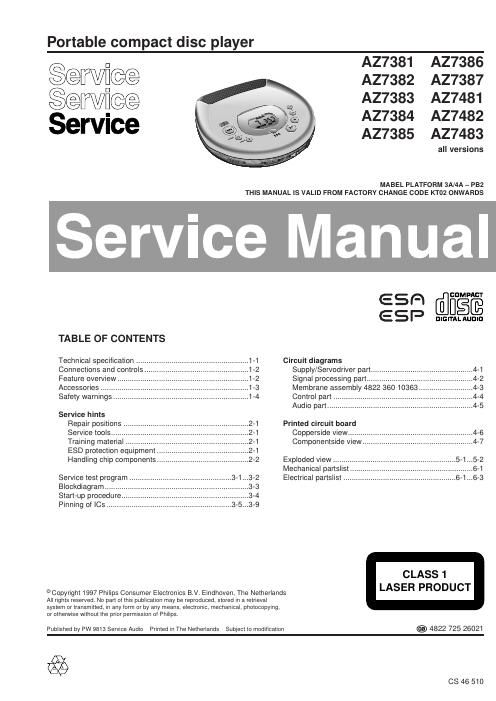

Philips az 7384 service manual
This is the 28 pages manual for philips az 7384 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips az 7384 service manual (Ocr-read)
Page 1
1-1 CS 46 511 TECHNICAL SPECIFICATION General Dimensions (WxHxD) : 128x28x136.5mm Weight without batteries : 225g Power supply modes DC-in socket : 4.5-5.5V Primary batteries (2xLR6) : 1.55-3.6V Rechargable batteries : 1.55-3.6V Battery lifetime Battery empty detection Battery weak level : 2.1V nom. ±150mV Battery empty level : 1.6V nom. +100/-50mV Charge circuit Charge current : 200mA nom. ±20% Charge time for 80% AY3361 : 4.0hrs nom. Max. charge time (µP controlled) : 5.0hrs nom. Temperature protection : none Current consumption (DC-in=4.5V, excl. illumination) Current consumption (Batt. supply=2.25V, excl. illumin.) Shock resistance(ESA off) +X/-X direction :³2.5g +Y/-Y direction :³2.5g +Z/-Z direction :³2.0g Shock resistance by use of car base(ESA off) +X/-X direction :³6g +Y/-Y direction :³6g +Z/-Z direction :³6g Headphone out (measured with 16½load, ESA & DBB off) Output power (THD=10%) : 2x12mW (+1/-3dB) Frequency response (1mW) : 100Hz-20kHz within 6dB S/N ratio (unwght) : >80dB (83dB typ.) S/N ratio (A-wght) : >82dB (85dB typ.) THD+N (1kHz, 1mW) : <1% (0.2% typ.) Channel crosstalk (1kHz, no load) : <-24dB (-44dB typ.) Channel unbalance (-40dB) : <5dB Volume attenuation (1kHz) : >60dB Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Measurement setup Use Audio Signal disc SBC429 4822 397 30184 L R LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion metere.g. Sound Technology ST1700B N O I T A R E P OFF O A S ENO M S PNO A S E e d o m - y a l P.p y t A m 5 6 1Ð .p y t A m 5 6 1 e d o m - p m u J.p y t A m 0 5 4Ð .p y t A m 0 5 4 y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 4 . 0 N O I T A R E P OFF O A S ENO M S PNO A S E e d o m - y a l P.p y t A m 5 4 1Ð .p y t A m 5 6 1 e d o m - p m u J.p y t A m 0 5 4Ð .p y t A m 0 5 4 y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 5 1 E P Y T Y R E T T A BFF O A S ENO M S PNO A S E s e i r e t t a b y r a m i r P ) 6 R L x 2 (. p y t s r h 2 1Ð .p y t s r h 2 1 1 6 3 3 Y A k c a p - u c c A ) h A m 0 0 7 , d C i N (. p y t s r h 4Ð .p y t s r h 4
Page 2
DISPLAY................ shows the different playing modes, tracks and times ¤...........................skips and searches forward °...........................skips and searches backward VOLUME................adjusts the volume level at the headphone socket RESUME/HOLD ....activates the RESUME function and/or HOLD function (locking all buttons) MODE 0 0 ................selects the different playing modes: SHUFFLEªSHUFFLE REPEAT ALLªREPEATªREPEAT ALLªSCANªoff PROG P .................stores tracks in a program and reviews the program DBB .......................Dynamic Bass Boost: enhances the bass response, DBB 1ªDBB 2ªDBB 3ªoff Press this button for more than 3 seconds to switch off/on acoustic feedback. STOP 9..................stops CD play, deletes various settings, switches off the CD player and activates charging. OPEN.....................opens the lid of the CD player 2;..........................starts and pauses CD play ESA........................Electronic Shock Absorption is the buffer memory for uninterrupted sound EARPHONE p.......Earphone socket (3.5mm) 4.5 V DC ................Socket for external power supply Battery compartment to insert batteries1-2 CS 46 512 CONNECTIONS AND CONTROLS 4.5 V DC TYPEPLATE OPEN DBB MODEDISPLAY PROGRAM ESA PLAY / PAUSESTOPNEXT PREVIOUS EARPHONE JACK VOLUME HOLD / RESUME E L B A T R O P - D C F O S E R U T A E F A 4 , A 3 L E B A M Y L I M A F A 3 M R O F T A L PA4 M R O F T A L P 1 8 3 7 Z A28 3 7 Z A38 3 7 Z A48 3 7 Z A58 3 7 Z A68 3 7 Z A78 3 7 Z A18 4 7 Z A28 4 7 Z A38 4 7 Z A ) A S E ( N O I T P R O S B A K C O H S C I N O R T C E L E. c e s 2 1.c e s 2 1.c e s 2 1.c e s 2 1.c e s 2 1.c e s 2 1.c e s 2 1.c e s 5 2.c e s 5 2.c e s 5 2 ) M S P ( E D O M E V A S R E W O PÐÐÐÐÐÐÐÐÐÐ N O I T C N U F E M U S E R / D L O H 0/00/00/00/00/00/00/00/00/00/0 S E G A T S B B D3333333333 K C A B D E E F C I T S U O C A 0000000000 Y R O M E M M A R G O R P9 9999999999999999999 H M i N / d C i N N O I T C N U F E G R A H C E R 0Ð /0Ð /0Ð /0Ð /0Ð /0Ð /0Ð /0Ð /0Ð /0Ð / D E R A P E R P X O B Y R E T T A B L A N R E T X EÐÐÐÐÐÐÐÐÐÐ N O I T A N I M U L L I D C LÐÐÐÐÐÐÐÐÐÐ D E R A P E R P L O R T N O C E T O M E R D R O CÐÐÐÐÐÐÐÐÐÐ T U P T U O L A T I G I D / E N I LÐ / ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ ÐÐ/ Ð FEATURE OVERVIEW
