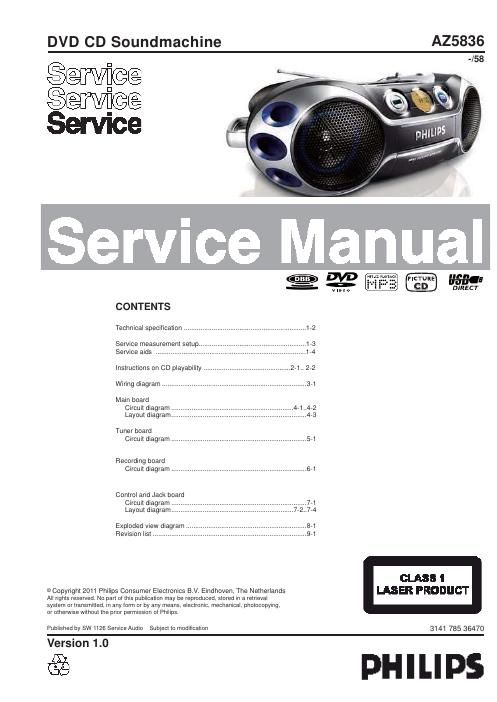

Philips az 5836 service manual
This is the 20 pages manual for philips az 5836 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips az 5836 service manual (Ocr-read)
Page 1
28 English Specifications AMPLIFIER SECTION Output power ........................................ 2 x 4 W RMS CD Frequency Response ................................................. .................................................... 100Hz - 10kHz / ±3 dB CD Signal-to-Noise Ratio>50dB (A-WEIGHED) Output Sensitivity Line Out (1kHz 0dB) ................................... 2±0.2V TUNER SECTION Tuning Range ........................................................................... ............................................................ FM 87.5 – 108 MHz ......................................................... MW 531 – 1602 kHz Signal-to-Noise Ratio ................................. FM≥ 50 dB ........................................................................... MW ≥ 30 dB TAPE SECTION Frequency Response Normal tape ............... 125 Hz - 8 kHz / ± 4 dB Signal-to-Noise Ratio Normal tape ....................................................≥ 45 dB JIS and WTD ....................................................≤ 0.35% DVD SECTION Laser Type ................................................ Semiconductor Video Decoding ........................... MPEG-2 / MPEG-1 Video DAC ................................................................ 10 Bits Signal System ............................................... PAL / NTSC Video Format ..................................................... 4:3 / 16:9 Video S/N ........................................... 56 dB (minimum) Composite Video Output .................. 1.0 Vp-p, 75ΩUSB PLAYER USB ................................................................... 12Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 800 MAIN UNIT Power Supply Rating ...... 110 - 127 / 220 - 230 V ............................................................. 50/60Hz Switchable Power Consumption Active ........................................................................ 15 W Standby ....................................................................≤ 6W Dimensions (w × d × h)400× 242.5 × 169 (mm) Weight .......................................................................... 3.9 kg Packaging Dimensions (w × d × h) ............................. .............................................................. 458x280x210(mm) Gross weight ............................................................ 3.06 kg SPEAKERS Impedance ........................................................................ 4 Ω Speaker drivers ................... full range 4 1 w/ shield Specifications subject to change without prior notice AZ5836_58_P01-31_Eng 2008.3.13, 10:2928
Page 2
2-1 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
