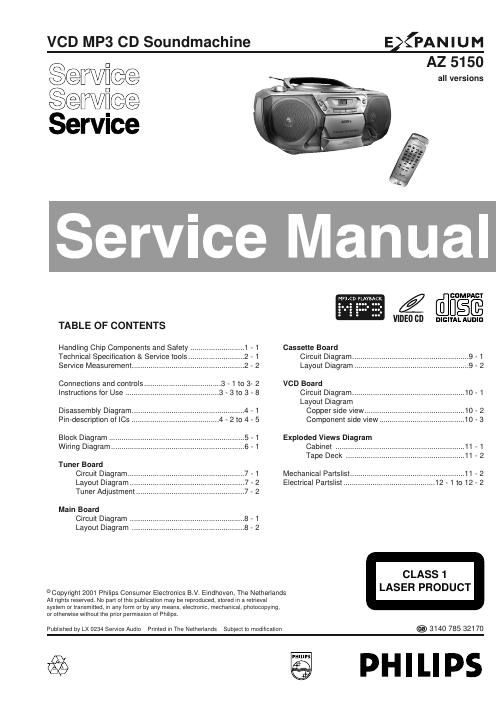

Philips az 5150 service manual

Page 2

GENERAL Mains voltage : -/01 120/230 V Mains frequency :-/01 : 50 / 60 Hz Battery mains : 9 V (R14 x 6) Power consumption : 22 W Dimension (W x H x D) : 395 x 155 x 240 mm Weight : 3.1 Kg AMPLIFIER Output power mains : 2 x 1 W battery : 2 x 1 W Speaker impedance : 2 x 8 ohm Frequency response : 70 Hz - 3 kHz (±3dB) TUNER - FM SECTION Tuning range : 87 - 108.5 MHz IF frequency : 10.7 MHz Sensitivity : < 22 dB at 26dB S/N Selectivity : > 20 dB at ±300kHz ±0.2MHz IF rejection : > 50 dB Image rejection : > 20 dB TUNER - MW SECTION Tuning range : 520 - 1630 kHz IF frequency : 455 kHz ± 3 kHz Sensitivity : < 4000 µV/m at 26dB S/N Selectivity : 16 dB : IF rejection ratio 24 dB : Image rejection ratio 28 dB AUDIO CASSETTE RECORDER Number of tracks : 1 stereo Tape speed : 4.76 cm/sec ± 3% Wow & flutter : < 0.35 % JIS UWTD Fast wind/rewind C60 : < 130 sec. Frequency response P/B : 125 - 8000 Hz S/N ratio : > 36 dB> > > COMPACT DISC : S/N ratio > 45 dB Channel difference 1 kHz : < 3 dB Channel crosstalk 1 kHz : > 26 dB Laser wavelength : 780 ± 20nm Laser light power : < 0.3 mW 2 - 1 SERVICE TOOLS Audio signal disc SBC 429.......................................................................4822 397 30184 Playability test disc SBC 444...................................................................4822 397 30245 Test disc 5(disc without errors ) + Test disc 5A(disc with dropout errors, black spots and fingerprints) SBC 426/426A.....................................................................4822 397 30096 Burn in test disc (65 min. 1kHz signal at -30 dB level without pause) .....4822 397 30155 anti-static table mat large 1200x650x1.25mm  4822 466 10953 small 600x650x1.25m 4822 466 10958 anti-static wristband4822 395 10223 connection box (3 press stud connections, 1MΩ ) 4822 320 11307 extendible cable (2m, 2MΩ , to connect wristband to connection box) 4822 320 11305 connecting cable (3m, 2MΩ , to connect table mat to connection box) 4822 320 11306 earth cable (1MΩ , to connect any product to mat or to connection box) 4822 320 11308 KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671 wristband tester4822 344 13999 AVAILABLE ESD PROTECTION EQUIPMENT TECHNICAL SPECIFICATIONS
