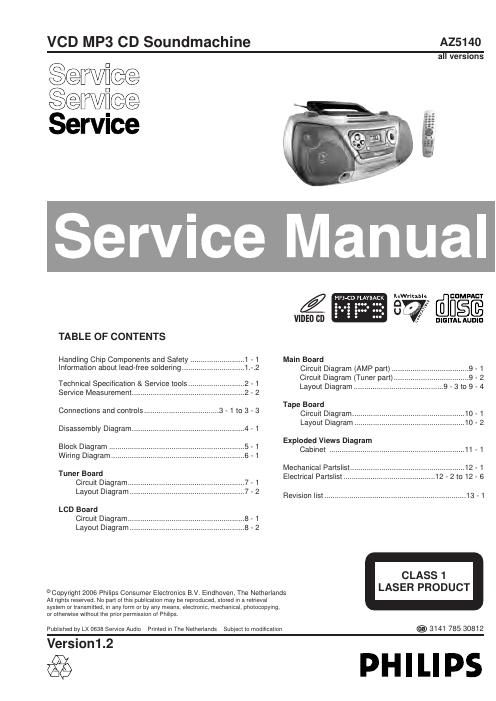

Philips az 5140 service manual

Page 2

1 - 2 INFORMATION ABOUT LEAD-FREE SOLDERING Philips CE i s producing lead-free sets from 1.1.2005 onwards. IDENTIFICATION: Regardless of special logo (not always indicated) one must treat all sets from 1 Jan 2005 onwards, according next rules: Example S/ N: Bottom line of typeplate gives a 14-digit S/N. Digit 5&6 is the y ear, digit 7&8 is the week number, so in this case 2005 wk12 So from 0501 onwards = from 1 Jan 2005 onwards Im por tant no t e : In fac t also pro duct s of year 20 04 must be treat ed in this way as lon g as you av oid mixin g sold er-alloys ( l eaded/ lead -fre e ). So b est to al ways use SAC 3 05 and the higher tempera tures belo n g t o t h is. Due to lead-free technology some rules have to be respected by the workshop during a repair: - Use only lead-free solder alloy Philips SAC305 with order code 0622 149 00106. If lead-free solder-paste is required, please contact the manufacturer of your solder-equipment. In general use of so lder-paste within workshops should be avoided because paste is n ot easy to store and to handle. - Use only adequate solder tools applicable for lead-free solder alloy. The solder tool must be able o To reach at least a solder-temperature of 40 o To stabilize the adjusted temperature at the solder-tip o To exchange solder-tips for different applications. - Adjust your solder tool so that a temperature around − is reached and stabilized at the solder joint. Heating-time of the solder-joint should not ex ceed ~ 4 sec. Avoid temperatures above 400 otherwise wear-out of tips will rise drastically and f lux-fluid w ill be destroyed. To avoid wear-out of tips switch off un-used equipment, or reduce heat. - Mix of lead-free solder alloy / parts with leaded solder alloy / parts is possible but PHILIPS recommends strongly to avoid m ixed solder alloy types (leaded and lead-free). If one cannot avoid or does not know whether product is lead-free, clean carefully the solder-joint from old solder alloy and re-solder wi th new solder alloy (SAC305). - Use only original spare-parts listed in the Service-Manuals. Not listed standard-material (commodities) has to be purchased at external companies. - Special information for BGA-ICs: - alwa ys use the 12nc-recognizable soldering temperature profile of the specific BGA (for de-soldering always use the lead-free temperature profile, in case of doubt) - lead free BGA-ICs will be delivered in so-called 'dry-packaging' (sealed pack including a silica gel pack) to protect the IC against moisture. After opening, dependent of MSL-level seen on indicator-label in the bag, the BGA-IC possibly still has to be baked d ry. (MSL=Moisture Sensitivity Level). This will be communicated via AYS-website. Do not re-use BGAs at all. - For sets produced before 1.1.2005 (except products of 2004), containing leaded solder-alloy and components, all needed spare- parts w ill be available till the end of the service-period. For repair of such \ sets nothing changes. - On our website www.atyourservice.ce.Philips.com you find more information to: ∗BGA-de-/soldering (+ baking instructions) ∗ Heating-profiles of BGAs and other ICs used in Philips-sets Y ou will find this and more technical information within the "magazine", chapter "workshop news". For additional questions please contact your local repair-helpdesk. SERVICE INSTRUCTION 1. Unplug the AC Power cord and connect a wire between the two pins of the AC Power plug. 2. Set the AC Power switch to the "on" position (keep the AC Power cord unplugged!). 3. Measure the resistance value between the pins of the AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be larger than 4.5 Mohm (For U.S. it should be between 4.2 Mohm and 12 Mohm). 4. Switch "off" the set, and remove the wire between the two pins of the AC Power plug. Safety regulations require that after a repair, the set must be returned\ in its original condition. Pay in particular attention to the following points: · Route the wire trees correctly and fix them with the mounted cable clamps. · Check the insulation of the AC Power lead for external damage. · Check the strain relief of the AC Power cord for proper function. · Check the electrical DC resistance between the AC Power Plug and the secondary side (only for sets which have a AC Power isolated power supply): - Check the cabinet for defects, to avoid touching of any inner parts by the customer.
