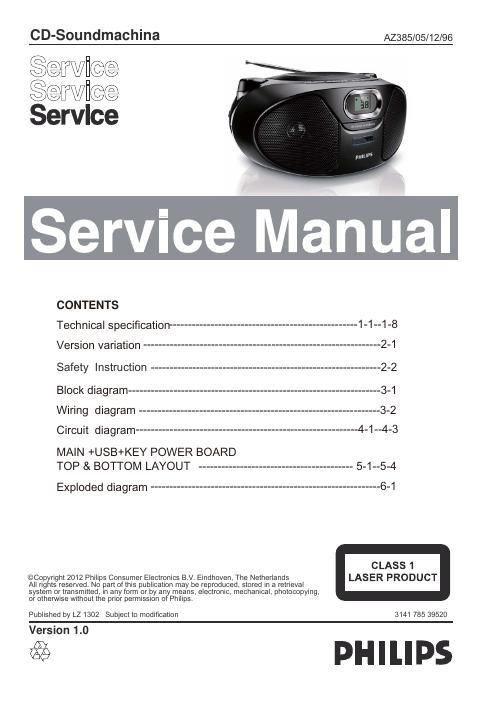

Philips az 385 service manual

Page 2

1-2 TECHNICAL SPECIFICATION SET SPECIFICATION VER 1 CD/MP3/FM/USB AZ385/05/12 /96 Prepared: Supers: 10 Sh. 190 4 A KT Check: DATE: © PHILIPS Electonics Hong Kong Ltd., BU-PORTABLE AUDIO REMARKS : General description: 1 LIFETIME : 5 YEARS (ACC. TO UAN-D1611) 2 PERFORMANCE CLASSES : TUNER SUPPLY, AMPLIFIER SPEAKER BOXES RECORDER CLOCK CD DCC TELEPHONE REC. PLAYER I x x 3 II x 4 III 5 SAFETY REQUIREMENTS: EN 60065 (IEC 65) CE , 6 RADIATION, IMMUNITY REQUIREMENTS: (EMC) EN55013, .EN55020 , (Version 05/12/61 approbation CB only ) EN61000-3-2:2006 EN61000-3-3:1995 (Version /61 approbation CB only ) 7 CLIMATIC REQUIREMENTS: (acc. to UAN-D1590) All climates: -10 C till +50 C (Functional); Set has to be pre-conditioned for 2 hour, except CD function 8 For all measurements: 25 C 9 POWER SUPPLY: r e f f u B p u k c a B / n o i t a r e p o ) . t x e r o . t n i ( C D n o i t a r e p o ) C A ( S N I A M Voltage selection: See table below Battery type: R14, UM2, C-cell x 6; nom.: 9V minimum operating voltage : 5V for CD / Tape 3.3V for TU 10 Selection: See table below Lifetime: CD 10 hours, TU 20 hours, (R14 ‰ alkaline batteries) 11 Frequency: See table below External DC: No 12 POWER CONSUMPTION: Power off mode: 5W typ. Standby: <0.5 W (power off mode ) 13 Maximum: 15 W 4 1 : m u m i x a M General : Q and R according to production division rules : Q < 1% (Major), Q < 4% (Minor) < R : o t g n i d r o c c a d e r u s a e M 3% (CE52) N O I T A B O R P P A : S N O I S R E V D E V I R E D Version AC Voltage/ Frequency on typeplate Safety Tolerance Tuner /05 UK 230VAC 50HZ +/-10% FM, 230VAC 50HZ /12 Europe +/-10% FM, /61 Ko rea 220VAC 60HZ +/-10% FM 15
