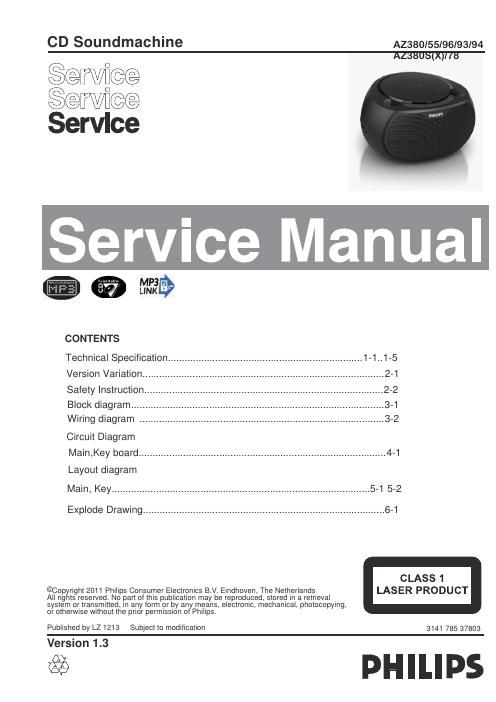

Philips az 380 service manual

Page 1

TECHNICAL SPECIFICATION 1-1 General description: CDMP3 with USD Boombox Output Power 2x1W 1 LIFETIME : 5 YEARS (ACC. TO UAN-D1611) 2 PERFORMANCE CLASSES : TUNER SUPPLY, AMPLIFIER SPEAKER BOXES RECORDER CLOCK CD DCC TELEPHONE REC. PLAYER I x x 3 II x 4 III 5 SAFETY REQUIREMENTS: EN 60065 (IEC 65) CE , 6 RADIATION, IMMUNITY REQUIREMENTS: (EMC) EN55013, .EN55020 , (Version 55 approbation CB only ) . 7 CLIMATIC REQUIREMENTS: (acc. to UAN-D1590) All climates: -10 qC till +50 qC (Functional); Set has to be pre-c onditioned for 2 hour, except CD function 8 For all measurements: 25qC 9 POWER SUPPLY: MAINS (AC) operation DC (int. or ext.) operation / Backup Buffer Voltage selection: See table below Battery type: R14, UM2, C-cell x 6; nom.: 9V minimum operating voltage : 6.3V for CD and USB / 5.4V for Tuner 10 Selection: See table below Lifetime: CD t³³³Äó³ hours, TU t 20 hours, (R14 G¥M)_ alkaline batteries) 11 Frequency: See table below External DC: na 12 POWER CONSUMPTION: Power off mode: dW /12/05 ;< 2W /96/55 Standby: 0nW (power off mode ) 13 Maximum: 15 W Maximum: 14 General : Q and R according to production division rules : Q < 1% (Major), Q < 4% (Minor) Measured according to: R < 3% (CE52) DERIVED VERSIONS: APPROBATION 15 Version AC Voltage/ Frequency on type plate Safety Tolerance Tuner /96 Taiwan 10VA C 50HZ +/-10% FM, MW Transformer /12/05 Europe 100~240VAC 60/50HZ +/-10% FM SMPS Adaptor 9V/1.1A /55 Latin 120/230VAC 60/50HZ +/-10% FM ,AM Transformer REMARKS: For operation and thermal stability test : 220/230/240Vac setting : 198Vac to 264Vac 120Vac setting : 99Vac to 140Vac dual voltage ac setting (120Vac / 230Vac) : 99Vac to 140Vac and 196Vac to 264Vac 16
