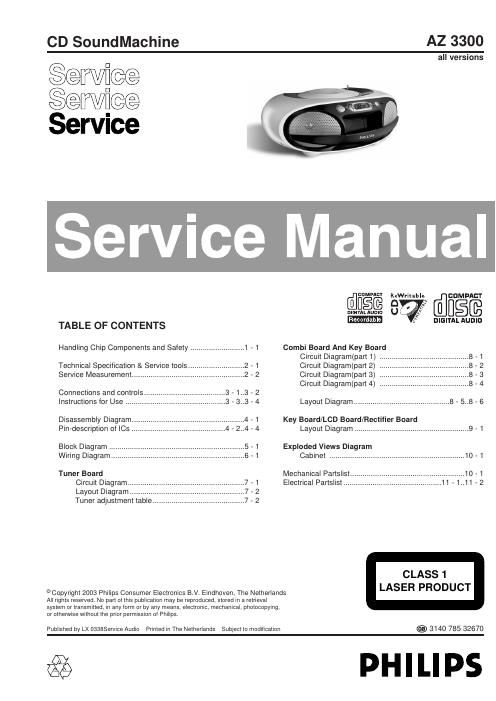

Philips az 3300 service manual

Page 2

GENERAL Mains voltage -/00C -/00C : 230 V -/17 : 120 V Mains frequency : 50 Hz -/17 : 60 Hz Battery mains : 9 V (R14 x 6) Power consumption : 12W : 408 x 278 x 153 Dimensions(L x D x H) AMPLIFIER Output power mains : 2 x 1.6 W battery : 2 x 1.6 W Speaker impedance : 2 x 6 ohm TUNER - FM SECTIONTUNER - AM SECTION Tuning range : 87.5 - 108 MHz IF frequency : 10.7 MHz Sensitivity : < 22 dBf at 26dB S/N Selectivity : > 20 dB at ±300kHz IF rejection : > 50 dB Image rejection : > 20 dB Tuning range : 531 - 1602 kHz : 530 - 1700 kHz IF frequency : 450 kHz ± 1 kHz ± Sensitivity : < 4000 µV/m at 26dB S/N Selectivity : > 500mV/m at S9/300kHz IF rejection : > 24 dB Image rejection : > 28 dB COMPACT DISC Frequency response : +9dB ± 2dB Vol.max.-20dB S/N ratio : > 57 dBA Channel difference 1 kHz : < 3 dB Channel crosstalk 1 kHz Z axis ± X or Y axis : > 26 dB Channel crosstalk 10 kHz 100 Hz : > 16 dB Shock resistance : 5G : 5G for /17 only 2 - 1 SERVICE TOOLS Audio signal disc SBC 429.......................................................................4822 397 30184 Playability test disc SBC 444...................................................................4822 397 30245 Test disc 5(disc without errors ) + Test disc 5A(disc with dropout errors, black spots and fingerprints) SBC 426/426A.....................................................................4822 397 30096 Burn in test disc (65 min. 1kHz signal at -30 dB level without pause) .....4822 397 30155 anti-static table mat large 1200x650x1.25mm  4822 466 10953 small 600x650x1.25m 4822 466 10958 anti-static wristband4822 395 10223 connection box (3 press stud connections, 1MΩ ) 4822 320 11307 extendible cable (2m, 2MΩ , to connect wristband to connection box) 4822 320 11305 connecting cable (3m, 2MΩ , to connect table mat to connection box) 4822 320 11306 earth cable (1MΩ , to connect any product to mat or to connection box) 4822 320 11308 KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671 wristband tester4822 344 13999 AVAILABLE ESD PROTECTION EQUIPMENT TECHNICAL SPECIFICATIONS
