Philips az 3068 owners manual
This is the 8 pages manual for philips az 3068 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips az 3068 owners manual (Ocr-read)

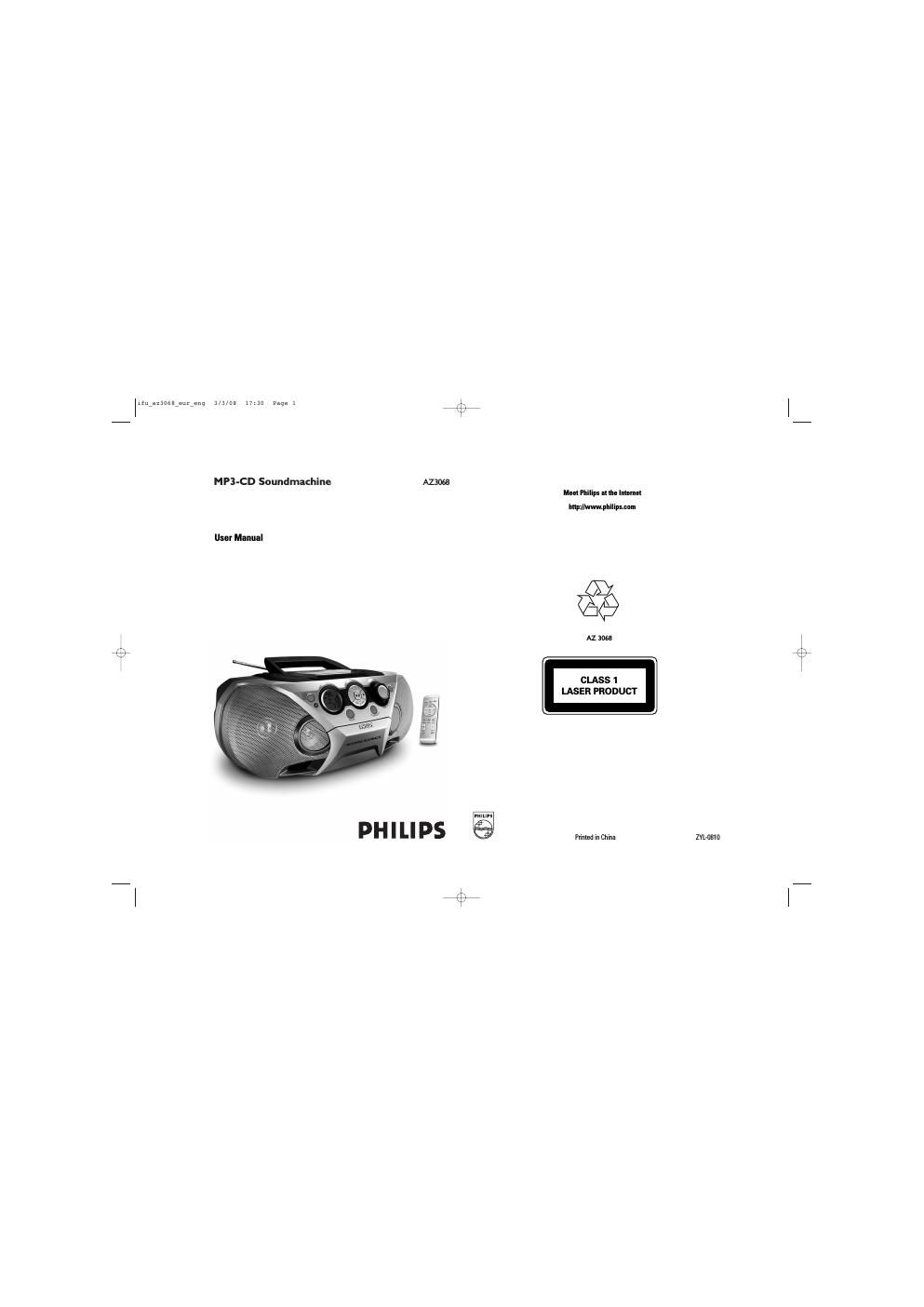

Page 1
123 5 6 7 8 4 9 0 ! @ # $ % ^ 9 40 $ % # @ ! 7 8 2 4 5 6 3 3 CD TUNER REPEAT BAND SHUFFLE SEARCH DISPLAYPROG DBB MUTETUNING + TUNING – 1 1 2 3 4 5 6 87 9 ifu_az3068_eur_eng 3/3/08 17:30 Page 2
Page 2
A 0 6 x D-cells - R20 - UM1 X A A B C Remove the insulation plastic tab. Retirez la feuille de protection en plastique. Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1.Remove fuse cover and fuse. 2.Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3.Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp. Note:The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere. How to connect a plug The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour mark- ings identifying the terminals in your plug, proceed as follows: -Connect the blue wire to the terminal marked N or coloured black. -Connect the brown wire to the terminal marked L or coloured red. -Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow). Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K. Recording and playback of material may require consent. See Copyright Act 1956 and The Performers Protection Acts 1958 to 1972. Important notes for users in the U.K. ifu_az3068_eur_eng 3/3/08 17:30 Page 3
