Extracted text from philips az 3013 3014 service manual (Ocr-read)

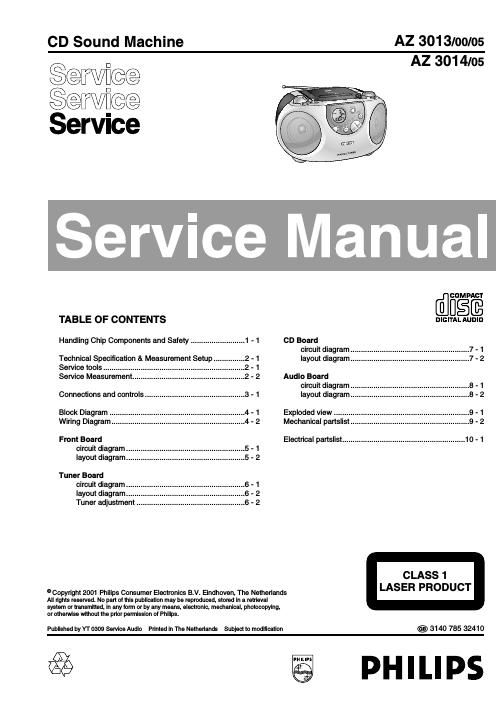

Page 1
HANDLING CHIP COMPONENTS 1 - 1
Page 2
TECHNICAL SPECIFICATIONS GENERAL Mains voltage -/00C :230 V -/05 :240V Mains frequency -/00C/05 : 50 Hz Batterymain set : 9 V (R14 x 6) Power consumption : < 20 W (max.) Dimension (W x H x D) :294 x 145 x 245 mm Weight :2.4 Kg AMPLIFIER Output powermains : 2 x 1 W battery : 2 x 1 W Speaker impedance : 2 x 8 ohm Frequency response :100 Hz - 10 kHz (±3dB) COMPACT DISC Frequency response :100 Hz - 10 kHz ± 2dB S/N ratio : 60 dB Channel difference 1 kHz : 2 dB Channel crosstalk 1 kHz : 40 dB Laser wavelength : 780 ± 20 nm Laser light power : < 0.5 m W TUNER - FM SECTION Tuning range :87.5 - 108 MHz IF frequency :10.7 MHz ± 0.2 MHz Sensitivity : 20 dBf at 26dB S/N Selectivity : 30 dB at 300kHz IF rejection : 50 dB Image rejection : 20 dB Crosstalk : 20 dB TUNER - AM SECTION Tuning range MW : 531 - 1602 kHz IF frequency : 450 kHz ± 1 kHz Sensitivity MW : 4500 µV/m at 26dB S/N Selectivity MW : 16 dB IF rejection MW : 60 dB Image rejection MW : 28 dB 2 - 1
