Philips az 250 service manual

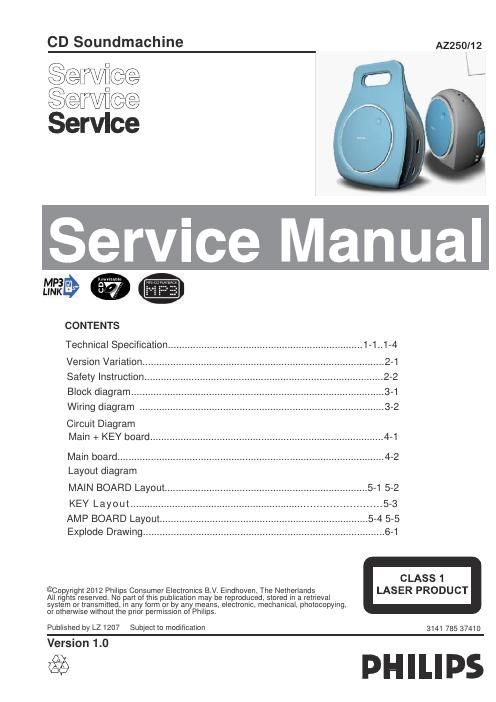

This is the 17 pages manual for philips az 250 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips az 250 service manual (Ocr-read)
Page 1
TECHNICAL SPECIFICATION 1-1 General description: 1 LIFETIME : 5 YEARS (ACC. TO UAN-D1611) 2 PERFORMANCE CLASSES : TUNER SUPPLY, AMPLIFIER SPEAKER BOXES RECORDER CLOCK CD DCC TELEPHONE REC. PLAYER I x x 3 II x 4 III 5 SAFETY REQUIREMENTS: EN 60065 (IEC 65) CE , UL approbation for version 37 6 RADIATION, IMMUNITY REQUIREMENTS: (EMC/FCC) EN55013, EN55020 .FOR VERSION 05/12/79/98 FCC FOR /37 VERSION . 7 CLIMATIC REQUIREMENTS: (acc. to UAN-D1590) All climates: -10 qC till +50 qC (Functional); Set has to be pre-c onditioned for 2 hour, except CD function 8 For all measurements: 25 qC 9 POWER SUPPLY: MAINS (AC) operation DC (int. or ext.) operation / Backup Buffer Voltage selection: See table below Battery type: AA, C-cell x 6; nom.: 9V minimum operating voltage : 6.3V for CD 10 Selection: See table below Lifetime: CD t³³³ÆÁ˳ hours (400mW, AA G¥M )_ alkaline batteries) 11 Frequency: See table below External DC: No 12 POWER CONSUMPTION: Standby: d0.5W typ. 3 W (power off mode) Standby: 0nW (power off mode ) 13 Maximum: 6 W Maximum: 14 General : Q and R according to production division rules : Q < 1% (Major), Q < 4% (Minor) Measured according to: R < 3% (CE52) DERIVED VERSIONS: APPROBATION 15 Version AC Voltage/ Frequency on typeplate Safety Tolerance 12 100-240VAC/ 50/60HZ +/-10% 05 100-240VAC/ 50/60HZ +/-10% 37 120VAC/ 60HZ +/-10% REMARKS: For operation and thermal stability test : AC/DC SWITCHIG ADAPTER INPUT:100-240VAC 16
Page 2
1-2 TECHNICAL SPECIFICATION SUPPLY, AF-AMPLIFIER & LOUDSPEAKER PART : TECHNICAL description: Power supply Tone Control AF-Amplifier Loudspeaker Active components CD2822 1 Passive components 1 W, 8ohm 2 3 GENERAL part: Headphone type None 4 Loudspeaker filter, high pass None 5 Loudspeaker filter, low pass None 6 Power stage protection AC – NO; DC - NO; Temperature – YES; Short circuit – NO 7 Public address No 8 INDICATORS: Output power or VU-meter No : digits: 9 Frequency response No : digits: 10 Low power (battery) No 11 ELECTRICAL DATA: TONE/EQUALIZER/DBB Balance control No 12 Mechanical noise (ISO 1996) 13 Noise overall (ISO) 14 Channel difference at 50mW 15 Hum (vol.max.-20dB to vol.min.) Limit: 250 nW 16 Residual noise (volume minimum) Limit: 100 nW 17 Input sens.: Nom. 500mV mV for 50mW Limit: mV Line outp.: Nom. mV voltage Limit: mV OUTPUT POWER: Mains operation: D=10% 1W Limit: - 18 Battery operation: D=10% 1W Limit: - 19 Music power (MPO) / Peak-MPO (PMPO): (acc. to DIN45324) 20 Short term maximum output power: -1*1.2W (acc. to IEC 60268-15) 21 Long term maximum output power: - (acc. to IEC 60268-15) 22 Headphone output voltage/power: 23 Bandwidth FTC – 1dB at : n.a. (acc. to FTC/16/1/D/432) 24 Bandwidth DIN – 3dB at : - (acc. to IEC 60268-15) 25 Frequency response at Vol. max – 20dB: typ. 60Hz to 16kHz ( r3dB) 26 DBB raise level 4db at125hz vol max-20db Disc SBC429 Track 12 LOUDSPEAKER (output): Low pass crossover frequency: - kHz tolerance: Hz 27 High pass crossover frequency: - kHz tolerance: Hz 28 Short term maximum output power: - W (acc. to IEC 60268-15) 29 Long term maximum output power: - W (acc. to IEC 60268-15) 30 Frequency response at: - Hz kHz 31 REMARKS: 27 : Measured in Tuner mode; 28: CD or LINE IN mode. 32
