Extracted text from philips az 2060 owners manual (Ocr-read)

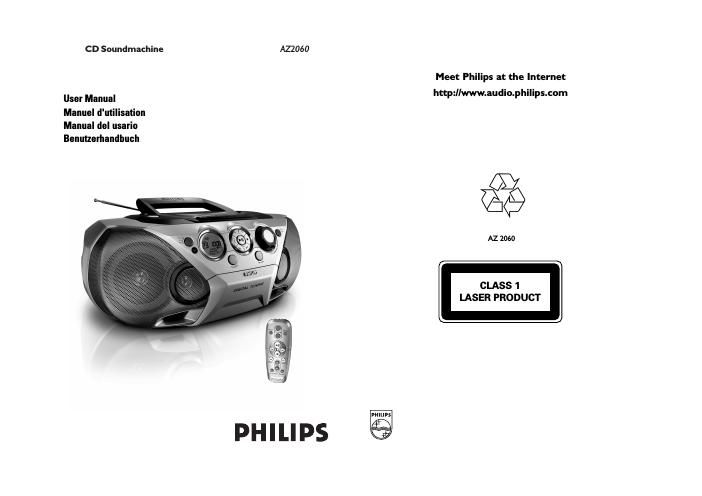

Page 1
123 5 6 7 8 4 9 0 ! @ # $ % ^ See A VOLUME SEARCH PRESET TUNING REPEAT SHUFFLE SEARCH 1 9 8 6 7 2 4 3 5 + - 1 2 1 3 2 6 7 8 A A B C 9 X A 4 5
Page 2
EnglishCONTROLS MAINS SUPPLY Whenever convenient, use the mains supply to con- serve battery life. Make sure you remove the power plug from the set and wall socket before inserting batteries. Batteries (not included) ¥ Insert 6 batteries, type R-20, UM-1or D-cells, (preferably alkaline) with the correct polarity. Remote control (See A) ¥ Insert 2 batteries, type AAA, R03or UM4(prefer- ably alkaline). Incorrect use of batteries can cause electrolyte leak- age and will corrode the compartment or cause the batteries to burst. ¥Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set. - When inserting new batteries, do not try to mix old batteries with the new ones. ¥Batteries contain chemical substances, so they should be disposed of properly. Using AC Mains 1Check if the mains supply, as shown on the type plate located on the bottom of the set, corre- sponds to your local mains supply. If it does not, consult your dealer or service centre. 2If your set is equipped with a voltage selector, adjust the selector so that it matches with the local mains. 3Connect the mains lead to the wall socket. 4To disconnect the mains supply, unplug the set from the wall socket. Auto-Standby mode When a CD has reached the end of playback and remains in the stop position for more than 15 minutes, the set will switch off automatically to save mains. When in pause position for 5 minutes, the CD play- back will stop automatically. 15 minutes later, the set switches off. The type plate is located on the bottom of the set. BASIC FUNCTIONS Switching on and off and selecting function 1Press STANDBY yon the set to switch on. 2Press Source selector once or more to select: CD, TUNER , AUX or TAPE function. 3Press yto switch off the set. Helpful hints: – To change from TAPE to CD,TUNER or AUX function, or when you are switching off the set: first, make sure you press the tape STOP9key to end play- back and all the cassette keys are released. – The tone, sound settings, tuner presets and the volume level (up to a maximum volume level of 20) will be retained in the sets memory. Volume adjustment ¥ Adjust the volume with the VOLUME control. ™Display shows the volume level and a number from 0-32. (See 2) Bass adjustment There are three DBB (Dynamic Bass Boost) options: -Off:no bass enhancement -DBB1:moderate bass enhancement -DBB2:strong bass enhancement ¥ Press DBB Selector once or more to select your option. ™DBB1,2 appears if DBB is activated. SUPPLIED ACCESSORIES - AC mains lead TOP AND FRONT PANELS (See 1) 1 p- 3.5 mm stereo headphone socket Helpful hints:The speakers will be muted when headphones are connected to the set. 2 AUX- 3.5 mm LINE-IN jack for external audio appliance 3 STANDBYy- power on/ off switch 4 Source selector - selects CD/ TUNER/ AUX/ TAPE function 5 IR Sensor- infrared sensor for remote control 6 Cassette recorder keys RECORD 0- starts recording PLAY 1- starts playback SEARCH 5/6- fast winds/rewinds tape STOP/OPEN 9/ - opens the cassette compartment - stops the tape PAUSE ;- pauses playback or recording 7 OPEN-CLOSE - press to open/close CD door 8DBB selector - Switches the bass enhancement on / off 9VOLUME - adjusts volume level 0Band selector- selects wavebands !Navigation controls PRESET -,+ - selects a preset tuner station (down, up) 9- stops CD playback; - erases a CD programme SEARCH ∞, § - CD: - searches back and forward within a track; - skips to the beginning of a current track/ previous/ later track Tuner: tunes to radio stations (down, up). MODE - selects different play modes: e.g. REPEAT or SHUFFLE (random) order 2;- starts or pauses CD playback @PROGRAM - CD: programmes tracks and reviews the pro- gramme; Tuner: programmes preset radio stations #Display - shows the status of the set BACK PANEL $Telescopic aerial- improves FM reception %AC MAINS- inlet for mains lead ^Battery compartment- for 6 batteries, type R-20, UM1 or D-cells REMOTE CONTROL 1VOLUME +, –- adjusts volume level (up, down) 2SHUFFLE - plays all CD tracks in random order 32;- starts/ pauses CD playback 4SEARCH 5, 6- searches backwards/ forwards within a track 5PRESET 3,4–- selects a preset radio station (up, down) 6TUNING ∞, §- tunes to tuner stations (down, up) 79- stops CD playback; - erases a CD programme 8¡, ™- skips to the beginning of a current track previous/ subsequent track 9REPEAT - repeats a track /programme/ entire CD CAUTION Use of controls or adjustments or performance of pro- cedures other than herein may result in hazardous radiation exposure or other unsafe operation. IMPORTANT! For users in the U.K.: please follow the instructions on the upper righthand-side. BASIC FUNCTIONS
