Extracted text from philips az 202 service manual (Ocr-read)

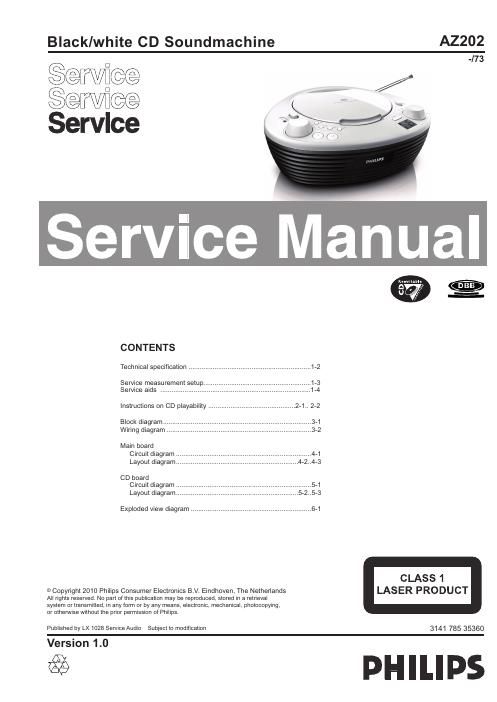

Page 1
Aud ioPlayback -LoaderType:Top -Playback Media : CD, CD- R,CD-RW -Disc Play back M odes: FastForward /Backward , Ne xt/PreviousTrackSearch,RepeatPlay,Shuffle Play -Programm ableTracks :20 Tune r/Recepti on/Transmis sion -TunerBands:FM, MW -Anten na:FMAntenna Sou nd -Ou tputpower(RMS): 2x1W -Sound Enhan cement:DynamicBassBoost -Sound System: Stere o -Spea kerdiameter: 2.5" -Volume C ontrol: rotary Conn ectivity -3.5mm s tere o line in: (MP3 Link) Power-Mainspower: 220V -240V -Batterytype:LR14 -Battery voltage: 1.5 V -Numberofbatteries: 6 Ac cessorie s -Included accessories: ACPowe rCord,User Man ual,Warran tycertificate Dimensio ns -Packag ing dime nsions (W xHxD): 324x284x139mm -Product dime nsions (W xHxD): 297x112x264mm -Weight:1.7kg -Weightincl. Packaging:2.1kg - TECHNICAL SPECIFICATION 1 - 2 Type /Versions : Feature s Board inused : AZ202 Service policy MAIN BOARD CD BOARD *TIPS : C -- Component Lever Repai r. M -- Module Lever Repair-- Used /05 /12 /73 89/ 16/ 85/ Feature di ffrence RDS VO LTAGE SELEC TOR ECO S TANDB Y - DARK Type /Versions : AZ202 /05 /12 /73 89/ 16/ 85/ VERSION VARIATION 39/ 39/ C/M C/M
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
