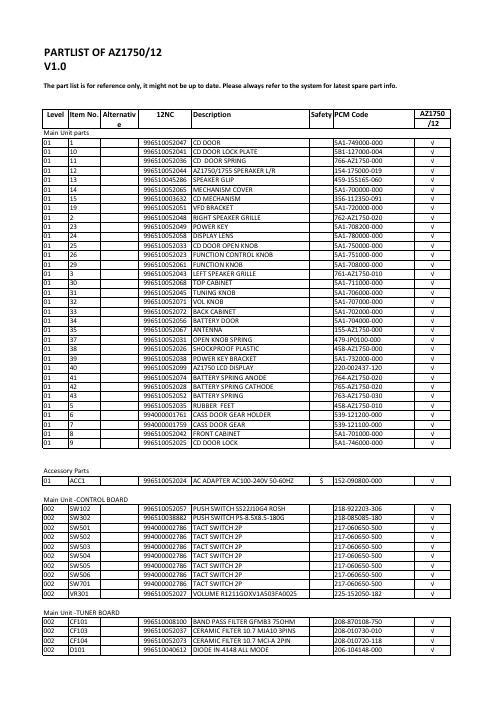

PARTLIST 0F A21750/12
V1.0

The part list is for reference only, it might not be upto date. Please always refer to the system for latest spare part info.

Level Item No. Alternativ 12NC Description Safety PCM Code AZl750
e /12

Main Unit parts

01 1 996510052047 CD DOOR 5A1-749000-000 \l
01 10 996510052041 CD DOOR LOCK PLATE 5B1-127000-004 \l
01 11 996510052036 CD DOOR SPRING 766-A21750-000 \l
01 12 996510052044 AZl750/1755 SPERAKER L/R 154-175000-019 \l
01 13 996510045286 SPEAKER GLIP 459-155165-060 \l
01 14 996510052065 MECHANISM COVER 5A1-700000-000 \l
01 15 996510003632 CD MECHANISM 356-112350-091 \l
01 19 996510052051 VFD BRACKET 5A1-720000-000 \l
01 2 996510052048 RIGHT SPEAKER GRILLE 762-AZl750-020 \l
01 23 996510052049 POWER KEY 5A1-708200-000 \l
01 24 996510052058 DISPLAY LENS 5A1-780000-000 \l
01 25 996510052033 CD DOOR OPEN KNOB 5A1-750000-000 \l
01 26 996510052023 FUNCTION CONTROL KNOB 5A1-751000-000 \l
01 29 996510052061 FUNCTION KNOB 5A1-708000-000 \l
01 3 996510052043 LEFT SPEAKER GRILLE 761-AZl750-010 \l
01 30 996510052068 TOP CABINET 5A1-711000-000 \l
01 31 996510052045 TUNING KNOB 5A1-706000-000 \l
01 32 996510052071 VOL KNOB 5A1-707000-000 \l
01 33 996510052072 BACK CABINET 5A1-702000-000 \l
01 34 996510052056 BATTERY DOOR 5A1-704000-000 \l
01 35 996510052067 ANTENNA 155-AZl750-000 \l
01 37 996510052031 OPEN KNOB SPRING 479-JP0100-000 \l
01 38 996510052026 SHOCKPROOF PLASTIC 458-AZl750-000 \l
01 39 996510052038 POWER KEY BRACKET 5A1-732000-000 \l
01 40 996510052099 A21750 LCD DISPLAY 220-002437-120 \l
01 41 996510052074 BATTERY SPRING ANODE 764-AZl750-020 \l
01 42 996510052028 BATTERY SPRING CATHODE 765-A21750-020 \l
01 43 996510052052 BATTERY SPRING 763-A21750-030 \l
01 5 996510052035 RUBBER FEET 458-AZl750-010 \l
01 6 994000001761 CASS DOOR GEAR HOLDER 539-121200-000 \l
01 7 994000001759 CASS DOOR GEAR 539-121100-000 \l
01 8 996510052042 FRONT CABINET 5A1-701000-000 \l
01 9 996510052025 CD DOOR LOCK 5A1-746000-000 \l

Accessory Parts

|01 lACCl 996510052024 AC ADAPTER AC100-240V 50-60HZ I $ l15Z-090800-000 \/

Main Unit -CONTROL BOARD

002 SW102 996510052057 PUSH SWITCH SSZ2J10G4 ROSH 218-922203-306 \/
002 SW302 996510038882 PUSH SWITCH PS-85X8.5-1SOG 218-085085-180 \/
002 SW501 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW502 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW503 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW504 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW505 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW506 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 SW701 994000002786 TACT SWITCH 2P 217-060650-500 \/
002 VR301 996510052027 VOLUME R121160XV1A503FA0025 225-152050-182 \/
Main Unit -TUNER BOARD

002 CF101 996510008100 BAND PASS FILTER GFMBS 750HM 208-870108-750 \/
002 CF103 996510052037 CERAMIC FILTER 10.7 MJA10 3P|NS 208-010730-010 \/
002 CF104 996510052073 CERAMIC FILTER 10.7 MCI-A ZPIN 208-010720-118 \/
002 D101 996510040612 DIODE IN-4148 ALL MODE 206-104148-000 \/
