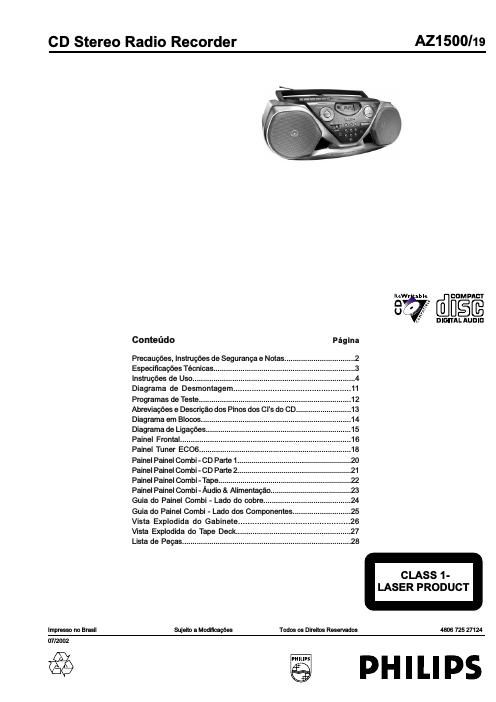

CD Stereo Radio Recorder

AZ1500/19

Conteﬂdo

Precaugoes, Instrugées de Seguranoa e Notas
Especificaooes Técnicas
Instrugées de Uso ..........
Diagrama de Desmontagem.
Programas de Teste ..............
Abreviagﬁes e Descrigao dos Pinos dos Cl's do CD
Diagrama em Blocos...
Diagrama de Ligagéest
Painel Frontal ........
Painel Tuner ECO6
Painel Painel Combi - CD Parte1..
Painel Painel Combi - CD Parte 2..
Painel Painel Combi -Tape .........................
Painel Painel Combi -Audio & Alimentagéo
Guia do Painel Combi - Lado do cobre ................
Guia do Painel Combi - Lado dos Componentes..
Vista Explodida do Gabinete..
Vista Explodida do Tape Deckm
Lista de Peqas ................................................................................. 28

DIGITAL AUDICI

CLASS 1-

LASER PRODUCT

K317

PHILIPS
