Extracted text from philips az 1316 owners manual (Ocr-read)

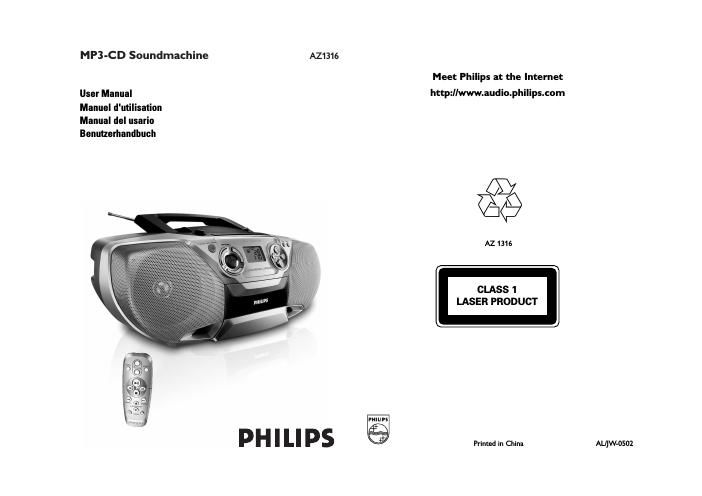

Page 1
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: -Remove fuse cover and fuse. -Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type. -Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the dis- tribution board should not be greater than 5A. Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere. How to connect a plug The wires in the mains lead are coloured in accor-dance with the following code: BLUE – "NEUTRAL" ("N") and BROWN – "LIVE" ("L"). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows: -The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK. -The BROWN wire must be connected to the terminal which is marked with the letter "L" or coloured RED. -Do not connect either wires to the earth terminal in the plug which is marked by the letter "E" or by the safety earth symbol or coloured green or green-and-yellow. Before replacing the plug cover, make certain that the cordgrip is clamped over the sheath of the lead – not simply over the two wires. Copyright in the U.K. Recording and playback of material may require consent. See Copyright Act 1956 and The Performers Protection Acts 1958 to 1972. Environmental information We have done our best to reduce the packaging and make it easy to separate into 3 materi- als:cardboard, expandable polystyrene, polyethylene. Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging, exhausted batteries and old equipment. This set complies with the radio interference requirements of the European Union. Fitting a mains plug (U.K. only)
Page 2
ACMAINS~ 1 2 3 4 5 7 89 6 0 ! @ See A VOLUME SEARCH ALBUM/PRESET TUNING REPEAT SHUFFLE SEARCH 1 9 8 6 7 2 4 3 5 + - 1 PRESET MHz FM TUNER 2 CD TRK ALB MP3 3 CDREP PROGALL TRK MP3 CD SHUF TRK CD PROG TRK ALB MP3 6 CD PROG TRK ALB MP3 7 8 A A B C 9 X A 4 5
