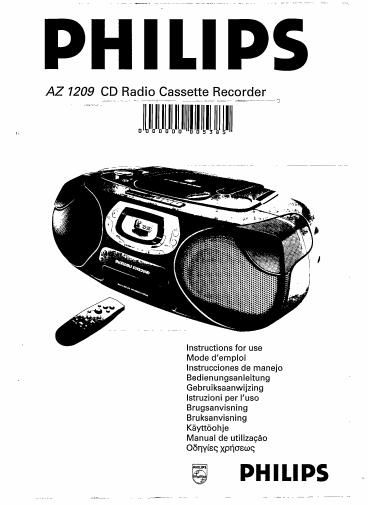

Philips az 1209 owners manual

Page 2

Important notes for users in the U.K.

Norge

Mains plug
This apparatus rs fitted with an approved 13 Amp plug.
To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse,

2 fix new fuse which should be 2 831362 5 Amp,
A SJA or BS! approved type.

3 Refit the fuse oover.

If the fitted plug is not suitable for your socket outlets.
it should be cutoff and an appropriate plug fined in its
place. If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse is used,
the fuse at the distribution board should not be greater
than 5 Amp.

Note: The severed plug must be disposed of to avoid a
possible shock hazard should It be inserted into a
13 Amp socket elsewhere

How to connect a plug

The wires in the mains lead are coloured with the

followrng code blue = neutral (N), hrotm = live 1L] As

these colours may not correspond With the colour
markings identifying the tennrnals in your plug,
proceed as follows:

- Connect the blue wire to the terminal marked N or
coloured black

- Connect the brown wire to the terminal marked L or
coloured red.

0 Do not connect eilherwue to the earth terminal in
the plug, marked Elor +) or coloured green (or green I
and yellow).

Before replacing the plug cover, make certain that the

cord grip is clamped over the sheath of the lead - not

simply over the two wires.

Copyright in the U.K.

Recording and playback of material may require
consent. See Copyright Act 1956 and The Performers
Protection Acts 1958 to 1972.

Typeskilt finnes pa apparatens underside

Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke frakoplet
nettet sa lenge apparatet er tilsluttet
nettkontalxtenr

For a redusere faren for hrann eller elelmisk slot.
skal apparatet ikke utsettes for regn eller fuktighet.

Deutschland

ljierrnit wrrd bescheinigt daE dieses Gerat in
Ubereinstimrnung mit den Bestimmungen der
Amtsblattverfugung 1046/1984 funkentstort isL

Der Deutschen Bundespostwurde das
Inverkehrbringen dieses Gerates angezeigt und die
Berechtigung zur Uberprfifung der Serie auf
Einhaltung der Bestlmmun gen eingerau mt

ltalia

DIBHIARAZIDNE Dl CONFORMITA'

St dichiara che l'apparecchio Lenore (ED/Radio-
registratore mod. AZIZOB Philips nsponde alle
prescrizroni dellart. 2 comma 1 del D. M. 28 Agosto
1995 no 548.

Fatto a Eindhoven. il 22/07/1937
Philips Sound a Vision

Philips. Glaslaan 2, SPF 10
5616 JB Eindhoven. The Netherlands
