Philips az 1048 service manual

This is the 18 pages manual for philips az 1048 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 18

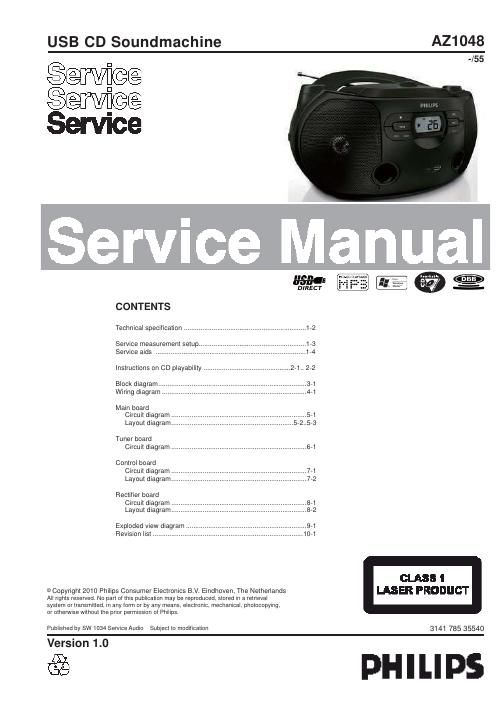

Extracted text from philips az 1048 service manual (Ocr-read)

Page 1

TECHNICAL SPECIFICATION 1 - 2 Tape deck Frequency response - Normal tape (type I)125 - 80 0 0 Hz (8 dB) Signal-to-noise ratio - Normal tape (type I)40 dBA Wow and flutter <0.4% JIS General Dimensions (main unit) ( W x H x D)320 x 275 x 175 mm Weight (main unit) 1.7 kg y l p p u s r e w o PDC: 9V 1.5A AC: 230V Power consumption - Ac tive - Standby<12 W 0.7W t u p t u o r e w o P1W x 2 RMS Operating temperature range - 10 °C - +50 °C 14 °F - 122 °F Disc e p y T r e s a L Semiconductor r e t e m a i D c s i D12cm/8cm c s i D t r o p p u S CD-DA , CD-R , CD-RW, MP3-CD, WMA-CD C A D o i d u A 24Bits / 44.1kHz Total Harmonic Distor tion <1% Frequency Response 60Hz -16kHz o i t a R N / S>62dBA Tu n e r e g n a R g n i n u T FM: 87. 5 - 108MHz; MW: 530 - 160 0kHz Total Harmonic Distor tion <3% Signal to Noise Ratio >50 dB

Page 2

1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50: Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50: Tuner FM MEASUREMENT SETUP
