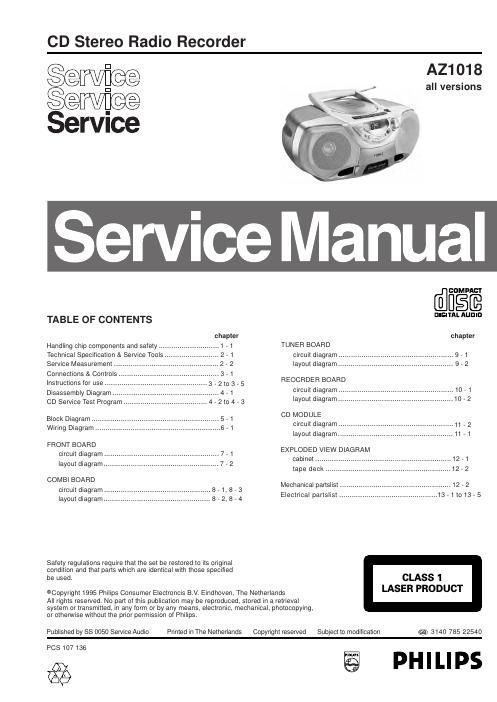

Philips az 1018 service manual

Page 2

PCS 107 137 2-1 SERVICE TOOLS TORX T10 screwdriver with shaftlength 150mm .........................................4822 395 50423 TORX screwdriver set SBC 163 ...............................................................4822 295 \ 50145 Audio signal disc SBC 429 ........ ..............................................................4822 397 3\ 0184 Playability test disc SBC 444 ...................................................................4822 \ 397 30245 Test disc 5 (disc without errors ) + Test disc 5A (disc with dropout errors, black spots and fingerprints) SBC 426/426A .....................................................................482\ 2 397 30096 Burn in test disc (65 min. 1kHz signal at -30 dB level without pause) .....4822 397 30155 Universal test cassette Fe SBC 420 ........................................................4822 397 30071 anti-static table mat large 1200x650x1.25mm 4822 466 10953 small 600x650x1.25mm 4822 466 10958 anti-static wristband 4822 395 10223 connection box (3 press stud connections, 1M Ω) 4822 320 11307 extendible cable (2m, 2M Ω, to connect wristband to connection box) 4822 320 11305 connecting cable (3m, 2M Ω, to connect table mat to connection box) 4822 320 11306 earth cable (1M Ω, to connect any product to mat or to connection box) 4822 320 11308 KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671 wristband tester 4822 344 13999 AVAILABLE ESD PROTECTION EQUIPMENT TECHNICAL SPECIFICATIONS GENERAL Mains voltage -/00/05/14 :230 V -/01/11/16 :120 / 230 V -/17 :120 V Mains frequency -/00/05/14 :50 Hz -/01/11/16 :50 / 60 Hz -/17 :60 Hz Battery mains :9 V (R20 x 6) Power consumption :5 W Dimension (W x H x D) :400 x 237 x 162mm Weight :3.4 Kg AMPLIFIER Output power mains :2 x 1 W battery :2 x 1 W Speaker impedance :2 x 8 ohm Frequency response :100 Hz - 10 kHz (±3dB) TUNER - FM SECTION Tuning range :87.5 - 108 MHz IF frequency :10.7 MHz ± 0.2 MHz Sensitivity : 18 dBf at 26dB S/N Selectivity : 24 dB at 300kHz IF rejection : 85 dB Image rejection : 24 dB TUNER - AM SECTION Tuning range :531 - 1602 kHz -/17 :530 - 1700 kHz IF frequency :468 kHz ± 3 kHz Sensitivity :3200 µV/m at 26dB S/N Selectivity :22 dB IF rejection :64 dB Image rejection :32 dB AUDIO CASSETTE RECORDER Number of tracks :1 stereo Tape speed :4.76 cm/sec ± 3% Wow & flutter :< 0.48 JIS UWTD Fast wind/ rewind C60 :110 sec. Frequency response P/B :125 - 8000 Hz S/N ratio : > 36 dB COMPACT DISC Frequency response :100 Hz - 10 kHz S/N ratio :60 dB Channel difference 1 kHz :2 dB Channel crosstalk 1 kHz :40 dB Laser wavelength :780 ± 20 nm Laser light power :< 0.5 mW
