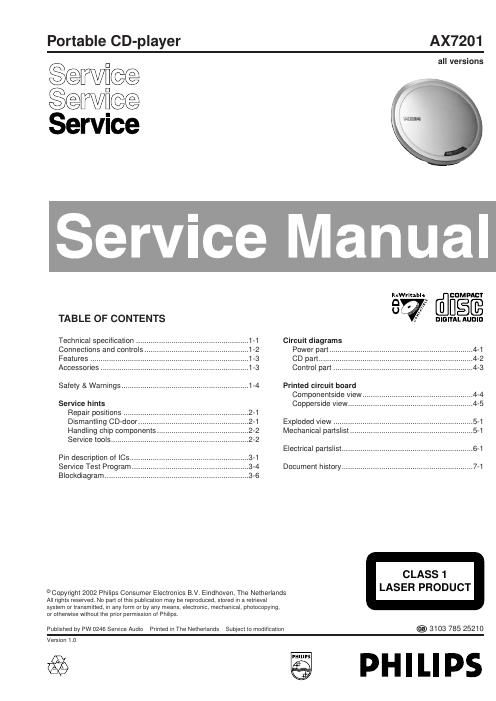

Philips ax 7201 service manual

Page 2

1-2 CONNECTIONS AND CONTROLS Portable CD-player AX7201 14.5V DC ..........jack for AC/DC adaptor power supply 2EXT. BATT ......jack for external battery supply 3p/LINE OUT ....connect the remote control here and your headphones to the remote control. Insert the supplied headphone jack adaptor(for some versions only) first, if you want to connect the headphones direct, or want to connect the player to another audio input of an additional appliance. 4OFF .................switches RESUME and HOLD off RESUME.........stores the last position played HOLD ..............locks all buttons 52;...................switches the player on, starts or pauses CD play 69.....................stops CD play, clears a program or switches the player off 7°....................skips and searches CD tracks backwards ¤....................skips and searches CD tracks forwards 8+ ......................volume up Ð ......................volume down 9¥ ¥ ¥ ¥ 2............opens the CD lid 0........................type plate Remote Control AY3774 1p......................3.5mm headphone jack 2Clip 3HOLD ..............locks all buttons 4VOL (3,4) .......adjusts the volume 2;...................switches the set on, starts and pauses playback °/ ¤..............skips and searches backward / forward tracks 59.....................stops playback and switches the set off 6DBB.................switches the bass enhancement on and off 7PROG .............programs tracks and reviews the program 8MODE .............selects the different playing possibilities 9DISPLAY
