Philips ax 5006 ax 5011 ax 5012 ax 5013 ax 5014 ax 5015 ax 5016 ax 5017 ax 5018 ax 5019
This is the 23 pages manual for philips ax 5006 ax 5011 ax 5012 ax 5013 ax 5014 ax 5015 ax 5016 ax 5017 ax 5018 ax 5019.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips ax 5006 ax 5011 ax 5012 ax 5013 ax 5014 ax 5015 ax 5016 ax 5017 ax 5018 ax 5019 (Ocr-read)

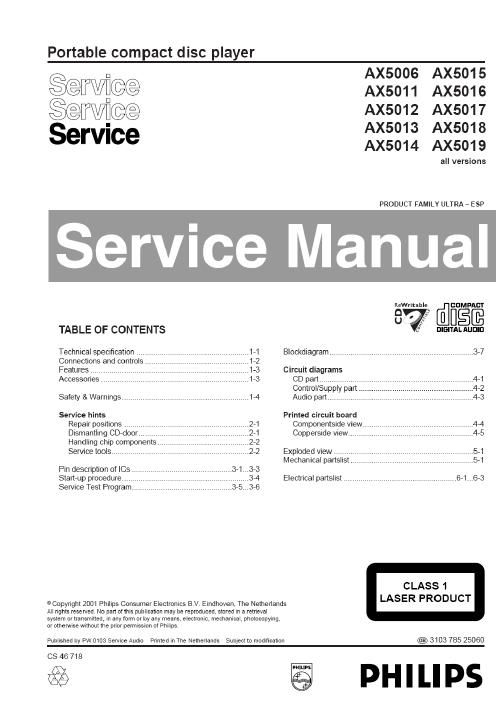

Page 1
1-1 CS 46 719 TECHNICAL SPECIFICATION General Dimensions (WxHxD) : 128x28x139.5mm Weight without batteries : 212g Power supply modes DC-in socket : 2.9-8.0V Primary batteries (2xLR6) : 1.6-3.6V Rechargable batteries (AY3362) : 1.6-3.6V Battery lifetime Battery level detection Charge section (not on all versions) Charge current : 250mA ±10% Charge time for 80% AY3362 : 4.0h nom. Charge time for 100% AY3362 : 6.0h nom. Max. charge time (µP controlled) : 7h Temperature protection : 50¡C ±5¡C Current consumption Shock resistance +X/-X direction :³2.5g +Y/-Y direction :³2.5g +Z/-Z direction :³2.0g Headphone out (measured with 16½load, DBB/ESP off) Output power (THD=10%) /17 version only : 2x12mW (+1/-3dB) all other versions : 2x6mW (+1/-3dB) Frequency response (1mW) : 100Hz-20kHz within 6dB S/N ratio (unwght) :³80dB (83dB typ.) S/N ratio (A-wght) :³82dB (85dB typ.) THD+N (1kHz, 1mW) :²1% (0.2% typ.) Channel crosstalk (1kHz, no load) :²-24dB (-44dB typ.) Channel unbalance (-40dB) :²5dB Volume attenuation (1kHz) :³60dB Dynamic Bass Boost DBB Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Measurement setup Use Audio Signal disc SBC429 4822 397 30184 Low pass filter DUT S/N and distortion meter L R i.e. Sennheiser UPM550 with FF-filter Level meter i.e. Sound Technology ST1700B i.e. 4822 395 3020422kHz 13th order E G A T S B B De s n o p s e r y c n e u q e r F z H k 3 6zH k 1zH k 0 1 1 B B DBd 6 +±B d 2Bd 0±B d 2Bd 0±B d 2 2 B B DBd 9 +±B d 2Bd 0±B d 2Bd 5 +±B d 2 E D O M N O I T A R E P O) V 5 . 4 ( Y L P P U S N I - C D)V 5 2 . 2 ( Y L P P U S . T T A B F F O P S ENO P S EFF O P S ENO P S E e d o m - y a l P.p y t A m 0 0 1.p y t A m 0 0 1.p y t A m 0 2 1.p y t A m 0 2 1 e d o m - p m u J.p y t A m 0 2 2.p y t A m 0 2 2.p y t A m 0 0 3.p y t A m 0 0 4 y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 0 305m. p y t A L E V E L N O I T C E T E Dse i r e t t a b y r a m i r Pse i r e t t a b e l b a g r a h c e R y t p m e y r e t t a BV 8 . 1 V m 0 5 - / 0 0 1 +V 8 . 1 V m 0 5 - / 0 0 1 + 1 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 5 8 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 6 . 0±V m 0 0 1 2 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 5 5 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 4 . 0±V m 0 0 1 3 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 5 2 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 2 . 0±V m 0 0 1 E P Y T Y R E T T A BFF O P S ENO P S E s e i r e t t a b y r a m i r P 6 R L x 2³h 4 1 ) . p y t h 0 2 (³h 4 1 ) . p y t h 0 2 ( s e i r e t t a b e l b a g r a h c e R ) h A m 0 0 2 1 ( 2 6 3 3 Y A³h 7 ) . p y t h 5 . 9 (³h 7 ) . p y t h 5 . 9 (
Page 2
1OPEN 2..........opens the CD lid 22;...................switches the player on, starts or pauses CD play 39.....................stops CD play, clears a program or switches the player off 4¤....................skips and searches CD tracks forwards 5ESP .................Electronic Skip Protection ensures continuous CD playback regardless of vibrations and shocks 6MODE .............selects the different playing possibilities: SHUFFLE , SHUFFLE REPEAT ALL , REPEAT , REPEAT ALL and SCAN 7........................display 8PROGRAM .....programs tracks and reviews the program 9BASS ..............switches the bass enhancement on and off. This button also switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds0°....................skips and searches CD tracks backwards !RESUME.........stores the last position of a CD track played HOLD ..............locks all buttons OFF .................switches RESUME and HOLD off @LINE OUT/p....3.5mm headphone socket, socket to connect the player to another audio input of an additional appliance, remote control socket (not on all versions) #VOL E..........adjusts the volume $4.5V DC ..........socket for external power supply %........................typeplate ^........................belt clip holder 1-2 CS 46 720 CONNECTIONS AND CONTROLS 3 4 5 6 7 8 9 0 ! @ # 1 2 $ % ^ TROUBLESHOOTING (excerpt from the Instruction For Use) Problem Possible cause Solution No power, Batteries playback does Batteries inserted incorrectly Insert the batteries not startcorrectly Batteries are empty Change the batteries Contact pins are dirty Clean them with a cloth Mains adapter Loose connection Connect the adapter securely In-car use Cigarette lighter is not Switch on ignition or insert powered when ignition is off batteries nF d1SCCD-RW (CD-R) is not Use FINALIZE on the indicationrecorded properly CD Recorder to complete the recording no d1SCThe CD is badly scratched Replace or clean the CD indicationor dirty CD is not or incorrectly inserted Insert a CD, label upwards The laser lens is steamed up Wait until the lens has cleared Hold HOLD is activated Deactivate HOLD indication Electrostatic discharge Disconnect the set from and/or power supply or take out no reaction the batteries for a few to controls seconds Problem Possible cause Solution CD skips tracksThe CD is damaged or dirty Replace or clean the CD RESUME , SHUFFLE or PROGRAM Switch RESUME , SHUFFLE is active or PROGRAM off No sound orPAUSE is activated Press 2; bad sound Loose, wrong or dirty Check and clean quality connections connections Volume is not adjusted Adjust the volume Malfunctions due to nearness Keep the player away from of active mobile phones active mobile phones Strong magnetic fields near Change the playerÕs the player position or connections In-car use Cassette adapter is inserted Insert the cassette adapter incorrectly correctly Temperature inside the car Let the player adjust to is too high/low the temperature Cigarette lighter socket Clean the cigarette is dirty lighter socket Wrong playback direction of Change the autoreverse the car cassette playerÕs direction autoreverse feature
