Philips ax 3201 service manual

This is the 28 pages manual for philips ax 3201 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 28

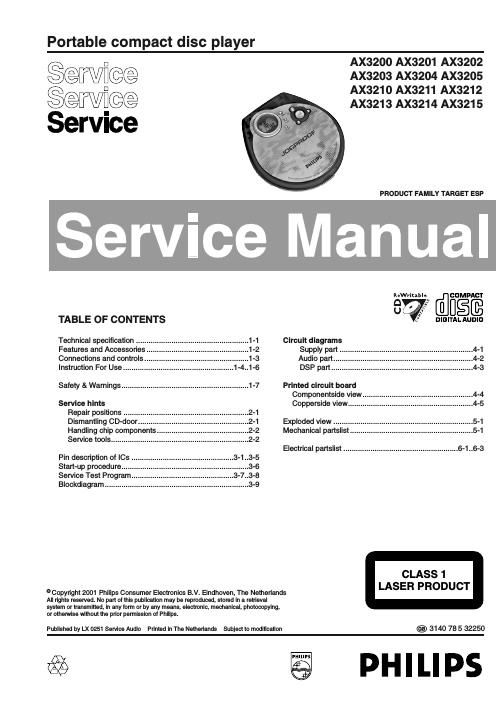

Extracted text from philips ax 3201 service manual (Ocr-read)

Page 1

1-1 TECHNICAL SPECIFICATION General Dimensions (WxHxD) : 128x30x139.5mm Weight without batteries : 220g Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Shock resistance +X/-X direction :-2.5g +Y/-Y direction :-2.5g +Z/-Z direction :-2.0g Power supply modes Battery lifetime Battery level detection – CD mode Current consumption Charge section(not on all versions) Charge current : 250mA ±10% Max. charge time (µP controlled) : 7h Temperature protection : 50°C ±5°C Headphone out (measured with 16Ÿload, DBB/ESP off) Output power (THD=10%) /17 version only : 2x4mW (+2/-2dB) all other versions : 2x2mW (+2/-2dB) Frequency response (1mW) : 100Hz-20kHz within 6dB S/N ratio (unwght) :-76dB (80dB typ.) S/N ratio (A-wght) :-78dB (82dB typ.) THD+N (1kHz, 1mW) :1% (0.2% typ.) Channel crosstalk(1kHz,w/o load) :-40dB (-44dB typ.) Channel unbalance (-40dB) :5dB Volume attenuation (1kHz) :-60dB Dynamic Bass Boost DBB Measurement setup CD Use Audio Signal disc SBC429 4822 397 30184 Low pass filter 22kHz L R LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion metere.g. Sound Technology ST1700B DUT E G A T S B B D e s n o p s e r y c n e u q e r F z H k 3 6 z H k 1 z H k 0 1 BB D +8dB±2dB±2dB 0dB 0dB±2dB E D O M N O I T A R E P O ) V 5 . 4 ( Y L P P U S N I - C D ) V 5 2 . 2 ( Y L P P U S . T T A B save r e w o P N O P S E save r e w o P N O P S E e d o m y a l P D C.p y t A m 0 8.p y t A m 0 0 1.p y t A m 0 0 1.p y t A m 0 2 1 e d o m p m u J D C.p y t A m 0 2 2.p y t A m 0 2 2.p y t A m 0 0 3.p y t A m 0 0 4 e d o m CHARGE .p y t A m 0 30 y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 0 305 3µ. p y t A n/a n/a L E V E L N O I T C E T E D s e i r e t t a b y r a m i r P s e i r e t t a b e l b a g r a h c e R y t p m e y r e t t a BV 8 . 1 V m 0 5 - / 0 0 1 +V 8 . 1 V m 0 5 - / 0 0 1 + 1 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 5 7 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 7 . 0±V m 0 0 1 2 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 5 4 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 . 0±V m 0 0 1 3 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 3 . 0±V m 0 0 1+ l e v e l y t p m e y r e t t a b V 3 . 0±V m 0 0 1 E P Y T Y R E T T A B E D O M D C IN M PS E D O M D C N =O P S E s e i r e t t a b y r a m i r P 6 R L x 2*h 9 1 ) . p y t h 24 (*h 6 1 ) . p y t h 21 ( s e i r e t t a b e l b a g r a h c e R ) h A m 0 0 2 1 ( 2 6 3 3 Y A*h ) . p y t h 2 1 (*h 8 ) . p y t h 0 1 ( 10 E D O M Y L P P U S e g n a r e g a t l o V DC-in socket Primary batteries 2 xLR6 Rechargable batteries AY3362 (1200mAh)2.9 - 6.0V 1.7 - 3.6V 1.7 - 3.6V

Page 2

1 - 2 AX3200/00C AX3200/00Z AX3201/00C AX3201/01 AX3201/05Z AX3201/10 AX3202/00C AX3205/10 AX3205/16 AX3211/17 AX3212/17 AX3214/17 AX3215/17 CD-RW COMPATIBILITY ELECTRONIC SKIP PROTECTION ESP DRAM SIZE [Mbit] HOLD / RESUME FUNCTION DBB STAGES ACOUSTIC FEEDBACK PROGRAM MEMORY RECHARGE NiCd / NiMH BELT-CLIP CORD REMOTE CONTROL LINE / OPT. DIGITAL OUTPUT 45s 16 / 1 30 --/-- -- FEATURES OF CD-PORTABLE PRODUCT FAMILY FOCUS ESP 45s 16 / 1 30 -- 45s 16 / 1 30 -- 16 / 1 30 -- 16 / 1 30 -- 45s / 1 30 -- 45s 16 / 1 30 -- 45s 16 / 1 30 / 45s 16 / 1 30 --/-- -- -- 45s 16 / 1 30 45s 16 / 1 30 --/-- -- 45s 16 / 1 30 --/-- 45s 16 / 1 30 --/-- -- AX3200 AX3201 AX3211 AX3214 /00c /00z /00c /05z/01 /10 /00c /10 /16 /17 /17 /17 /17 X OO AY3170/00 AC/DC Adaptor AY3170/02 AC/DC Adaptor AY3170/05 AC/DC Adaptor AY3170/10 AC/DC Adaptor AY3170/12 AC/DC Adaptor AY3170/17 AC/DC Adaptor AY3266/00 Pouch (Neoprene) AY3362/00 Rechargable Batt. NiMH AY3464 HiFi Cord (3.5mm L-plug -cinch) AY3501/00 Car Adaptor Cassette AY3545/00 Car DC/DC Converter AY3768/00 Cord Remote Control HE205/77 Headphone HE205/77s Headphone (S-plug) HL351/77 Headphone HS383/77s Headphone (S-plug) BELT-CLIP X...supplied with the set, O...optional available ACCESSORIES FOR CD-PORTABLE 4822 219 10617 4822 219 10676 4822 219 10672 4822 219 10681 4822 219 10671 4822 219 10616 3140 113 10360 3103 308 84120 4822 320 11881 4822 397 10059 4822 219 10033 3140 118 50980 9082 100 00615 9082 100 00616 9082 100 00639 9082 100 01821 3103 304 70250 XX XX X XXX X X X X XX XX X X XX XX XX X X X X X --/--45s45s 16 --/----/-- --/-- --/-- --/-- --/-- -- --/-- --/----/-- --/----/-- --/----/----/-- --/----/----/----/-- --/-- PRODUCT FAMILY FOCUS ESP AX3205 AX3202 AX3212 AX3215 AY3545/17 Car DC/DC Converter 3140 118 32970X XX XX X OOOO O O OO O OOOO OOOOOO OOOOO O OO OOOO O O O OO XX X X OOOO OO O OO OOO X X OO ACCESSORIES FEATURES
