Extracted text from philips ax 2330 owners manual (Ocr-read)

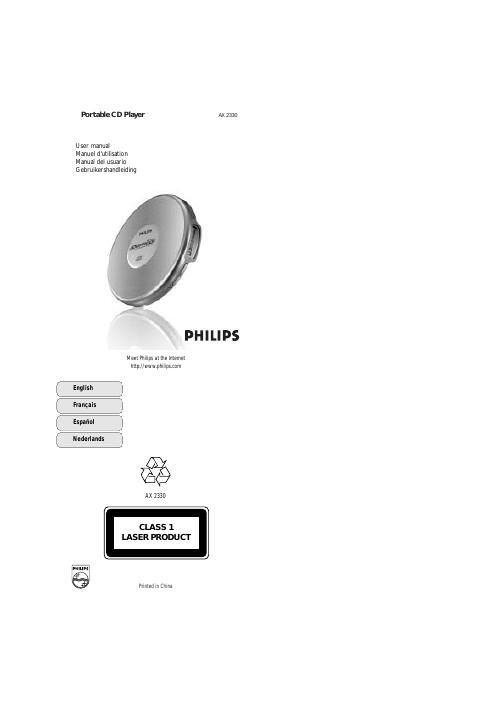

Page 1
1 1 @ ! 5 6 74 83 2 0 9 # $$ 2 3 QUICK START MISE EN SERVICE RAPIDE
Page 2
English CONTROLS / POWER SUPPLY 1............................display 2∞.......................skips and searches CD tracks backwards 3§.......................skips and searches CD tracks forwards 4PROG...................programs tracks and reviews the program 5MODE .................selects the different playing possibilities: SHUFFLE , SHUFFLE REPEAT ALL , REPEAT , REPEAT ALL and SCAN 62;......................switches the player on, starts or pauses CD play 79.........................stops CD play, clears a program or switches the player off 8LINE OUT/p........3.5 mm headphone socket, socket to connect the player to another audio input of an additional appliance. 94.5V DC...............socket for external power supply 0VOL E............adjusts the volume !DBB .....................switches the bass enhancement on and off. This button also switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds @2 OPEN ..............opens the CD lid #RESUME .............stores the last position of a CD track played HOLD...................locks all buttons OFF ......................switches RESUME and HOLD off $............................type plate CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure. POWER SUPPLY / GENERAL INFORMATION Use only the adapter (4.5 V / 450 mA direct current, positive pole to the center pin). Any other product may damage the player. 1Make sure the local voltage corresponds to the power adapters voltage. 2Connect the power adapter to the 4.5V DC socket of the player and to the wall socket. Note: Always disconnect the adapter when you are not using it. Environmental information -All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into two materials: cardboard (box) and polyethylene (bags, protective foam sheet). -Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment. This product complies with the radio interference requirements of the European Union. Batteries (supplied or optionally available) You can use the following batteries with this CD-player: -normal batteries typeLR6, UM3orAA, or -alkaline batteries type LR6, UM3orAA. Notes:– Old and new or different types of batteries should not be combined. – Remove batteries if they are empty or if the player is not going to be used for a long time. Inserting batteries (see figure 3) 1Push OPEN2to open the CD lid. 2Open the battery compartment and insert either 2 normal or alkaline batteries. Battery indication The approximate power level of your batteries is shown in the display. Battery full Battery two-thirds full Battery one-third full Battery dead or empty.When the batteries are dead or empty, the symbolA flashes, bAttis displayed, and the beep tone sounds repeatedly. Batteries contain chemical substances, so they should be disposed of properly. Both the model number and production number are located on the bottom of the set. -Do not touch the lensAof the CD player. -Do not expose the unit, batteries or CDs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). -You can clean the CD player with a soft, slightly dampened, lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect. -To clean the CD, wipe it in a straight line from the center toward the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! Never write on a CD or attach a sticker to it. -The lens may cloud over when the unit is moved suddenly from cold to warm surroundings. Playing a CD is not possible then. Leave the CD player in a warm environment until the moisture has evaporated. -Active mobile phones in the vicinity of the CD player may cause malfunctions. -Avoid dropping the unit as this may cause damage. Headphones HE 035 -Connect the supplied headphones to the LINE OUT/p jack of the player. Note:LINE OUT/pcan also be used for connecting this set to your HiFi system.To adjust the sound and volume, use the controls on the connected audio equipment and on the CD player. IMPORTANT! Hearing safety: Do not play your headphones at a high volume. Hearing experts advise that continuous use at high volume can permanently damage your hearing. Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard and it is illegal in many countries. Even if your headphones are an open-air type designed to let you hear outside sounds, do not turn up the volume so high that you cannot hear what is going on around you. CD player and CD handling CONTROLS ( see figure 1, 2) Mains adapter (supplied or optionally available)
