Extracted text from philips ax 2100 service manual (Ocr-read)

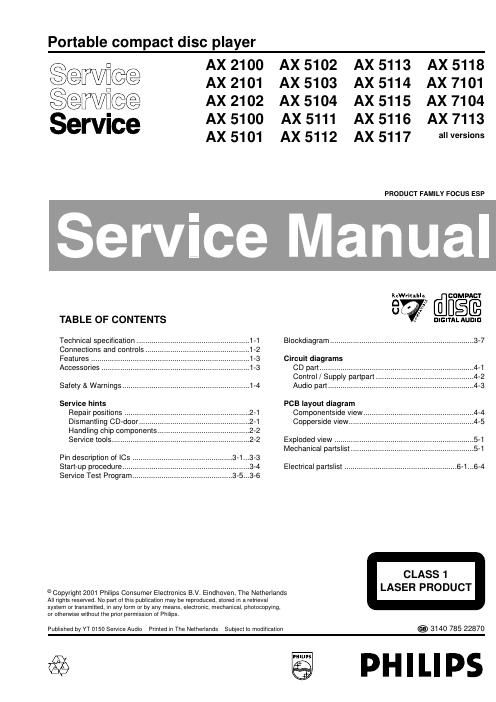

Page 1
1-1 General Dimensions (WxHxD) : 129x26x140mm Weight without batteries : 220g Power supply modes DC-in socket : 2.5-6.0V Primary batteries (2xLR6) : 1.7-3.6V Rechargable batteries (AY3362) : 1.7-3.6V Battery lifetime Battery level detection Charge section (not on all versions) Charge current : 250mA ±10% Charge time for 80% AY3362 : 4.0h nom. Charge time for 100% AY3362 : 6.0h nom. Max. charge time (µP controlled) : 7h Temperature protection : 50°C ±5°C Current consumption CDDA-playback Shock resistance +X/-X direction : ≥2.5g +Y/-Y direction : ≥2.5g +Z/-Z direction : ≥2.0g Headphone out (measured with 16Ω load, DBB/ESP off) Output power (THD=10%) /17 version only : 2x12mW (+1/-3dB) all other versions : 2x6mW (+1/-3dB) Frequency response (1mW) : 100Hz-20kHz within 6dB S/N ratio (unwght) : ≥80dB (83dB typ.) S/N ratio (A-wght) : ≥82dB (85dB typ.) THD+N (1kHz, 1mW) : ≤1% (0.2% typ.) Channel crosstalk (1kHz, no load) : ≤-24dB (-44dB typ.) Channel unbalance (-40dB) : ≤5dB Volume attenuation (1kHz) : ≥60dB Dynamic Bass Boost DBB Laser Output power : <5mW (3mW typ.) Wavelength : 780nm Measurement setup Use Audio Signal disc SBC429 4822 397 30184 Low pass filter 22kHz L R LEVEL METER e.g. Sennheiser UPM550 with FF-filter S/N and distortion meter e.g. Sound Technology ST1700B DUT N ! ) = 2=+12 : ; L.P.F. = 13 th order filter 4822 395 30204 E G A T S B B D e s n o p s e r y c n e u q e r F z H k 3 6 z H k 1 z H k 0 1 1 B B D B d 8 + ±B d 2 B d 0 ±B d 2 B d 0 ±B d 2 E D O M N O I T A R E P O ) V 5 . 4 ( Y L P P U S N I - C D ) V 5 2 . 2 ( Y L P P U S . T T A B F F O P S E N O P S E F F O P S E N O P S E e d o m - y a l P.p y t A m 0 0 1.p y t A m 0 0 1.p y t A m 0 2 1.p y t A m 0 2 1 e d o m - p m u J.p y t A m 0 2 2.p y t A m 0 2 2.p y t A m 0 0 3.p y t A m 0 0 3 e d o m - e g r a h C.p y t A m 0 0 4a/ n g n i t h g i l k c a B ) l a n o i t i d d a (. p y t A m 0 5.p y t A m 0 5 y b - d n a t S ) e g r a h c e r . l c x e (. p y t A m 0 305 µ . p y t A L E V E L N O I T C E T E D s e i r e t t a b y r a m i r P s e i r e t t a b e l b a g r a h c e R y t p m e y r e t t a BV 8 . 1 V m 0 5 - / 0 0 1 +V 8 . 1 V m 0 5 - / 0 0 1 + 1 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 9 . 0 ± V m 0 0 1+ l e v e l y t p m e y r e t t a b V 7 . 0 ± V m 0 0 1 2 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 6 . 0 ± V m 0 0 1+ l e v e l y t p m e y r e t t a b V 5 . 0 ± V m 0 0 1 3 k a e w y r e t t a B+ l e v e l y t p m e y r e t t a b V 3 . 0 ± V m 0 0 1+ l e v e l y t p m e y r e t t a b V 3 . 0 ± V m 0 0 1 E P Y T Y R E T T A B O P S E N Power Save ON s e i r e t t a b y r a m i r P 6 R L x 2 s e i r e t t a b e l b a g r a h c e R ) h A m 0 0 2 1 ( 2 6 3 3 Y A 25 hours 22 hours 10 hours 9 hours TECHNICAL SPECIFICATION
Page 2
1-2 CONNECTIONS AND CONTROLS AX21.. & AX51.. 1OPEN2..............opens the CD lid 29......................stops CD play, clears a program or switches the player off 3∞.....................skips and searches CD tracks backwards 42;....................switches the player on, starts or pauses CD play 5§.....................skips and searches CD tracks forwards 6DBB .................switches the bass enhancement on and off. This button also switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds 7........................display 8PROGRAM ......programs tracks and reviews the program 9MODE..............selects the different playing possibilities: SHUFFLE , SHUFFLE REPEAT ALL , REPEAT , REPEAT ALL and SCAN 0RESUME .........stores the last position of a CD track played HOLD ..............locks all buttons OFF .................switches RESUME and HOLD off !LINE OUT/p....3.5 mm headphone socket, socket to connect the player to another audio input of an additional appliance, remote control socket (not on all versions) @VOL E..........adjusts the volume #4.5V DC ...........socket for external power supply $........................belt clip holder %........................typeplate AX71.. 1OPEN2..............opens the CD lid 22;....................switches the player on, starts or pauses CD play 39......................stops CD play, clears a program or switches the player off 4§.....................skips and searches CD tracks forwards 5ESP .................ELECTRONIC SKIP PROTECTION ensures continues CD playback regardless of vibrations and shocks 6MODE..............selects the different playing possibilities: SHUFFLE , SHUFFLE REPEAT ALL , REPEAT , REPEAT ALL and SCAN 7........................display 8PROGRAM ......programs tracks and reviews the program 9BASS ...............switches the bass enhancement on and off. This button also switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds 0∞.....................skips and searches CD tracks backwards !RESUME .........stores the last position of a CD track played HOLD ..............locks all buttons OFF .................switches RESUME and HOLD off @LINE OUT/p....3.5 mm headphone socket, socket to connect the player to another audio input of an additional appliance, remote control socket (not on all versions) #VOL E..........adjusts the volume $4.5V DC ...........socket for external power supply %........................belt clip holder ^........................typeplate ^ % $ PROGRAM MODE BASS ESP C D R E W R I T A B L E C O M P A T I B L E D I G I T A L D Y N A M I C B A S S B O O S T ERMS UOFF-E-LHOD VOL. L INE OUT / O P E N 1 2 3 4 5 6 7 8 9 0 ! @ # CD REWRITABLE COMPATIBLE PROGRAM MODE DBB TRACKM O D E D IGITA L DYN AM IC BA SS BO O ST 0VOL. REMS UOFF-E-LHOD L INE OUT/ OPEN % $ 1 2 3 4 5 6 7 8 9 0 ! @ # For more information of operation instruction please visit Philips Audio internet site : http://www.audio.philips.com
