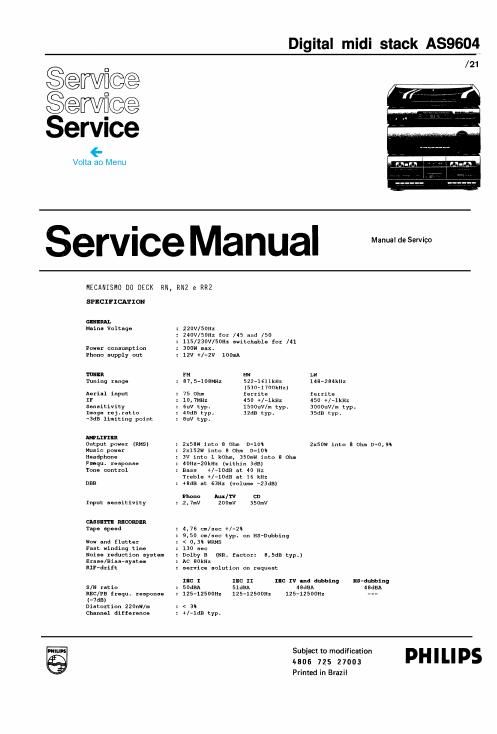

Philips as 9604 service manual

Page 2

CONTROLS

1 Power switch
2 Tone controls
3 INFRARED remote sensor
4 AUTO SCAN button for scanning preset stations
5 AUTO PROGRAM button for autom. programming of preset stations
S,7,8,9 SOURCE SELECTION buttons
10 DISPLAY
shows: * sound sources (Cass, ADD or CD)
* in TUNER mode -£requency in kHz or MR:
-selected wave bands FM or MW
-stereo
-preset station number
-progr. to indicate that the frog
can be programmed
* in TIMER mode -the remaining time in minutes until
the set will go to stand by.
11 BAND selector button
In stand by mode: press 10 to go to TIMER mode
12 PRESET DOWN for tuning the preset stations
13 PRESET UP for tuning the preset stations
14 TUNING UP/MINUTES UP: for tuning to higher frequ./timer setting
15 TUNING DOWN/MINUTES DOWN: tuning to lower frequ./timer setting
16 MONO button - in TIMER mode CLEAR button
17 PROGR button: to program preset transmitters
18 VOLUME control with LED indie. (flashes while remote controlled)
19 BALANCE control
20 DYNAMIC Bass Boost button
Tape decks
22 MODE lever for selecting the reverse mode
23 PAUSE button
24 WIND button
25 REW button
26 PLAY button
27 DIRECTION button for reversing the tape direction on deck II.
29 STOP/EJ'ECT button
29 Fe/CrOZ button for selecting the type of tape.
30 HIGH SPEED DUBBING selector
31 DOLBY NR button
32 RECORD button deck I
33 DIRECTION indicators for deck II
34 HIGH SPEED DUBBING LED indicator
35 DOLBY NR LED indicator
CONNECTIONS
A LOUDSPEAKER terminals for 2 or 4 loudspeakers >8 Ohm
3 FM antenna terminal 300 Ohm/75 Ohm
C CD IN for connecting a compact disc player
D AUX/TV IN for the sound channel of a TV set etc.
I PHONO IN for a record player with a magnetodyn. element
I PHONO SUPPLY socket for a record player without its own supply
6 REMOTE RCS OUT - can be used with the REMOTE IN of a CD player
I MAINS CABLE
21 PHONES socket for stereo headphones 32-1000 Ohm

1271

3505/3513

6420

1413

1414
1401,1402,1403,1404
1400

1406

1412
1411
1410
1407
1408
1414
3500
3545
1405

1070
1070
1070

6721/6722
6725
6724

1272
5131/1104
1554
1554
1554
1286
1273

1274
