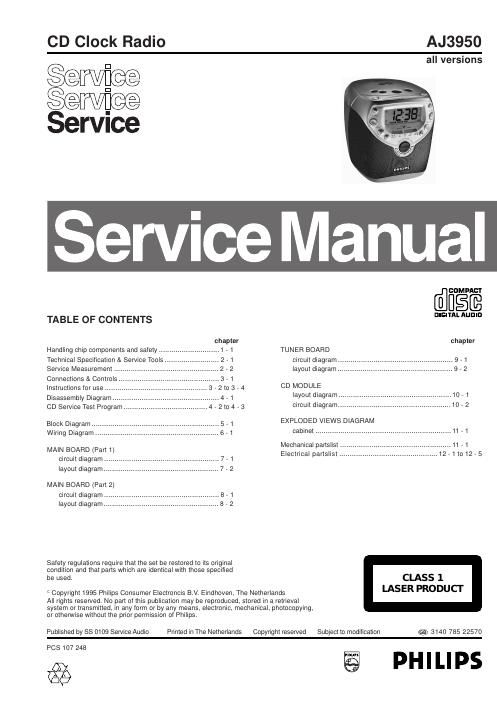

Philips aj 3950 service manual
This is the 27 pages manual for philips aj 3950 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips aj 3950 service manual (Ocr-read)
Page 1
1-1 PCS 104 437 WARNING All ICs and many other semiconductors are susceptible to Usynlig laserstr åling ved åbning n år sikkerhedsafbrydere Avatussa laitteessa ja suojalukituksen ohitettaessa olet alt tiina © After servicing and before returning the set to customer
Page 2
PCS 107 249 2-1 SERVICE TOOLS Audio signal disc SBC 429 ........ ...............................................................4822 397 \ 30184 Playability test disc SBC 444 ...................................................................4822 \ 397 30245 Test disc 5 (disc without errors ) + Test disc 5A (disc with dropout errors, black spots and fingerprints) SBC 426/426A .....................................................................482\ 2 397 30096 Burn in test disc (65 min. 1kHz signal at -30 dB level without pause ) .....4822 397 30155 Universal test cassette Fe SBC 420 ........................................................4822 397 30071 TECHNICAL SPECIFICATIONS GE NE RAL Mains voltage -/00 :220 - 230 V -/17 :120v Mains frequency -/00 :50 H z -/17 :60 H z Battery mains :4.5 V Pow er consum ption max. :17 W standby :3.4 W Dimension (W x H x D ) :170 x 190 x 190 m m Weight :2.1 Kg AMPLIFIER Output pow er mains :2 x 0.8 W Speaker im pedance :2 x 8 ohm Frequency response :100 H z - 10 kH z ( ±4dB) TUNE R - FM S ECTION Tuning range :87.5 - 108 M Hz IF frequency :10.7 M Hz ± 0.3 M Hz Sensitivity :3 µV at 26dB S/N Selectivity :24 dB at 300kH z IF rejection :55 dB Image rejection :26 dB TUNE R - AM S ECTION Tuning range MW :526.5 – 1606.5 kH z -/17 :520 - 1722 kH z IF frequency :468 kH z ± 3 kH z Sensitivity MW :69 dB µV/m at 26dB S/N Selectivity M W :20 dB IF rejection MW :28 dB Image rejection MW :32 dB COMP ACT DIS C Frequency response :125 H z - 10 kH z S/N ratio :60 dB Channel difference 1 kH z:2 dB Channel crosstalk 1 kH z:40 dB Laser w avelength :780 ± 20 nm Laser light pow er :< 0.5 m W
