philips agz 27 a

Extracted text from philips agz 27 a (Ocr-read)

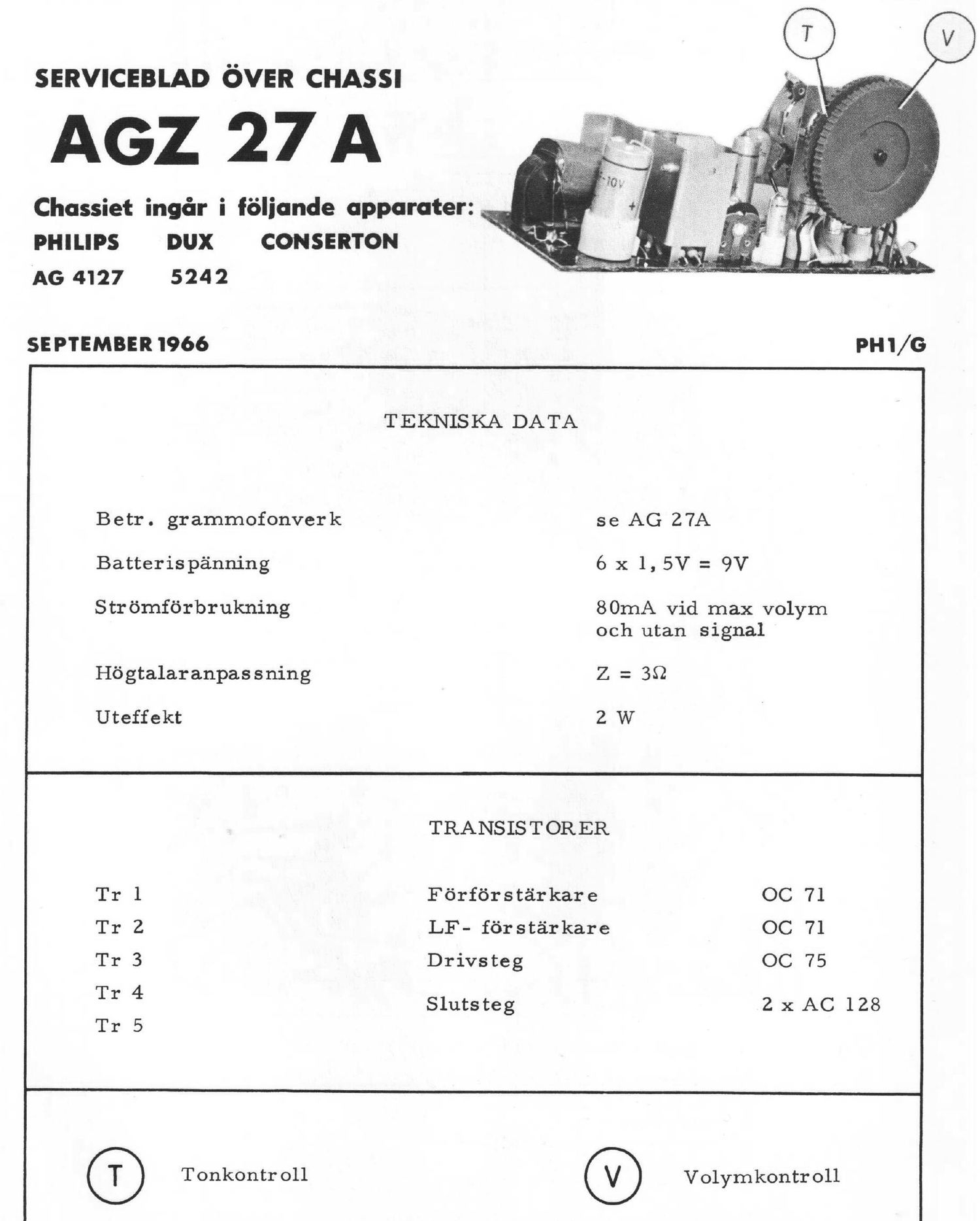

Page 1

SERVICEBLAD 6VER CHASSI

AGZ 27A

Chassiet ingér i féliande apparater:
PHI LIPS DUX CONSERTON "
AG 4127 5242

SEPTEMBER 1966 PH 1/6

TEKNISKA DATA

Betr. grammofonverk se AG 27A
Batterispéinning 6 x 1, 5V = 9V
Strémfbrbrukning 80mA vid max volyrn

och utan signal
Hégtalaranpassning Z = 382

Uteffekt 2 W

TRANSISTOR ER

Férféirstéirkare 0C 71
LF- férstérkare 0C 71
Drivsteg 0C 75

Slutsteg 2 x AC 128

Tonkontr 011 Volymkontr 011
