Extracted text from philips ag 2121 service manual (Ocr-read)
Page 2

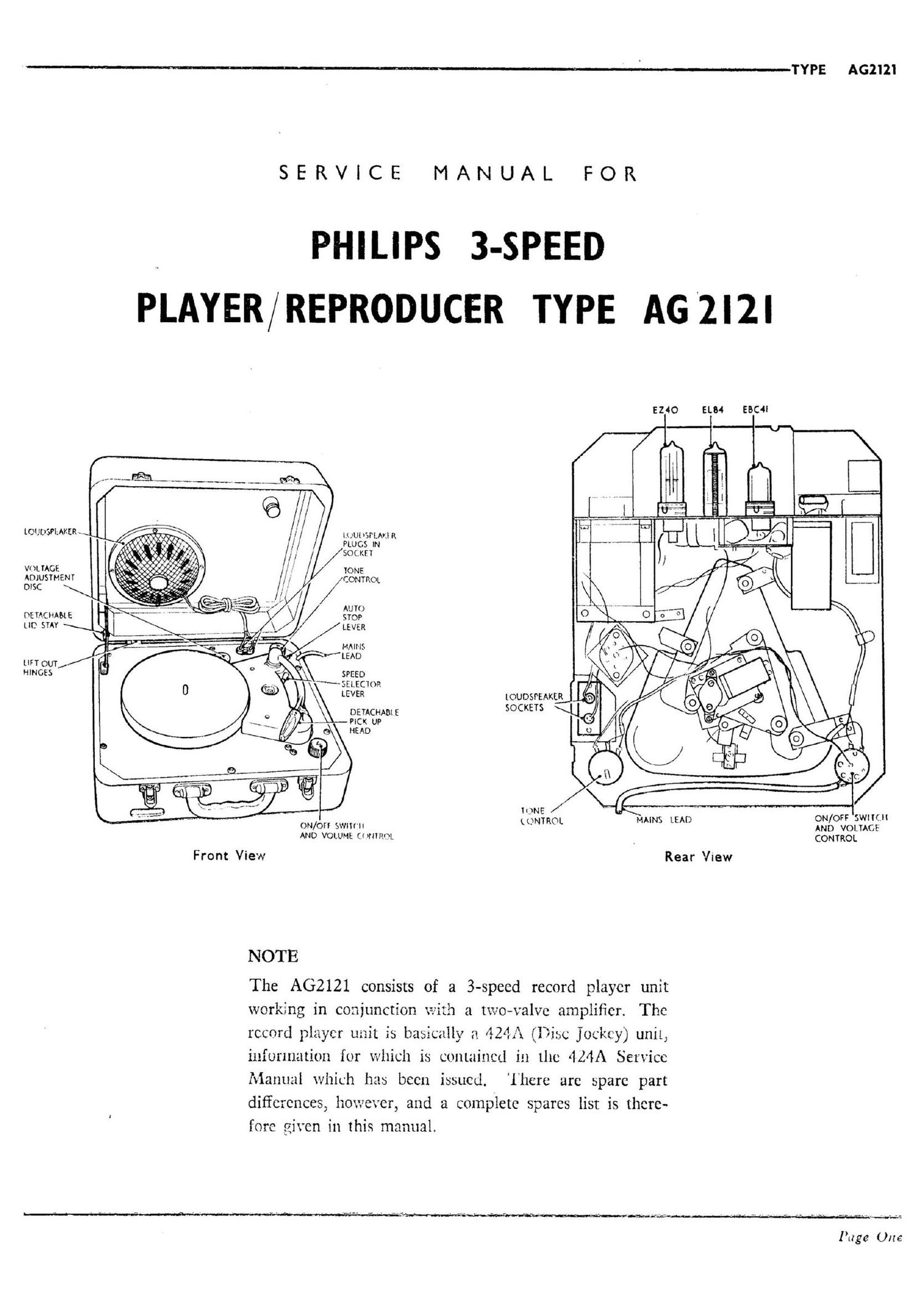

TYPE AG2121-_-_-
VALVE COMBINATION
V 1 EBC41 Voltage Amplifier.
V2 EL84
V3 E240
Power Output.
Mains Rectifier.
CONSUMPTION
With 245 V. 50 0/3 applied to the 245 V.
tapping. Consumption with motor on approx.
38 W. Consumption with motor off approx.
33 W.
VOLTAGE RANGE
110 V. to 245 V., 50 e/s.
DIMENSIONS OF CABINET
Height 6}. Width 15%. Depth 13%.
REMOVING THE UNIT FROM ITS CASE
Unplug the speaker.
Release the lid stay from the top of the case by pulling
back the locking catch and pushing the pivot out of
bearing bracket.
The complete unit is held to the case by six screws.
REMOVING THE PLAYER UNIT
Remove the unit from its case.
Disconnect the pick-up lead from the volume control,
the motor lead from the switch on the volume control,
and the mains lead from the pick-up operated switch.
The unit is held by three bolts which pass through rubber
bushes.
Spare parts for the unit are specified in this manual, but
for servicing information reference should be made to the
service manual for the 424A.
Page Two
