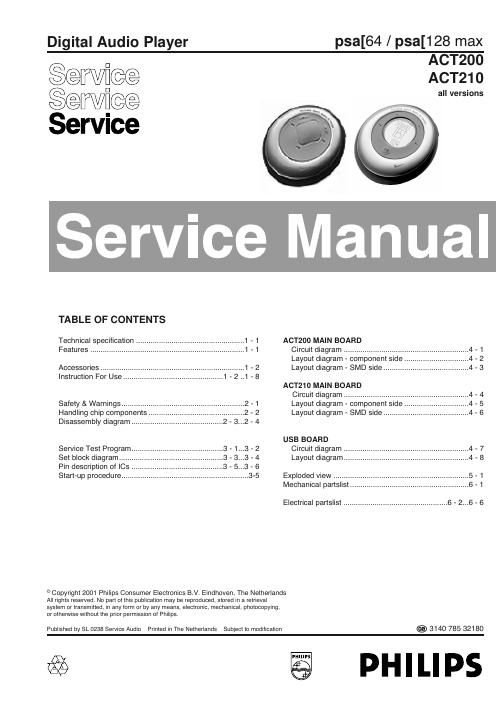

Philips act 200 210 service manual

Page 2

1 - 2 ACT210----controls PortableSportAudiobyPhilips eq 4 6 3 2 5 2 3 1 7 8 9 front view rear view supplied accessories one usb cable one psa software & user guide cd-rom one set of clip magnets one AAA rechargeable Ni-MH battery* (for ACT210) one Ni-MH battery charger* (for ACT210) * not supplied with Asia-Pacific versions one set of headphones, HJ020 one remote control, AY3776 one armband, AY3285 one AAA alkaline battery (for ACT200) ACT200----controls PortableSportAudiobyPhilips eq 4 6 3 2 5 2 3 1 7 8 9 front vi ew rear vi ew 12; switches the set on /off; starts / pauses playback 25 /6 skips to the beginning of a previous / next track 3- / + adjusts the volume 4display (for ACT210) with backlight. lights up briefly orange when you press any button on the psa. 5eq enhance your listening experience. select from 4 equalizer settings: Hiphop, Funk, Rock, Technoor create your own adjustable Customsetting. 6 p 3.5 mm line out to connect 7locks buttons to prevent them from being activated8bat t er y c om par t m ent uses 1 x AAA alkaline or Ni-MH battery 9usb i n (found in the battery compart- connect the supplied usb cable from here to the usb port of your computer controls and connections the model & serial numbers are located inside the battery compartment. (for ACT210)ment) 4indicator (for ACT200) lights up: red (battery low / power down), green (power up) or orange (button lock activated / pause mode) INSTRUCTION FOR UES ACCESSORIES
