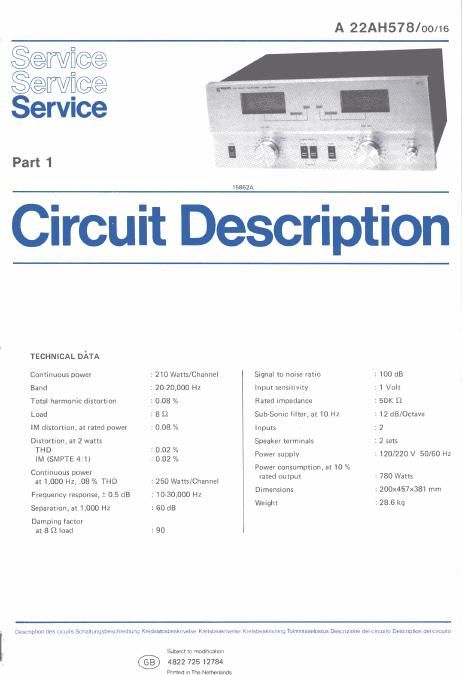

Philips a 22 ah 578 pwr service manual

Page 1

A 22AH578/00/16

Servioe
Servgoe
SerVIce

Part 1

15862A

Circuit Description

TECHNICAL DATA
Continuous power : 210 Watts/Channel Signal to noise ratio 2 100 dB
Band I 20-20,000 Hz Input sensitivity : 1 Volt
Total harmonic distortion : 0.08 % Rated impedance : 50K 9
Load 1 8 Q Sub-Sonic filter, at 10 Hz : 12 dB/Octave
IM distortion, at rated power : 0.08 % Inputs : 2
Distortion, at 2 watts Speaker terminals : 2 sets
THD : 0.02 % .
IM (SMPTE 4: 10.02 % Power supply . 120/220 V 50/60 Hz

. Power consumption, at 10 %
Continuous power

at 1,000 Hz, .08 % THD : 250 Watts/Channel mad 9" i 730 Watts
Frequency response, t 0.5 dB : 10.30900 Hz Dimensions : 200x457x381 mm
Separation, at 1,000 Hz : 60 dB Weight 3 285 kg
Damping factor

at 8 9 load : 90

DESCHDHOH des crculls Schaltungsbesohrelbung Kredslobsbesknvelse Kretsbesknvelse Krersbesknvmng Toimmlaseloslus Descnzione del circurio Descrlpiion del circuiro

Stores! to modification

4822 725 12784

Printed inThe Netherlands
