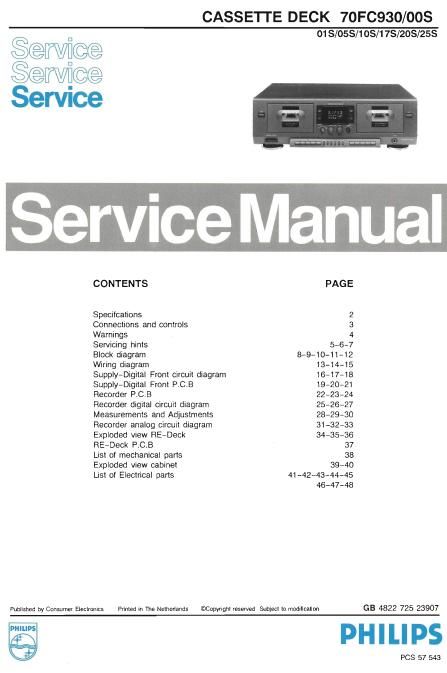

Philips 70 fc 930 service manual

Page 2

SPECIFICATION

GENERAL

Mains voltage

Mains voltage selector
Mains frequency
Power consumption
Demensions

Weight

CASSETTE DECK

Cassette system
Number of tracks
Fast wind time (C60)
Tape speed
Wow and flutter weighted
Bias and erase frequency
Frequency range chromium
Ferro
Signal/noise ratio
chromium without dolby
ferro without dolby
improvement with dolby B
improvement with dolby C
Distortion (K3)
Line input sensitivity (cinch)
Outputs
line output
headphone (6.3mm jack)

: 220 V /OOS/1OS
: 240 V /OSS

: 120 V /17S

: 115-230 V [018

: 50-60 Hz

: 17 W max.

: 435x140x300mm

: 55 Kg

: Compact cassette

: 2x2 (stereo)

: s 100 sec.

: 476 cm/sec. t 2% (DIN)

2 S 0.2% (DIN)

: 80 KHz : 10%

: 40 - 15000 HZ (DIN45500)
: 4o - 14000 Hz (DlN45500)

: z 56 dB (DIN45500)

. 2 53 dB (DIN45500)

: 2 8.5 dB (CCIR)
:217 dB (CCIFI)

: S 3%

: 75 mV for 200 nWb/m

: 500 mV at 200 nWb/m
: 500 mV at 120 Q

CONNECTIONS AND CONTROLS

l
20191817

15 14 13
FRONTSIDE
1 Power on/otf 1403 16 Keyboard deck A
2 Eject deck A rewrnd 131B
3 Cassette holder A stop 1317
4 Rev mode selector 1301 play reverse 1318
5 Scan A 1323 play normal 1319
6 Blank search 1322 wind 1315
7 Display 6310 Keyboard deck B
8 Counter reset 1321 rewind 1308
9 Scan B 1320 stop 1307
10 Dolby NR, 1302 play revere 1306
11 Cassette holder B play normal 1305
12 Eject deck B wind 1304
13 Rec. balance 3425 17 Record mute 1309
14 Rec. level 3426 18 Record pause 1310
15 Phones 1407 19 Direction 1311
20 Dubbing CD synchro 1312
fast 1313
normal 1314
HEARSIDE
A Tape in 1405 D Voltage selector 1402
B Tape out 1408 only /01
C ESY bus 1406 E Mains lead
