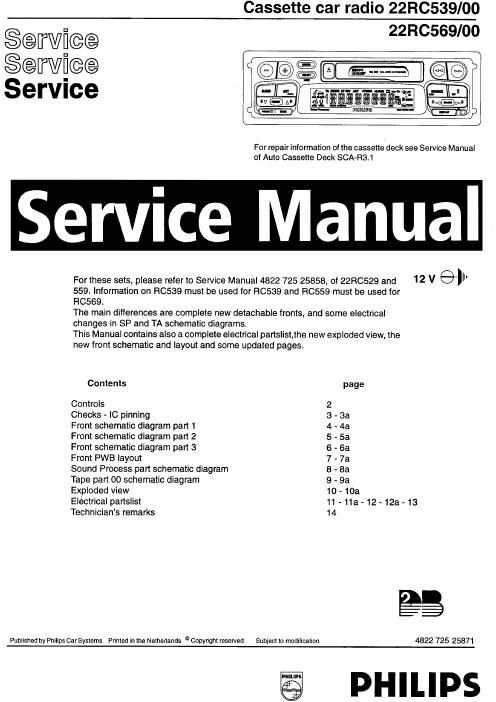

Cassette car radio 22RC539/00
22R0569/00

$@Wfi©@
Service
SerVIce

For repair information of the cassette deck see Sen/ice Manual
of Auto Cassette Deck SCA-R3.1

ervice Manua

12 v G-III'

For these sets, please refer to Service Manual 4822 725 25858, of 22R0529 and
559. Information on R0539 must be used for R0539 and R0559 must be used for
R0569.

The main differences are complete new detachable fronts, and some electrical
changes in SP and TA schematic diagrams.

This Manual contains also a complete electrical partslist,the new exploded View, the
new front schematic and layout and some updated pages.

Contents page
Controls 2
Checks - l0 pinning 3 - 3a
Front schematic diagram part 1 4 - 4a
Front schematic diagram pan 2 5 - 5a
Front schematic diagram part 3 6 - 6a
Front PWB layout 7 - 7a
Sound Process part schematic diagram 8 - 8a
Tape part 00 schematic diagram 9 - 9a
Exploded view 10 - 10a
Electrical partslist 11 » 11a - 12 - 12a - 13

Technicians remarks

Published by Philips Car Systems Printed in the Netherlands © Copyright reserved

Subject to modification

I?

W

14

2%

4822 725 25871

PHILIPS

Page 2

QQTNTROLS

19 n an: AIM m
l
1 8
17 16 15 14
1 VOL- 11
2 VOL+ 12
3 AUDIO SELECTION I LOUDNESS 13
4 SOUND ,14
5 EJECT CASSETTE/REVERSE 15
6 CASSETTE OPENING 16
7 SOURCE SELECTION / MUTE 17
8 FRW BUTTON 18
9 FFW BUTTON 19
10 TRAFFIC INFORMATION NEWS/INIT MODE
CONNECTIONS
0- $1111. C -
. B - a
g E A - (I; 6 o F
B _
A _
A1 Phone Mute B1 Rear Right +
A2 Remote Ground 82 Rear Right -
A3 Remote Input BS Front Right +
A4 +12V Permanent B4 Front Right -
A5 +12V Switched (antenna supply) BS Front Left +
A6 Be Front Left -
A7 +12V Ignition Key or Permanent B7 Rear Left +
A8 Ground BB Rear Left -
G1 Gateway
G2 Gateway
E Aerial Plug
F Fuse 10A
22R0539/oo
22RQ§§§ZQQ

13 12

SEARCH / TRACK

RELEASE BUTTON FOR DETACHABLE UNIT
FREQUENCY] PTY / DOLBY

DISPLAY

AUTOSTORE / MANUAL

SCAN

ON / OFF

PRESET SELECTION / DISC SELECTION
BAND/ RANDOM
ONLYRC569/0
" " 7" T 73' E 5
3- -G 9- -12 E E
2- -5 9- -1l 5 - 2-0
Id J (fie-I 7|
| HI 5| al 5
.l J 5| 7| F
l 5' 0' O
(C : Only 569/00)
C1 Line-Out Rear Left

02
CS
C4
05
CG
C7
CB
09
C10
C1 1
C12
C13 Bus DZB+

C14 Bus DZB-

C15 Bus Ground
C16+12V Permanent
C17+12V Switched
C18 Input Reference
C1 9 Input Left

020 Input Right

Line-Out Rear Right
Line-Out Ground
Line-Out Front Left
Line-Out Front Right
+12V Switched
