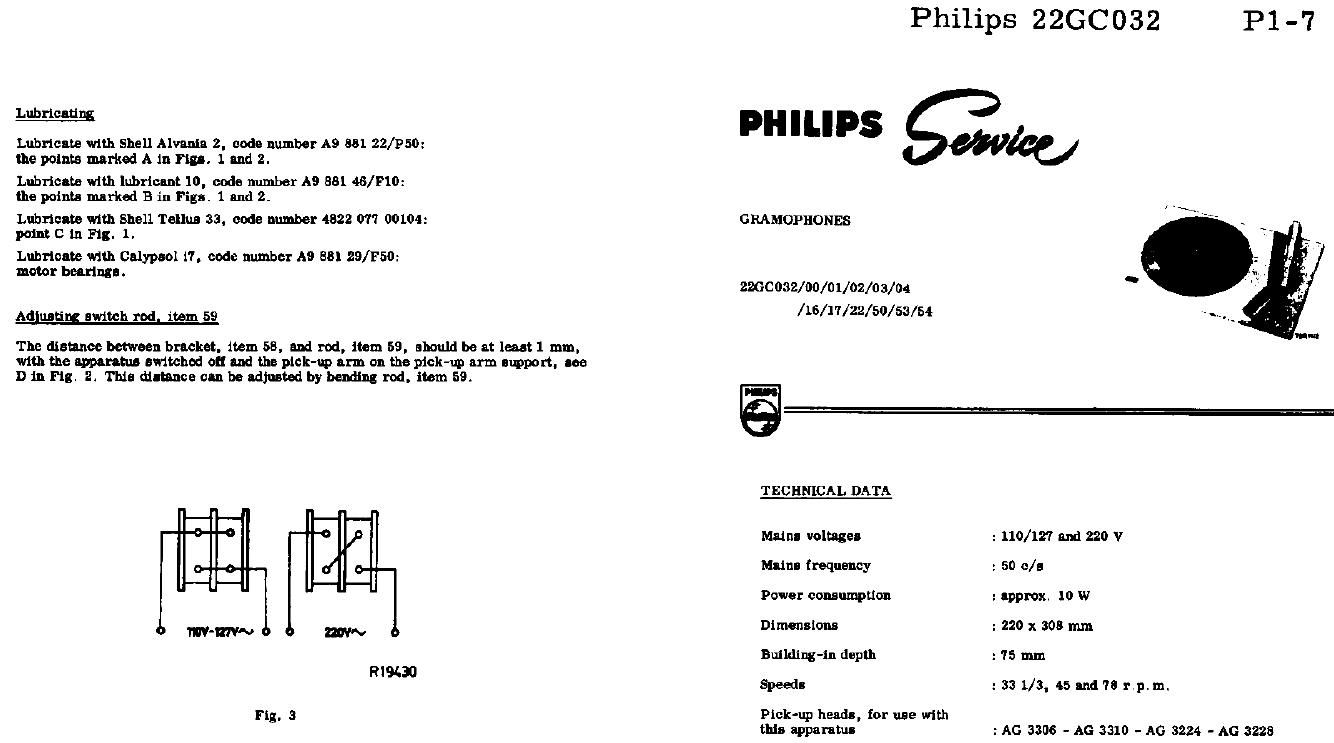

Philips 22GC032 131-7
Lubricate with Shell Alvania 2, code number A9 331 22/950: @
thepolnts marked A in Figs. 1 and 2.
Lubricate with lubricant 10, code number A9 881 46/ F10:
the points marked B in Fig.1 and 2.
Lubricate with Shell Tellus 33, code number 4822 0?? 00104: GRAMOPHONES
point C in Fig. 1.
Lubricate with Calypeol 17, code number A9 88! 29/F50:
motor bearings .
2260032/00/01/02/03/04
Adjusti_ng switch rod. item 59 /16/"/22/5°/53/54
The distance between bracket, item 58, and rod, item 59, should be at least 1 mm.
with the apparatus switched of! and the pick-up arm on the pick-up arm support. see
D in Fig. 2. This distance can be adjusted by bending rod, item 59.
a ' -_ 4. m
v.9
TECHNICAL DATA
Mains voltages : 110/ 12? and 220 V
Mains frequency : 50 c/s
Power consumption : sppvox. 10 W
M-WN m Dimensions : 220 x 308 mm
Building-in depth : 75 mm
R1900
Speeds :33 1/3, 45 and '78 r.p.m.
Fig. 3 Pick-up heads, for use with
this apparatus : AG 3306 - AG 3310 - AG 3224 - AG 3228
