Philips 118 schematic

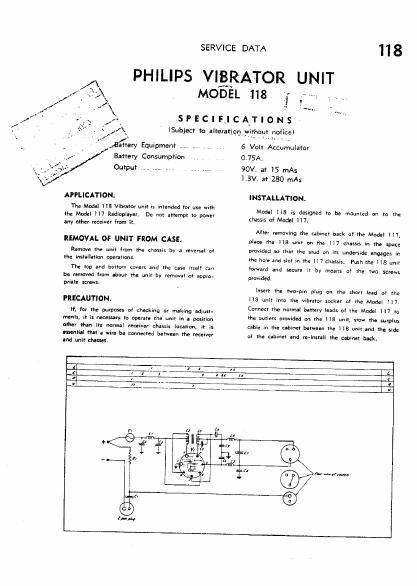

Page 1

SERVICE DATA 1] 8

Equipment .. ..
Battery Consumption
Output

APPLICATION.

The Model 113 Vibrator unit is intended for use with
the Model Ill RJdioplayer. Do not attempt to power
any other receiver tram it.

REMOVAL OF UNIT FROM CASE.

Remove the unit tram the chasis by a reversal of
the installation operations.
The too and botmm covers and the use itself can

be removed from about the unit by removal of appro-
priate screws.

PRECAUTION.

If, fur the purposes of checking at making admit-
ments, it is necessary to Operate the unit in a pcsitian
ether than Its normal receiver chassis location, it is
essenti-I that a wire be connected between the receiver
and unlt trusses

SPECIFHICAVTION'S

(Subject to alteratiqrt yithaut'noticel

PHILIPS 'VIERATOR UNIT
MObEL 1118

mg...

6 Volt Azcumulator
0.75A.

90V. at IS mAs
1.3V. at 280 mAs

INSTALLATION.

Model HE is designed to be mounted on to the
chassis of Model III

After removing the cabinet back of the Model 7,
place the 8 umr on the I|7 chassrs in the space
provided so that the stud on its underside engages in
the hole and Slot in the 117 chassis. Push the 8 unit
forward and secure it by means of the two screws
provided.

Insert the two-pm plug on the shaft lead of the
IIS unit into the vibramr socket of the Model ll7.
Connect the normal battery leads of the Model I]? to
the outlets provided on the 118 unit, stow the surplus
cable in the cabinet between the I IS unit and the side
at the obinet and re-install the cabinet back,

,l.
I

\NN

Page 2

118 SERVICE DATA

PARTS LlSTS
CAPACITORS COILS

No. Description Not Ohms Description Code No.
Cl 500 mF lZV electrolytic Ll (.5 LT R.Fr Choke CZ.321.2|3
C2-3 0.5 mF 200V paper L2 1 p
cm; 002 mF 600V paper "a
C5 0,01 mF my paper L3 660 Transformer CZ.544.024
'3 °-' "1 200V 9" L4 66 HT. R.F. Choke (2.321.220
C7 24 mF 350V electrolytic

L5 66 HT. R.F, Choke CZ.32I.220

RESISTORS

NO. Dascriptlon Code No.

Rl 16 ohms 3W WM :2% CZ.OOB.Sl3

MISCELLANEOUS COMPONENTS

Description Code No, Description Code No.
Cartridge, vibrator cz.133,lov Socket, 2 Pin polarized 02,102,401
Clip, battery, positive CH.777.0l0 Socket, 3 pin, comprising¥
Clip, battery, negative CH.777.0H Contact (3 per socket) CSthZGOO
Fuse, 2A auto. type CZ,280.900 Panel. insult l) per sucker) CS.llO.624
Grommet, battery leads 6.422.441 Panel, contact mtg. (1 per socket)
Holder, fuse CZ.57l.l00 C5-0-523
Plus. 2 pin polarized 02.102200 Socket, 7 pin CZ.369.313

IMPORTANT! In ordering spare parts, please quote CODE NUMBER of part and MODEL NUMBER
of unit. In claiming free replacement under GUARANTEE, return defectwe parts PROMPTLY and
quote MODEL and SERIAL NUMBER of unit and DATE OF PURCHASE.
