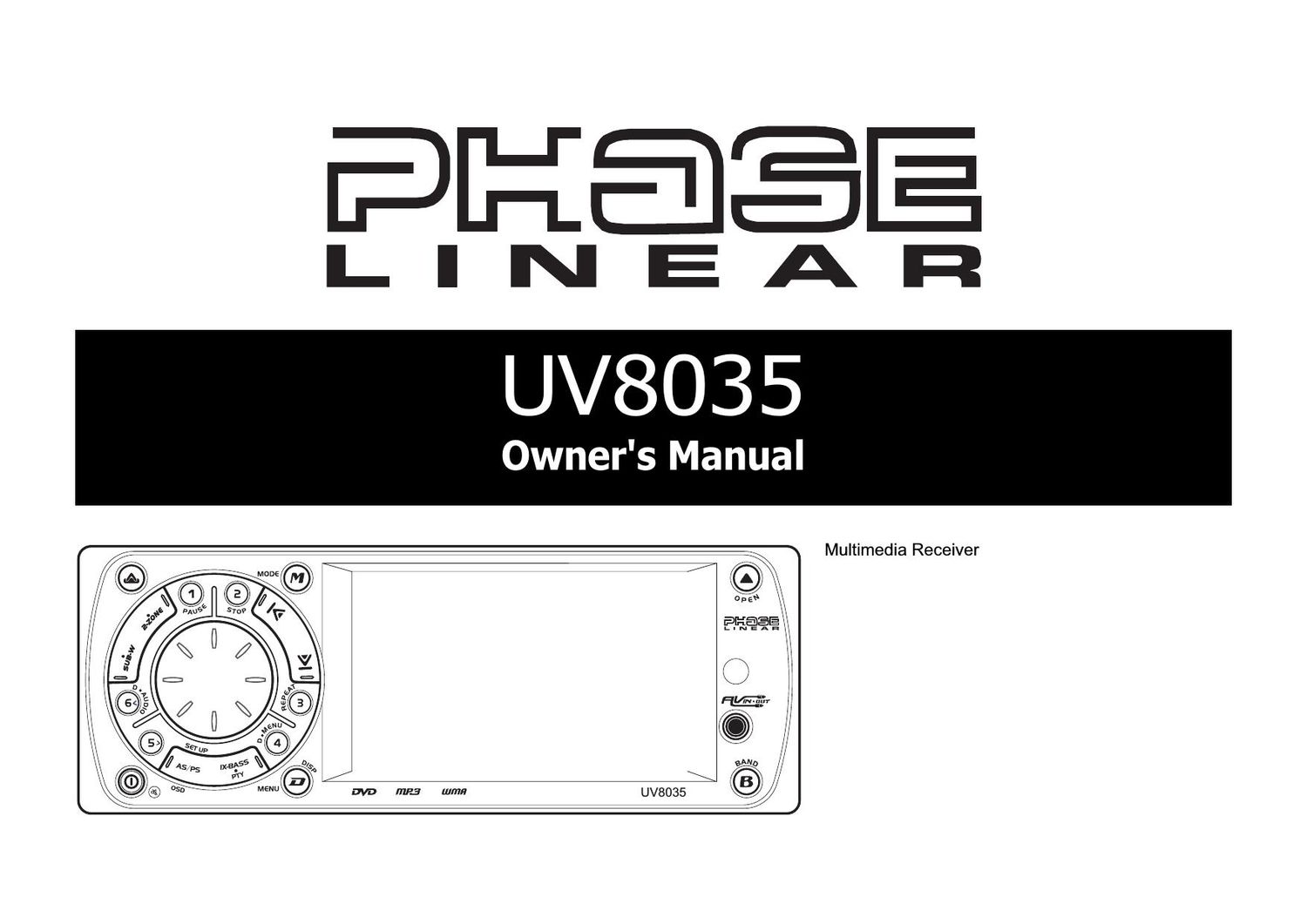

Phase Linear UV 8035 Owners Manual
This is the 26 pages manual for Phase Linear UV 8035 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Phase Linear UV 8035 Owners Manual (Ocr-read)
Page 1
UV8035 2 PREPARATION Getting Started Its a good idea to read all of the instructions before beginning the installation. Contents Preparation ................................................ 2 Installation Instructions .............................. 3 Wiring ........................................................ 6 Detachable Control Panel ......................... 7 Remote Control ......................................... 8 Operating Instructions ............................. 10 Tuner Operation ...................................... 15 CD/DVD Operation .................................. 16 Memory Card Operation .......................... 19 Dual Zone Operation ............................... 20 System Setup Menu ................................ 21 Care and Maintenance ............................ 23 Specifications .......................................... 24 Installation Requirements This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. If you need a kit but cannot locate one, call our customer support line at 1-800-323-4815. (U.S.A. and Canada only.) Tools and Supplies The following tools and supplies are needed to install the radio. Torx type, flathead and Philips screwdrivers Wire cutters and strippers Tools to remove existing radio (screwdriver, socket wrench set or other tools) Electrical tape Crimping tool Volt meter/test light Crimp connections 18 gauge wire for power connections 16-18 gauge speaker wire Speaker Requirements Only connect speakers rated with a load impedance of 4 ohms. Speakers with a load impedance of less than 4 ohms could damage the unit. Toll-Free Installation Assistance If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30 a.m. to 7:00 p.m. EST Monday through Friday and from 9:00 a.m. to 5:00 p.m. EST on Saturday. (U.S.A. and Canada only.)
Page 2
UV8035 3 INSTALLATION INSTRUCTIONS Before You Begin 1. Disconnect battery negative terminal. 2. Remove transport screws. Important Notes Before final installation, test the wiring connections to make sure the unit is connected properly and the system works. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vehicle. Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop. If the installation angle exceeds 30º from horizontal, the unit might not give optimum performance. Avoid installing the unit where it will be subject to high temperatures from direct sunlight, hot air, or from a heater, or where it would be subject to excessive dust, dirt or vibration. DIN Front Mount (Method A) 1. Slide the mounting sleeve off of the chassis if it has not already been removed. If it is locked into position, use the removal keys (supplied) to disengage it. The removal keys are depicted in Removing the Unit. 2. Check the dashboard opening size by slid- ing the mounting sleeve into it. If the open- ing is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that there will be sufficient space behind the dashboard for the radio chassis. 3. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary to firmly secure the sleeve to the dashboard. 4. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. 5. Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation. 6. After completing the wiring connections, turn the unit on to confirm operation (vessel accessory switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the accessory switch off and proceed with final mounting of the chassis. 7. Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is fully seated and the spring clips lock it into place. 8. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut and spring washer provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and plain washer pro- vided. Bend the strap, as necessary, to 182 53 Dashboard Bend Tabs Screw Stud
Page 15
UV8035 16 CD/DVD OPERATION Insert Disc (OPEN) Press the OPEN button (8) to open the front panel and reveal the disc slot. With the label surface facing up, gently insert the disc into the slot until the soft-loading mechanism engages and disc play begins. The front panel will close automatically and Reading... will appear on the screen while the disc loads. NOTE: The unit is designed for play of standard 5 (12 cm.) compact discs only. Do not attempt to use 3 (8 cm.) CD singles in this unit, either with or without an adaptor, as damage to the player and/or the disc may occur. Such damage will not be covered by the warranty on this product. Eject Disc (OPEN) When the OPEN button (8) is pressed while a disc is inserted, disc play is stopped and the disc is ejected. The unit will revert to Tuner operation. If the disc is not removed from the unit within 15 seconds, the disc will be re- loaded. NOTE: To prevent a disc from accidentally being damaged, always remove the disc from the unit when disc play is finished. Controlling Playback After inserting an audio disc, the player automatically plays the first track. The elapsed playing time is displayed in the right corner. When the track is finished, the next track will play automatically. Press the 2/STOP button (11) to stop playback of the current file. The MP3 user interface is shown below: Use the , , or buttons on the remote control to navigate the on-screen file list. Press the button on the remote control or the 5> button (14) on the control panel when the highlighted file is in the column on the far right to display the next ten files. Press the button on the remote control or the 6< button (6) on the control panel when the highlighted file is in the column to the far left to display the previous ten files. Press OK when a file number is highlighted or after numeric input to begin playback of the selected file. Use the remote control numeric buttons (0- 9, +10) to enter and play a file number directly. Press the +10 button repeatedly to select a number in the tens position for direct track entry (for example, to select track 44, press the +10 button four times and then press the 4 button). Disc Play/Pause Press the 1/PAUSE button (10) to freeze disc play. Press 1/PAUSE again to resume disc play. Disc Stop Press the 2/STOP button (11) to stop disc play and retain the playback position (DVD, VCD, CD). Press 2/STOP twice if you want to resume playback from the beginning of the disc. Press 1/PAUSE to resume disc play. NOTE: After the last track on a disc is played, the unit will stop playback. Press 1/ PAUSE to play from the beginning of the disc.
Page 18
UV8035 19 MEMORY CARD OPERATION This unit can play MP3, WMA, JPEG and MP4 files stored on an SD or MMC Memory card. Inserting an SD or MMC Card 1. Detach the front panel. 2. Insert memory card with label side up. 3. Push in until a click is heard. Removing an SD or MMC Card 1. Detach the front panel. 2. Push in until a click is heard. 3. Remove the card. Accessing Card Mode After inserting an SD or MMC card, press the MODE button (9) to select Card mode. The unit will read the files on the Memory Card and playback will begin automatically. Playback Controls The playback controls for memory card playback are the same as for MP3 or CD playback. See CD/DVD Operation on page 16 for more information. Click Face Up 1 2 3 Click 1 2 3
Page 21
UV8035 22 Video TV Aspect Ratio (video) Select the appropriate aspect ratio for your TV. 4:3: Aspect ratio of TV is 4:3. 16:9: Aspect ratio of TV is 16:9. Both widescreen and 4:3 content will fill the entire screen. TV Output (video) Select the appropriate output for your TV. NTSC: TV is NTSC. PAL content is played at NYSC resolution and frame rate (factory default). PAL: TV is PAL. NTSC content is played at PAL resolution and frame rate. Auto: Media is played in its original format. Video Mode Fill: Scale image horizontally and vertically to fill the screen. Original: Fit the original screen size (MPEG only). H Fit: Scale vertically to fill the screen to height. W Fit: Scale horizontally to fill the screen to width. Fit to Screen (like Letterbox): Take the minimum value of horizontal and vertical fit scale ratios. Pan Scan: Take the maximum value of horizonal and vertical fit scale ratios. NOTE: 'TV output' and 'TV aspect ratio' are used to describe functions of the video screen. The UV8035 is not equipped with a TV tuner. Priority Content Select DVD Audio or DVD Video playback priority. PictureCD View Original: Maintain original picture size. Fit to Screen (like Letterbox): Take the minimum value of horizontal and vertical fit scale ratios. Audio This menu is a optional feature of the DVD chipset used in this product. This option is not enabled on the UV8035. Rating Password: Enter a 4-digit password to activate the Rating feature. The original password is 8888. Once activated, this password will be required to access restricted content or to make changes to the Rating menu. To change the password, enter a new number sequence while the rating feature is unlocked, and then press OK. Rating: Select the appropriate rating level for the intended audience. You may override higher ratings by using your password. Default: Select Reset to restore the factory default settings for the Rating system only.
