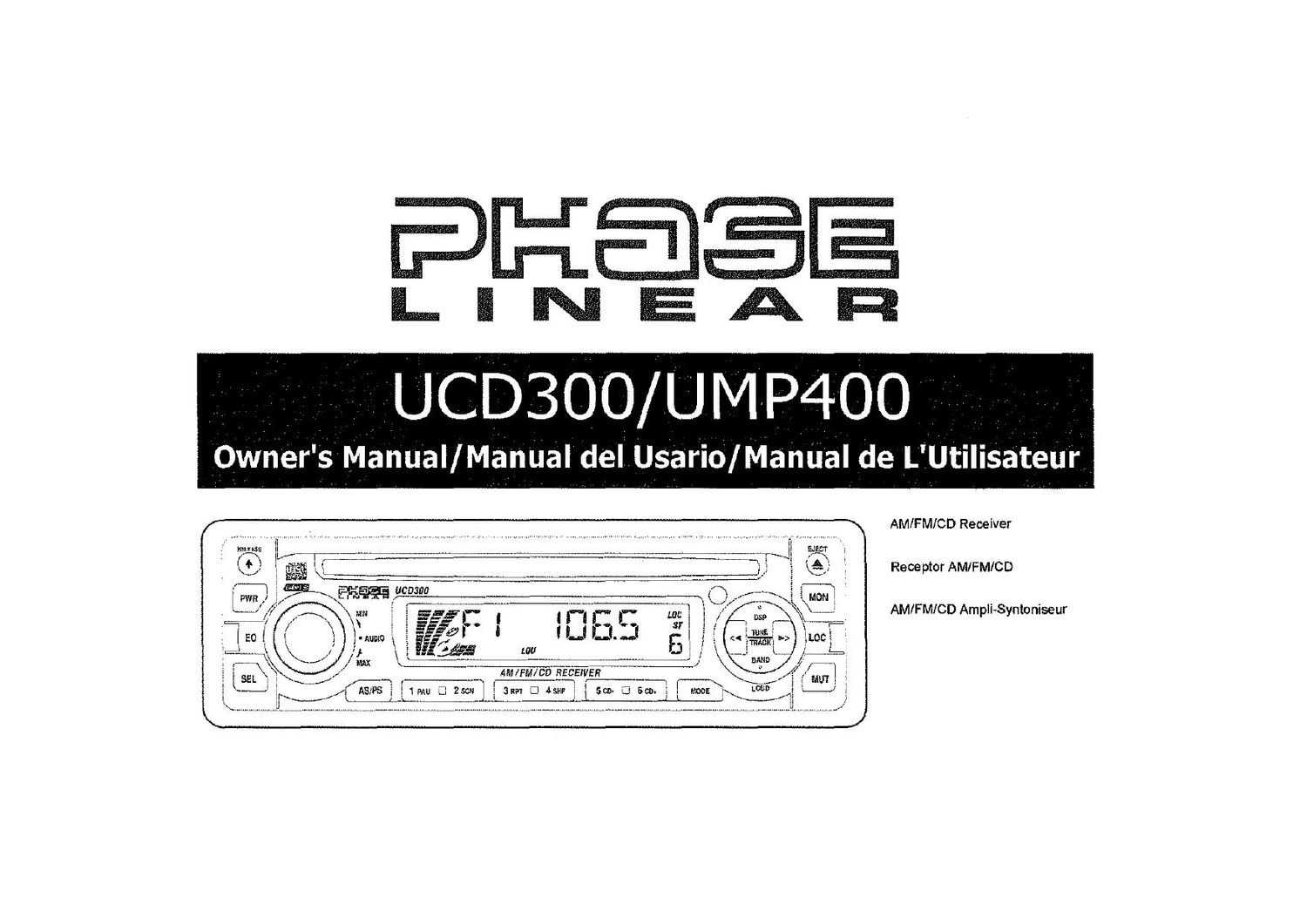

Phase Linear UMP 400 Owners Manual

Page 2

EBB: SE

LINEAR

Para obtener instruociones en Espafiol, dirijase a la pagina 20.

PRE PABATION
Getting Started

Its a good idea to read all of the instructions
before beginning the installation.

Contents

Installation Instructions
VWing..
installing the Removable Faceplate
Operating Instructions... ...
CD Player Operating Instructions
MP3 Player Operation (UMP400)
CD Changer Controls
Remote Control
Care and Maintenance
Specifications ..
90 Day Limited Warranty

Installation Requirements

This unit is designed for installation in cars,
trucks and vans with an existing radio opening.
In many cases, a special installation kit will be
required to mount the radio to the dashboard.
These kits are available at electronics suppiy
stores and car stereo specialty shops. Always
check the kit application before purchasing to
make sure the kit works with your vehicle. if you
need a kit but cannot locate one, call our

customer support line at 1-800823-4815.
(U.S.A. and Canada only.)

Tools and Supplies

The following tools and supplies are needed to
install the radio.

- Torx type, fiathead and Philips
screwdrivers

- Wire cutters and strippers

- Tools to remove existing radio
(screwdriver, socket wrench set or other
tools)

- Electrical tape

- Crimping tool

- Volt meter/test light

- Crimp connections

- 18 gauge wire for power connections
< 16-1 8 gauge speaker wire

Speaker Requirements

Only connect speakers rated with a load
impedance of 4 ohms. Speakers with a load
impedance of less than 4 ohms could damage
the unit.

UCD300/UMP400

Pour des instructions en Francais, référez-vous a la page 38.

Disconnect Battery

Before you begin, disconnect the battery
negative terminaE.

TOI l-Free In stal lation Assistance

If you require assistance, contact Technical
Support at 1-800-323-4815 from 8:30 am. to
7:00 pm. EST Monday through Friday and from
9:00 am. to 5:00 pm. EST on Saturday
(U.S.A. and Canada only.)

Page 7

UCD300/UMP400

OPERATING INSTRUCTIONS

6) Power On/Off Button (PWR)

Press the PWR button (1) to turn the unit on
and off when the vehicle ignition switch is on.
When the unit is off, the clock is automatically
displayed on the Liquid Crystal Display (LCD)
panel unless the ignition switch is off. lithe
radio is oil when the ignition switch is turned off.
the PWR button must be pressed to turn the
radio on afterthe ignition switch is turned on. if
the ignition switch is turned off while the radio is
on, the radio will come on automaticalty when
the ignition switch is again turned on.

Q) Liquid Crystal Display Panel
The Liquid Crystal Display (LCD) panel displays
the frequency time and all activated functions.
including a 5-bar graph which depicts the signal
level.

NOTE: It is a characteristic of LCD panels
that, ifsubjected to cold temperatures for an
extended period of time, they may take
longer to illuminate than under normal
conditions. In addition, the visibility of the
numbers on the LCD may slightly decrease.
The LCD read-out will return to normal when
the temperature inside the vehicle increases
to a normal range.

CD Volume Control (AUDIO)

To increase the volume level, turn the AUDlO
control (3) clockwise. To decrease the volume
level, turn the AUDIO control counter-
clockwise. The volume will increase/decrease
and the level will be shown on display panel
from a minimum ofVOL 00" to a maximum of
VOL 100". The display will automatically return
to the normal indication 5 seconds alter the last
volume adjustment or when another function is
activated. The AUDIO control is also used in
conjunction with the SEL button (4) to adjust
the bass, treble, balance and fader levels.

® Select Button (SEL)

The SEL button is used to select the audio
function (volume, bass, treble, balance or fade)
to be adjusted using the AUDIO control (3).
Press the SEL button (4) once to set the unit for
volume adjustment (VOL" will appear on the
display panel). Press the button additional
times to select bass adjustment ("BAS" on
display panel), treble adjustment (TRB),
balance (EAL), fader (FAD), and voiume (VOL)
again. The display will return to the normal
indication 5 seconds alter the last adjustment or
when another function is activated.

Page 17

UCD300/UMP400

SPECIFICATIONS

CD-R and CD-RW Capability
Depending on media type and method of
"recording/burning, some CD-RIRWs may be
incompatible with this unit, Airer "recording!
burning", the session must be ctosed. Please
refer to your soitwa res recommended
procedures for closing a disc/session, Review
your recording sofiware to familiarize yourself
with the correct "reco rding/burning" procedures.
We recommend using the latest versions of
ROXIOTM or NEROTM burning software.
UCDJOO

This unit will onty recognize the CDDA
(Compact Disc Digital Audio) format
"recorded/burned" onto a CD-R/RW This unit
does not support .MP3, .WMA, :WAV, .066 or
other formats The CDDA format isthe standard
format of an "original store-bought" CD. When
recording/burning a CD-R/RW make sure the
CDDA format is selected.

UMPAW

This unit will only recognize the CDDA
(Compact Disc Digital Audio), .MP3 and
.WMA formats "recorded / burned" onto a CD-
R/RW. This unit does not support rWAV, ,OGG
or other formats:

Technical Specifications

CEA Power Ratings

Power Output: 13 watts RMS X 4 channels into
4-0th @ < 1% THD+N

Signal to Noise Ratio: 70dBA below reference.
(Reference: 1 watt, 4-ohms)

Frequency Response: 20Hz to 20kHz, -3dB
Reference Supply Voltage: 14.4VDC

CD Player

Signal to Noise Ratio: >75dBA

Frequency Response: 20Hz to 18kHz, -3dB
Channel Separation: > 55dB @ 1kHz

D/A converter: 1Bit/Ch

FM Tuner

Tuning Range: 87.5MHz - 107.9MH2

Mono Sensitivity: 18d Bf

SOdB Stereo Quieting Sensitivity: 20dBf
Stereo Separation @ ikHz: >30dB

Frequency Response: 30Hz to 12kHz, ~3dB

17

AM Tuner

Tuning Range: 530kl-iz ~ 1710kHz

Sensitivity @ 20dB Signal to Noise: 30uV
Frequency Response: 30H: - ZkHz, -3dB
General

Power Supply: 11 to 16VDC, negative ground
Fuses: Battery - 15 amp, ATO

20-pin quick-connect harness

Dimensions: 7" X 7" X 2" (178mm x 178mm x
51 mm)

Specifications subject to change without
notice.
