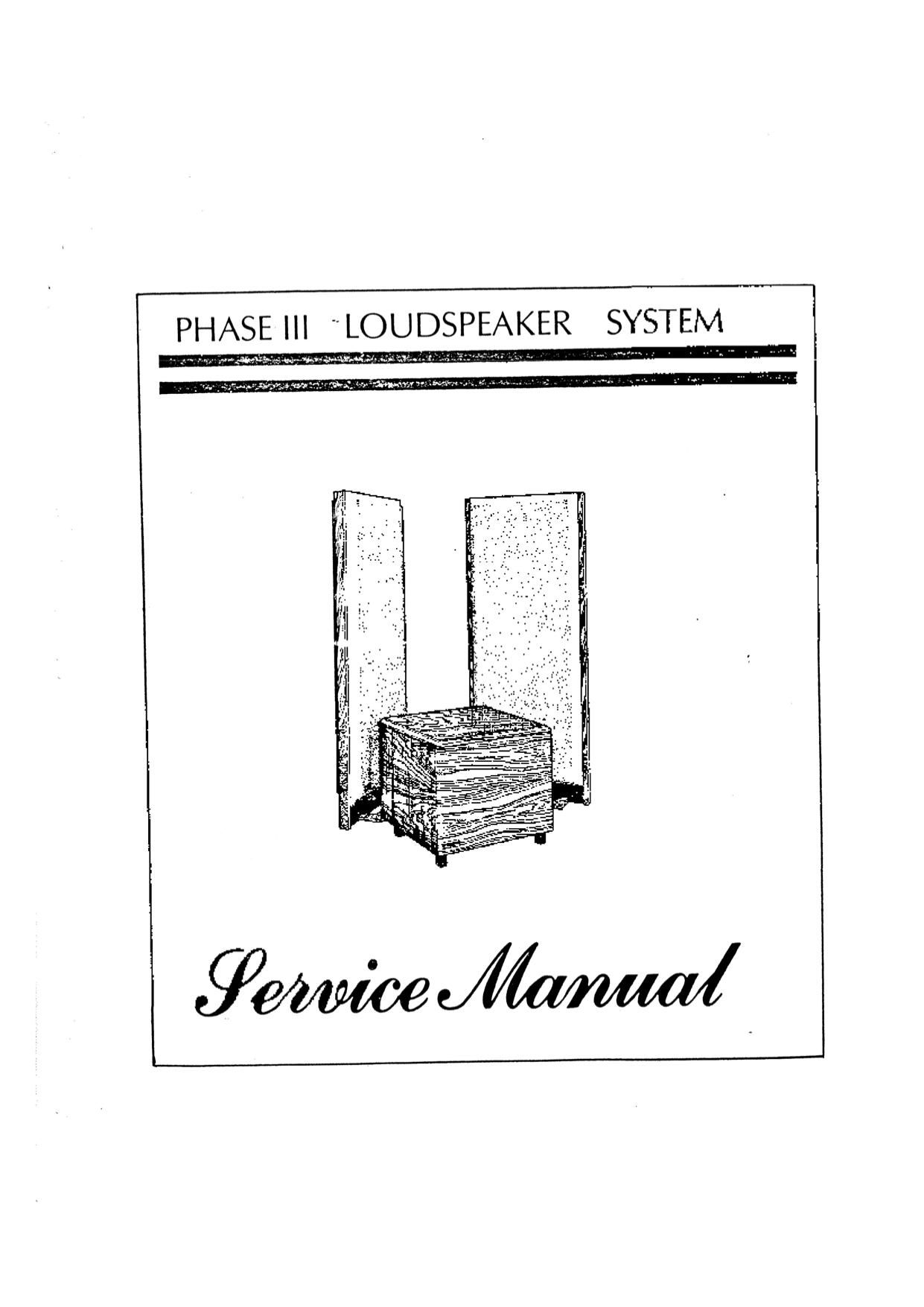

Phase Linear Phase III Service Manual
This is the 23 pages manual for Phase Linear Phase III Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Phase Linear Phase III Service Manual (Ocr-read)
Page 2
5-0.
6-0.
7-0,
CONTENTS
Specifications ........ .... .......... ... ...... .i...... 3
Circuit Description..,..... .......... ......... ....... 4
Schematics and Design History...... ........ . ......... 5
Motion Control Module Test L Alignment Prnccdure.....l8
Speaker Panel a Bass commode Test Procedure .......... 20
Parts List... ........ ......... ...... 21
Service Bulletins ........ . ................... .... ..... 22
Prepared 4/78
Page 3
1-0. TECHNICAL
' SPECIFICATIONS
Driver Compliment: 2 ea. 12" bass drivers
4 ea. 8" midbass drivers
n ea. 4 midrange drivers
3 ea. 2" cone tweeters
2 ea. 1 soft-dome tweeters
Frequency Response: 24H; to 20K2 t 3db
Nominal Impedance: 6 chm:
Maximum Power Input: 35% HMS watts per bhannel
Maximum CUHLLUuVu: r:nc: Ingut: 100 EMS watts below ZOOHZ
Minumum Power Required: 50 EMS watts per channel
Sound Pressure Level: fiOdb at 1 meter on axis with 1 watt
oi input at 1.000 H3
Nation Contral Module:
Input Impedance; 22K ohms
Output Inpcdance: less that 600 ohms
Maximum Output VolLage: 8 volts RMS
Distortion: less that 0.1%
Hum and Noise: less than 100 microvolts
