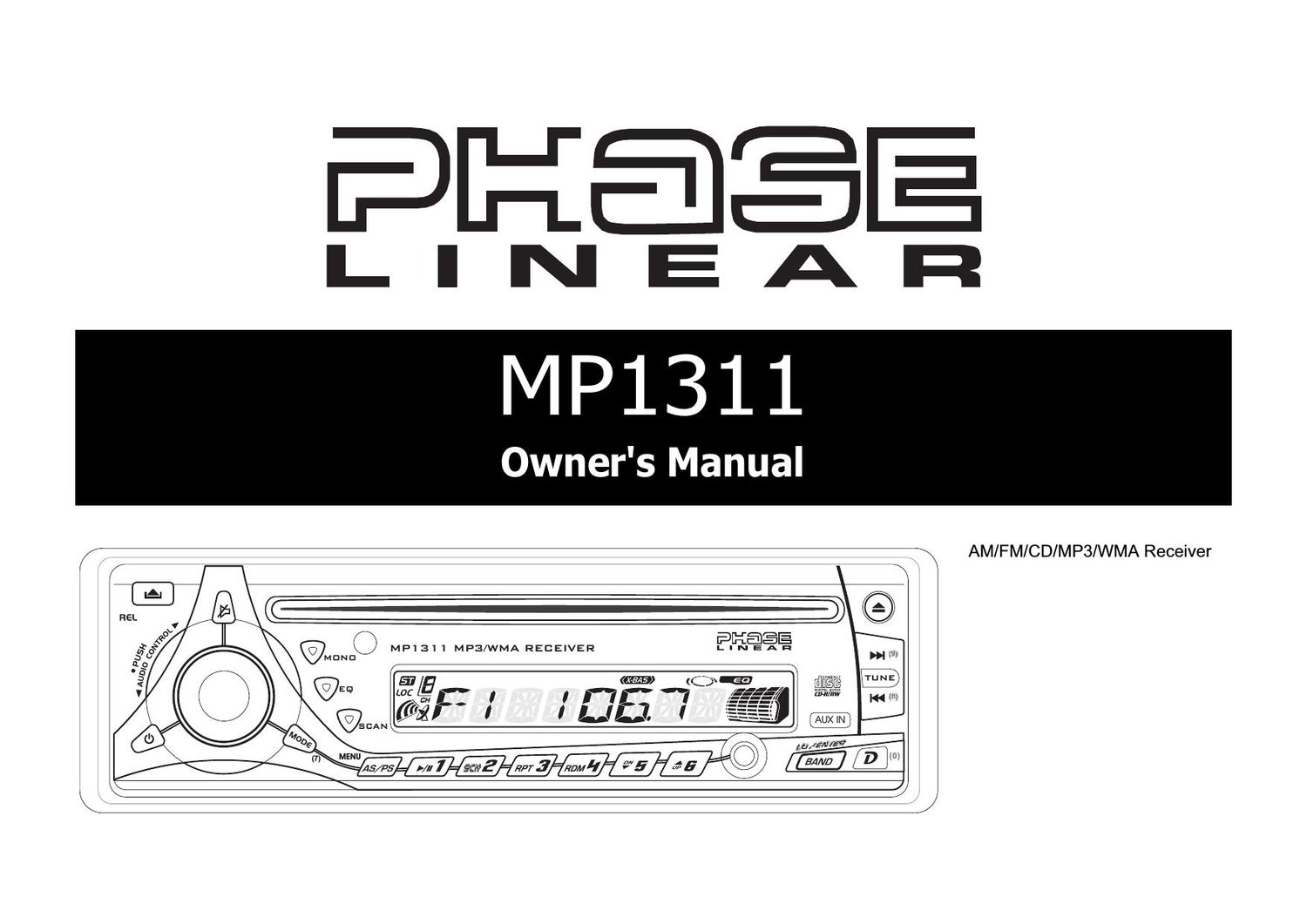

Phase Linear MP 1311 Owners Manual
This is the 24 pages manual for Phase Linear MP 1311 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Phase Linear MP 1311 Owners Manual (Ocr-read)
Page 1
MP1311 2 PREPARATION Getting Started Congratulations on your purchase of the Phase Linear MP1311 Mobile AM/FM/CD/MP3/WMA Receiver. Its a good idea to read all of the instructions before beginning the installation. We recommend having your Phase Linear MP1311 installed by a reputable installation shop. Contents Installation Instructions .............................. 3 Wiring ........................................................ 6 Operating Instructions ............................... 7 Tuner Operation ...................................... 10 CD Player Operation ............................... 12 MP3/WMA Operation .............................. 14 Remote Control ....................................... 18 Care and Maintenance ............................ 19 Troubleshooting....................................... 20 Specifications .......................................... 21 Installation Requirements This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. If you need a kit but cannot locate one, call our customer support line at 1-800-323-4815. (U.S.A. and Canada only.) Tools and Supplies The following tools and supplies are needed to install the radio. - Torx type, flathead and Philips screwdrivers - Wire cutters and strippers - Tools to remove existing radio (screwdriver, socket wrench set or other tools) - Electrical tape - Crimping tool - Volt meter/test light - Crimp connections - 18 gauge wire for power connections - 16-18 gauge speaker wire Speaker Requirements Only connect speakers rated with a load impedance of 4 ohms. Speakers with a load impedance of less than 4 ohms could damage the unit. Disconnect Battery Before you begin, disconnect the battery negative terminal. Toll-Free Installation Assistance If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30 a.m. to 7:00 p.m. EST Monday through Friday and from 9:00 a.m. to 5:00 p.m. EST on Saturday. (U.S.A. and Canada only.)
Page 2
MP13113 INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. Pre-installation 1. Disconnect Battery Before you begin, always disconnect the battery negative terminal. 2.Remove Transport Screws Universal Installation Using Mounting Sleeve 1. Remove the detachable front panel, if it is attached to the chassis, by pushing the Release button. 2. Slide the mounting sleeve off of the chassis if it has not already been removed. If it is locked into position, use the removal keys (supplied) to disengage it. The removal keys are depicted on page 5. 3. Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that there will be sufficient space behind the dashboard for the radio chassis. 4. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary to firmly secure the sleeve to the dashboard. 5. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. 6. Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation. 7. After completing the wiring connections, attach the front panel and turn the unit on to confirm operation (vehicle ignition switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the ignition switch off and proceed with final mounting of the chassis. 8. Carefully slide the radio into the mounting sleeve, making sure it is right-side-up, until it is fully seated and the spring clips lock it into place. D D R E IVER
Page 19
MP1311 20 TROUBLESHOOTING Problem Cause Corrective Action Does not operate (display does not light)No power to yellow wire; no power to red wire Check connection with test light; check vehicle fuse with test light. Inline fuse blown Replace fuse. No power to unit Inline fuse blown Check/replace fuse. Not all speakers operate Incorrect splices or connections Check all splices and connections. Speaker wires shorting to chassis ground or to each otherCheck splices; insulate all bare wires. Blows fuses Power wire shorting to ground Make sure wire is not pinched. Speaker wires shorting to ground Make sure wire is not pinched. Incorrect fuse or fuse too small Install fuse of correct rating. CD skips too much Receiver mount is not solid or backstrap is not secureCheck mounting and backstrap; tighten if needed.
