Phase Linear Andromeda III Service Manual

This is the 23 pages manual for Phase Linear Andromeda III Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 23
Phase Linear Andromeda III Service Manual

Extracted text from Phase Linear Andromeda III Service Manual (Ocr-read)

Page 1

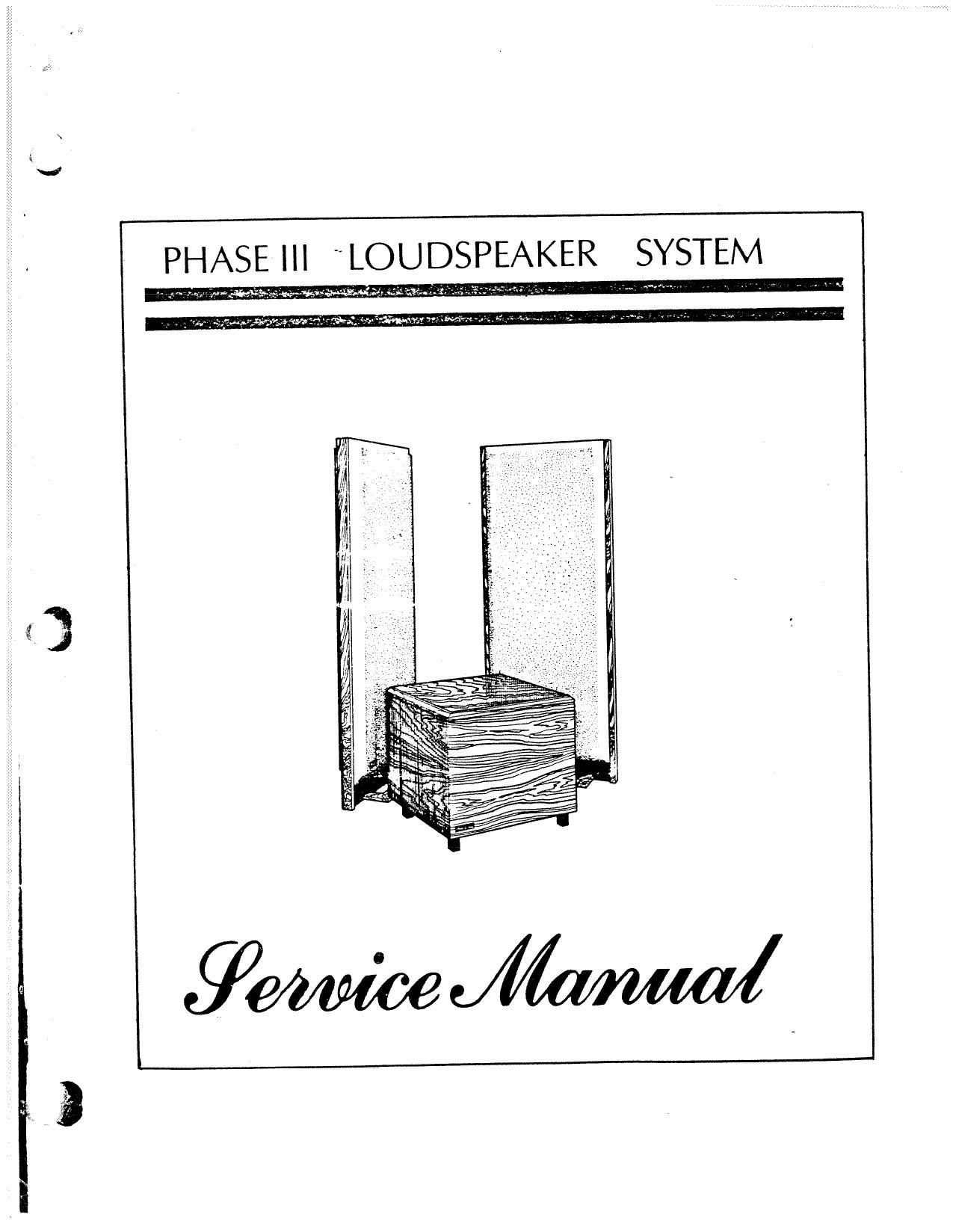

" LOUDSPEAKER SYSTEM

PHAS Ill

Page 2

CONTENTS
1-0. Specifications.. ........ .. ......... ............ ...... 3
2-0. Circuit Description..,......................... ...... 4
3-0. Schematics and Design History............... ......... 5

4-0. Motion Control Module Test & Alignment Procedure.....18

5-0. Speaker Panel & Bass Commode Test Procedure... ..... ..20
6-0. Parts List.............;.. .......... .........;.......21
7-0. Service Bulletins.............. ...... .Lm.............22

uwx

Prepared 4/78
