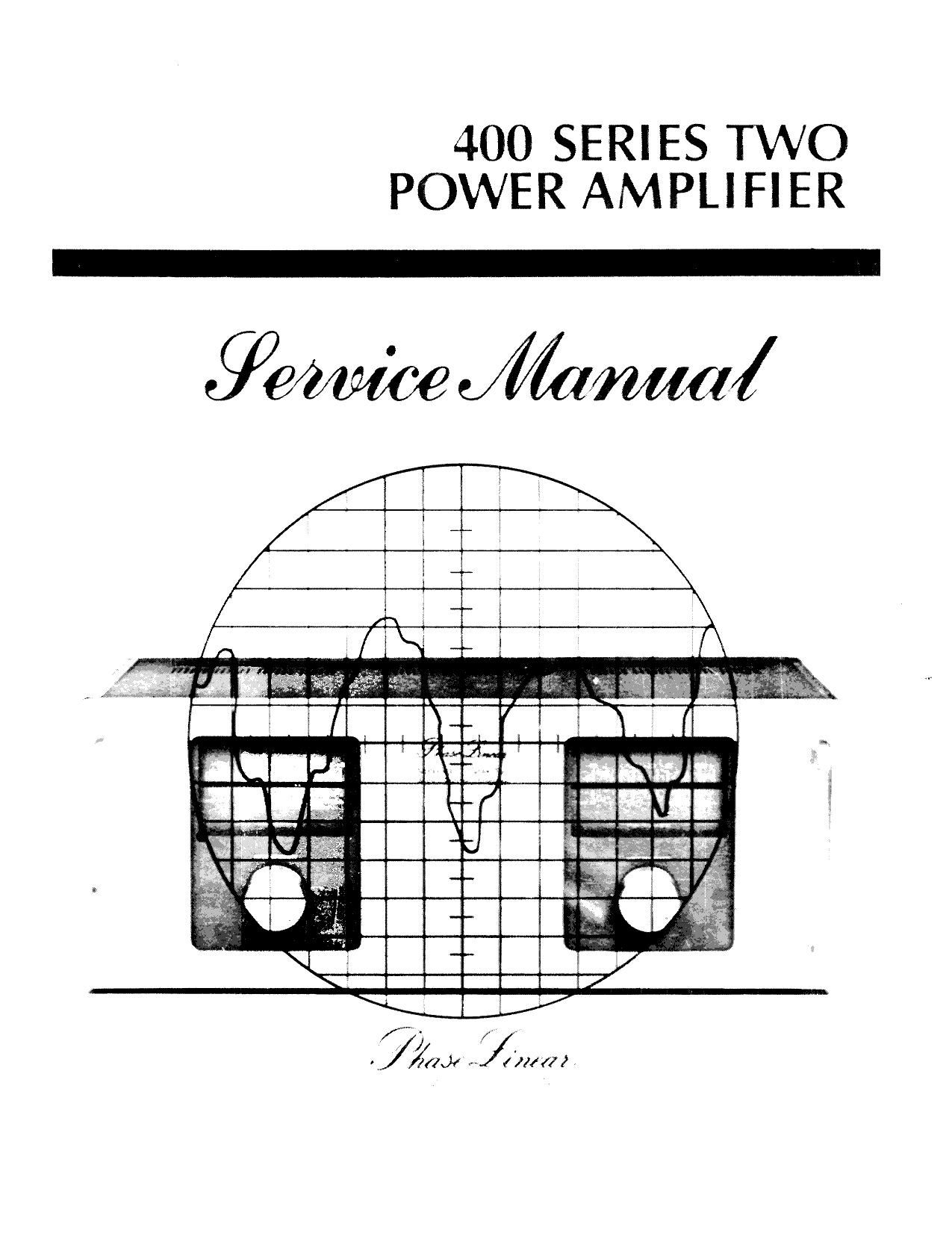

Page 1
400 SERIES TWO
POWER AMPLIFIER
Page 2
400 SERIES TWO POWER AMPLIFIER
SERVICE MANUAL
CONTENTS
l-O. Technical Specifications ........... 4
2-0. Schematics and Diagrams ............ 5
3-0. Circuit Descriptions ............... 12
4-0. Disassembly Procedure .............. 14
5-0. Test Procedure ..................... 17
6-0. Troubleshooting Guide .............. 19
7-0. Parts List ......................... 25
8-0. Service Bulletins and Supplements .. 26
***************CAUTION********************
THIS MANUAL IS INTENDED FOR USE ONLY BY QUALIFIED TECH-
NICAL SERVICE PERSONNEL. HAZARDOUS VOLTAGES MAY BE
ENCOUNTERED IN THE TEST AND SERVICING OF THE 400 SERIES
TWO. USE EXTREME CAUTION: READ ALL INSTRUCTIONS CAREFULLY.
