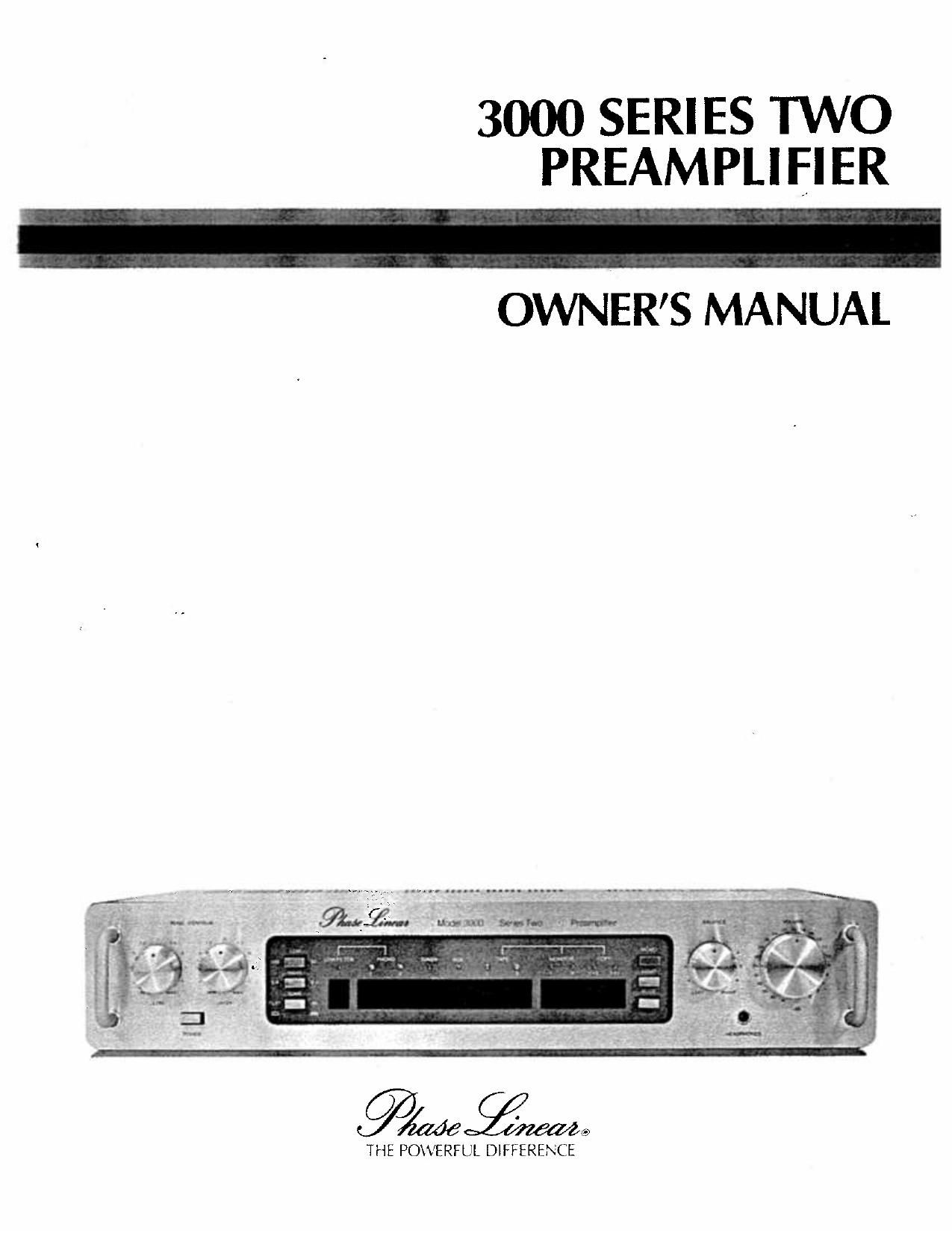

Page 1
3000 SERIES TWO
PREAMPLI Fl ER
OWNERS MANUAL
@wiima
THE POWERFUL DIFFERENCE
Page 10
R.
FRONT PANEL CONTROLS
LOW FREQUENCY TONE CONTOUR:
Use to boost (CW) or cut (CCW) low
frequencies (bass). frequencies (treble).
.,,
TONE CONTOUR SWITCH:
Push in to activate Tone Contour
circuits; leave out to defeat. Out
position bypasses all Tone Contour
circuitry
POWER SWITCH:
Push-push type switch used to turn
the Model 3000 on and off; also
controls switching of the AC
accessory outlets
HIGH FREQUENCY TONE CONTOUR:
Use to boost (CW) or cut (CCW) high
LOW FREQUENCY
TURNOVER SWITCH:
Controls the low frequency point at
which the low frequency tone contour
circuits begin to take effect. in for
50Hz turnover; out for 150Hz
turnover.
HIGH FREQUENCY
TURNOVER SWITCH:
Controls the high frequency point
at which the high frequency tone
contour circuits beginto take effect.
in for 2l
LOW FILTER TACTILE SWITCH:
Pushbutton control of the infrasonic
filter for elimination of rumble
frequencies Amber LED indicator
lights upon selection
Page 24
@wfimo
THE POWERFUL DIFFERENCE
20121 48th Avenue West, Lynnwood. Washington 98036 (206) 774-8848
