Peavey Vyper 30 input
This is the 3 pages manual for Peavey Vyper 30 input.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Peavey Vyper 30 input (Ocr-read)
Page 1
Revision Description
INDEX
DESCRIPTION
Note: All thru hole Resistors are 1/4 Watt unless otherwise indicated.
All SMT 1206 Resistors are 1/4 Watt.
All SMT 0805 Resistors are 1/10 Watt.
Note Capacitor Values are indicated as Follows:
val P = pF (picoFarads) val * 10 exp-12
val N = nF (nanoFarads) val * 10 exp-9 (1 N=1000pF, 100N=0.1uF)
val U = uF (microFarads) val * 10 exp»6
C4
||
tOONI Isov
05
\ | +
50v / |22U
TO DSP INPUT SECTION
Patents:
Copyright Peavey Electronics Corporation 2008.
*Company Proprietary lnformation*
PEA/EV
P. O. Box 2898
Meridian, MS 39301

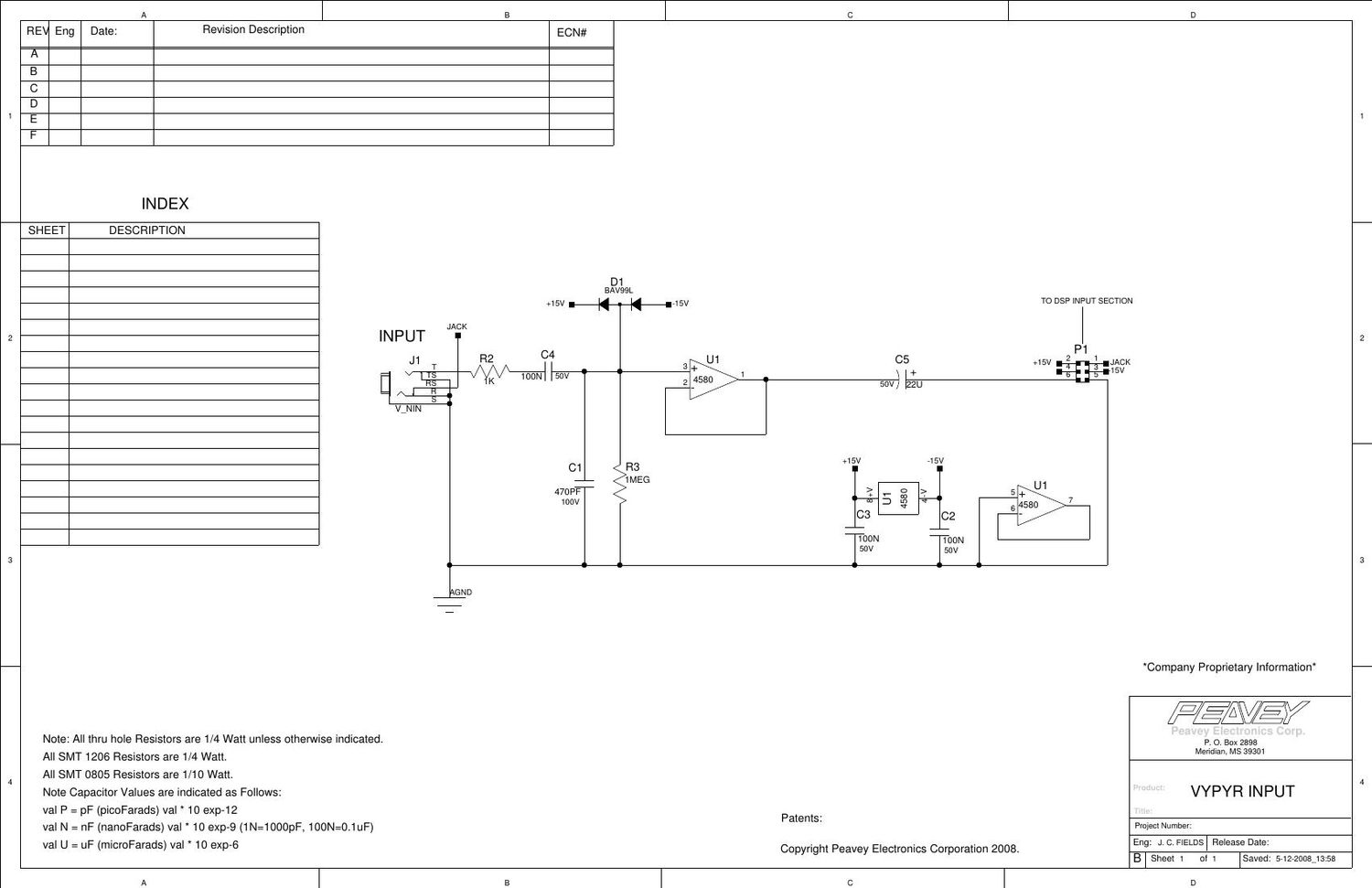

VYPYRINPUT
Project Number:
Eng: J. C. FIELDSI Release Date:
Bl Sheet 1 of 1 lSaved: 57127200871358
